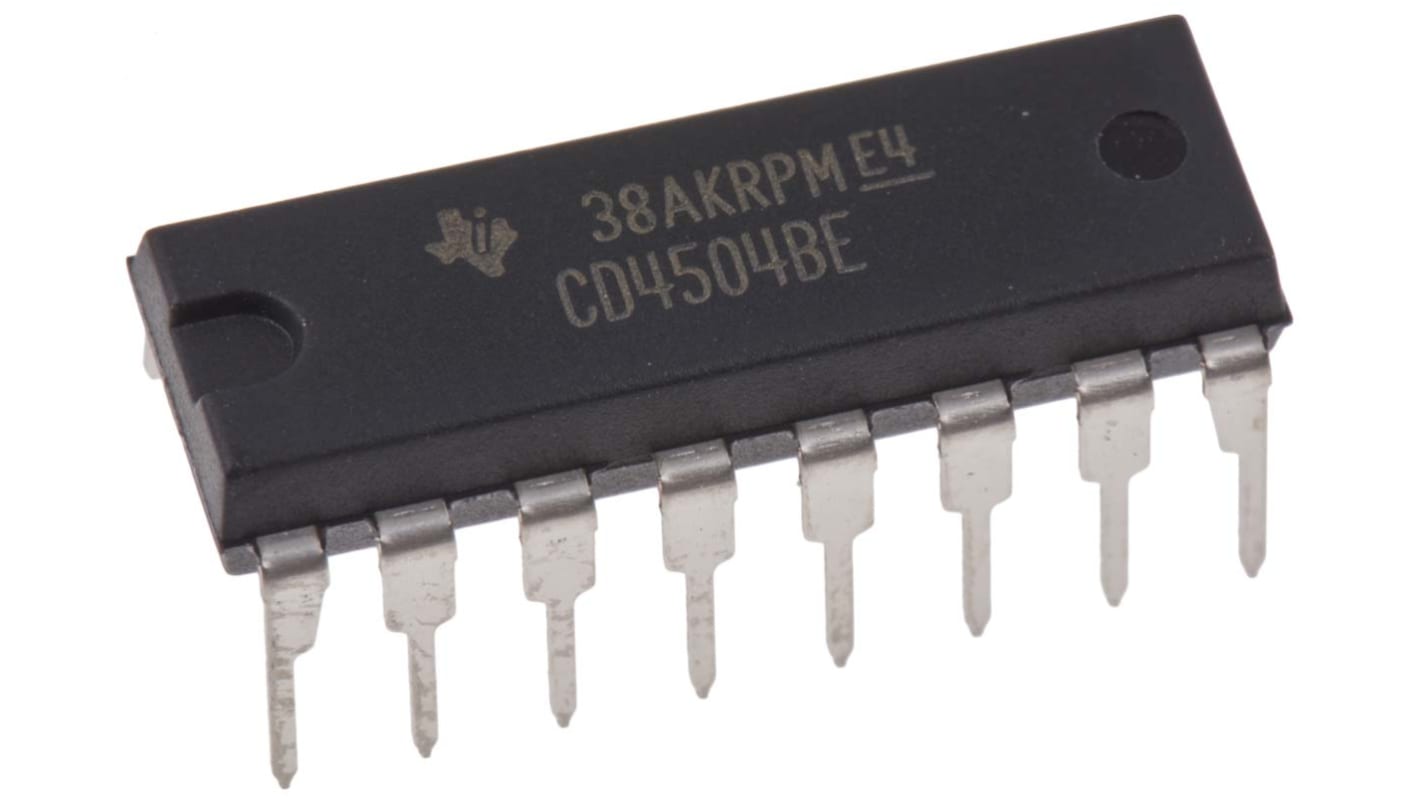

Texas Instruments CD4504BE, Voltage Level Shifter Voltage Level Shifter CMOS, TTL to CMOS, 16-Pin PDIP
- RS Stock No.:
- 709-2545
- Mfr. Part No.:
- CD4504BE
- Brand:
- Texas Instruments
40 In Global stock for delivery within 5 working day(s)
180 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 10)
$0.815
(exc. GST)
$0.897
(inc. GST)
Units | Per unit | Per Pack* |
10 - 40 | $0.815 | $8.15 |
50 + | $0.672 | $6.72 |
*price indicative |
- RS Stock No.:
- 709-2545
- Mfr. Part No.:
- CD4504BE
- Brand:
- Texas Instruments
Technical data sheets
Legislation and Compliance
Product Details
4000 Series Inverters & Buffers, Texas Instruments
Texas Instruments range of Inverters and Buffers from the 4000 Series CMOS Logic Family
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
Wide operating voltage range: 3 to 18V
Specifications
Attribute | Value |
---|---|
Logic Family | 4000 |
Mounting Type | Through Hole |
Package Type | PDIP |
Pin Count | 16 |
Dimensions | 19.3 x 6.35 x 4.57mm |
Logic Function | Voltage Level Shifter |
Maximum Low Level Output Current | 4.2mA |
Maximum High Level Output Current | -4.2mA |
Translation | CMOS, TTL to CMOS |
Maximum Propagation Delay Time @ Maximum CL | 550 ns @ 15 V |
Maximum Operating Supply Voltage | 18 V |
Maximum Operating Temperature | +125 °C |
Minimum Operating Supply Voltage | 5 V |
Minimum Operating Temperature | -55 °C |
