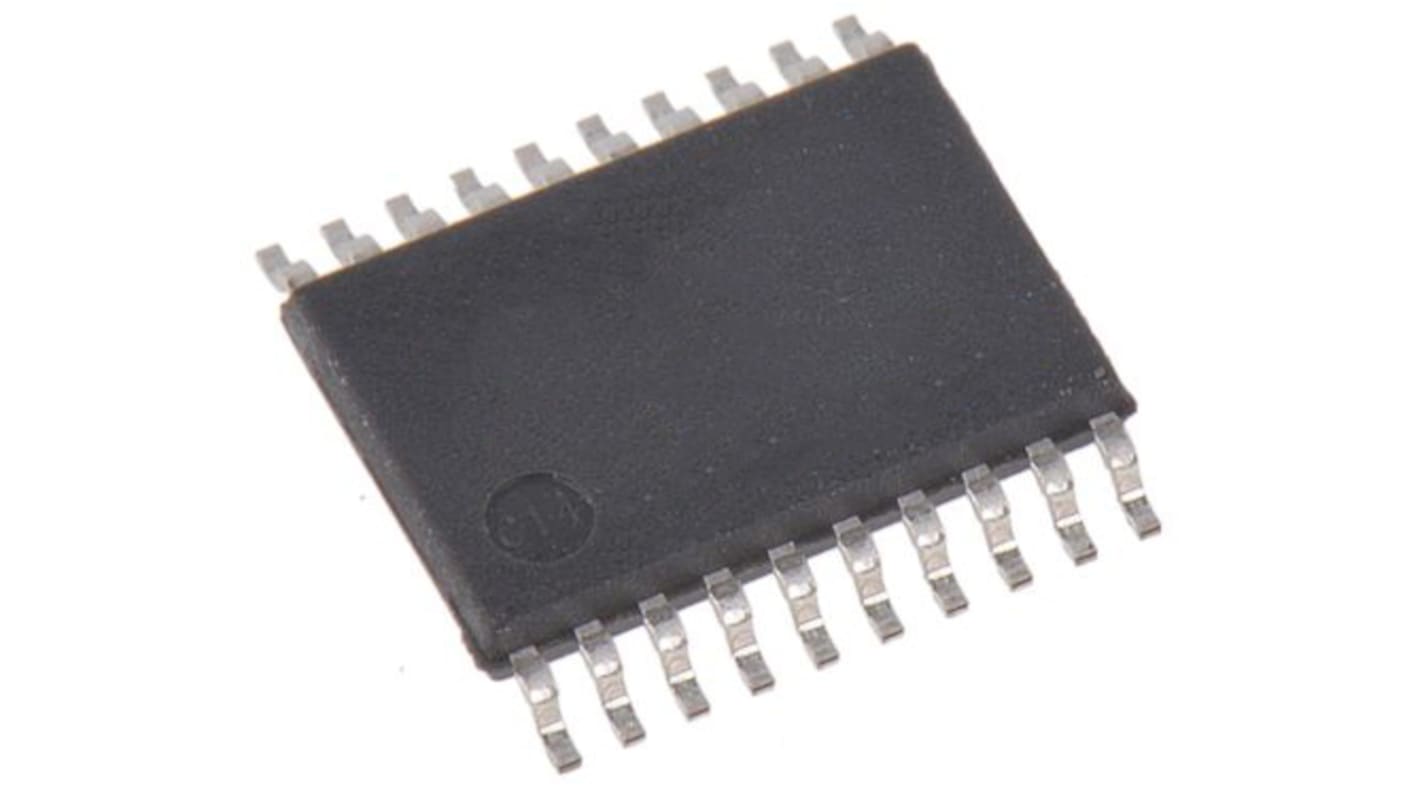

ON Semiconductor 74VHC244MTCX, Voltage Level Shifter Buffer 2, 20-Pin TSSOP
1975 Delivery within 8 working days
Price (ex. GST) Each (In a Pack of 25)
$0.529
(exc. GST)
$0.582
(inc. GST)
| units | Per unit | Per Pack* |
| 25 - 25 | $0.529 | $13.225 |
| 50 - 75 | $0.51 | $12.75 |
| 100 - 225 | $0.484 | $12.10 |
| 250 - 975 | $0.47 | $11.75 |
| 1000 + | $0.40 | $10.00 |
| *price indicative | ||
Added
Packaging Options:
- RS Stock No.:
- 186-8357
- Mfr. Part No.:
- 74VHC244MTCX
- Manufacturer:
- ON Semiconductor
| Attribute | Value |
| Logic Family | VHC |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Number of Elements per Chip | 2 |
| Pin Count | 20 |
| Output Type | 3 State |
| Dimensions | 6.6 x 4.5 x 1.05mm |
| Logic Function | Buffer |
| Maximum Low Level Output Current | 8mA |
| Maximum High Level Output Current | -8mA |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Supply Voltage | 2 to 5.5 V |
| Maximum Propagation Delay Time @ Maximum CL | 13.5 ns @ 50 pF |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 2 V |
| Minimum Operating Temperature | -40 °C |
