- RS Stock No.:
- 124-3865
- Brand:
- RS PRO
122 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$34.56
(exc. GST)
$38.02
(inc. GST)
Units | Per unit |
1 - 4 | $34.56 |
5 - 9 | $33.97 |
10 + | $33.17 |
- RS Stock No.:
- 124-3865
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

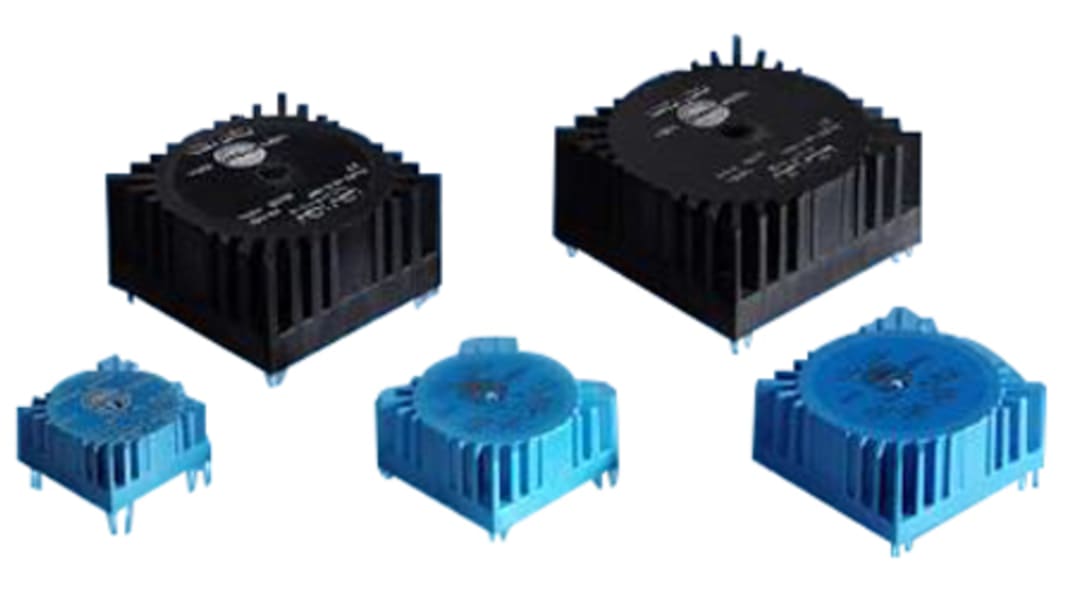

RS Pro Toroidal PC Transformer 1.6VA- 25VA
RS Pro toroidal PC transformers are high efficiency and low profile being a small size and low weight. These Toroidal transformers have low iron loss and low induced noise. Dual 115 V primaries for parallel or series connections.
Features
Lower stray field
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
Reduced standby current
Test voltage primary- secondary 4.0 KV
Ease of mounting- M4 Centre bush
Ambient operating temperature: +60°C Max
Fully RoHS & REACH compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Encapsulated – Toroidal
Note
Fixing screws not provided
Specifications
Attribute | Value |
---|---|
Primary Voltage Rating | 2 x 115V ac |
Secondary Voltage Rating | 2 x 18V |
Power Rating | 10VA |
Secondary Current | 278mA |
Height | 26mm |
Weight | 252g |
Dimensions | 55 x 55 x 26mm |
Maximum Operating Frequency | 50Hz |
Mounting Type | Through Hole |
Maximum Temperature | +60°C |
Isolation Voltage | 4kV |
