- RS Stock No.:
- 787-4820
- Mfr. Part No.:
- 7101SYZQE
- Brand:
- C & K
300 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$11.34
(exc. GST)
$12.47
(inc. GST)
Units | Per unit |
1 - 24 | $11.34 |
25 - 49 | $11.24 |
50 - 99 | $11.02 |
100 - 249 | $10.76 |
250 + | $10.45 |
- RS Stock No.:
- 787-4820
- Mfr. Part No.:
- 7101SYZQE
- Brand:
- C & K
Technical data sheets
Legislation and Compliance
Product Details

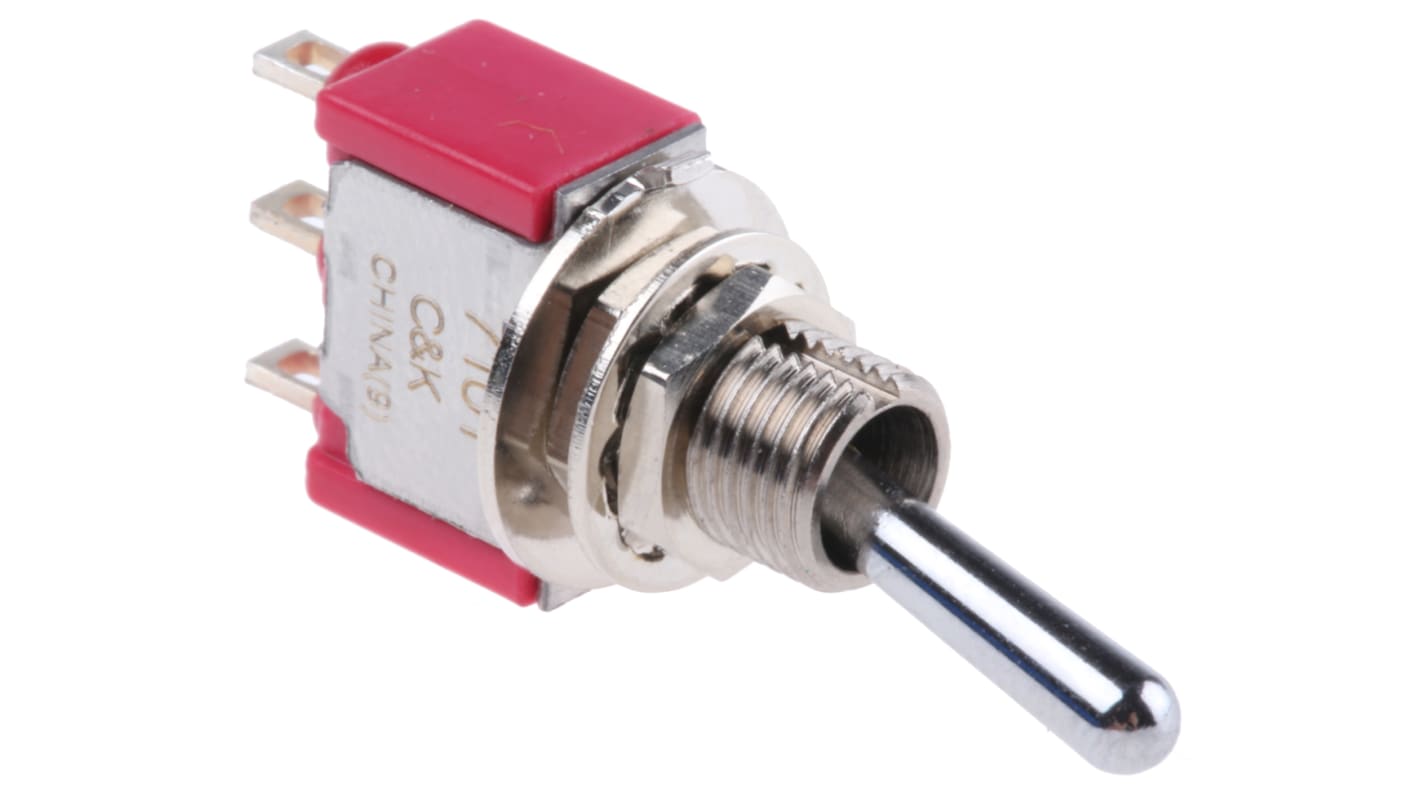

7000 Series Switches
C&K Series 7000 toggle switches have epoxy sealed terminals which makes them suitable for bottom wash cleaning.
Miniature switches for panel
Brass actuator and Nylon 6.6
(UL 94 V-0) case
Silver contacts
Panel cut-out 9 mm
Brass actuator and Nylon 6.6
(UL 94 V-0) case
Silver contacts
Panel cut-out 9 mm
Note
For biased switches '(on)' refers to momentary 'on' position
Approvals
UL; CSA
Specifications
Attribute | Value |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Switch Operation | On-None-On |
Contact Current Rating | 5 A @ 28 V dc |
Mounting Type | PCB |
Terminal Type | Solder |
Actuator Length | 11.43mm |
Actuator Material | Chrome Plated Brass |
Contact Resistance | 0.01Ω |
Contact Material | Silver Plated |
Operating Temperature Range | -30 → +85°C |
Standards Met | RoHS |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -30°C |
