- RS Stock No.:
- 665-657
- Mfr. Part No.:
- 631NH/2
- Brand:
- APEM
14 In AU stock for next working day delivery
1452 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
Was $11.34
You pay
$10.75
(exc. GST)
$11.83
(inc. GST)
Units | Per unit |
1 - 24 | $10.75 |
25 - 49 | $10.64 |
50 - 99 | $10.38 |
100 - 249 | $10.11 |
250 + | $9.85 |
- RS Stock No.:
- 665-657
- Mfr. Part No.:
- 631NH/2
- Brand:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

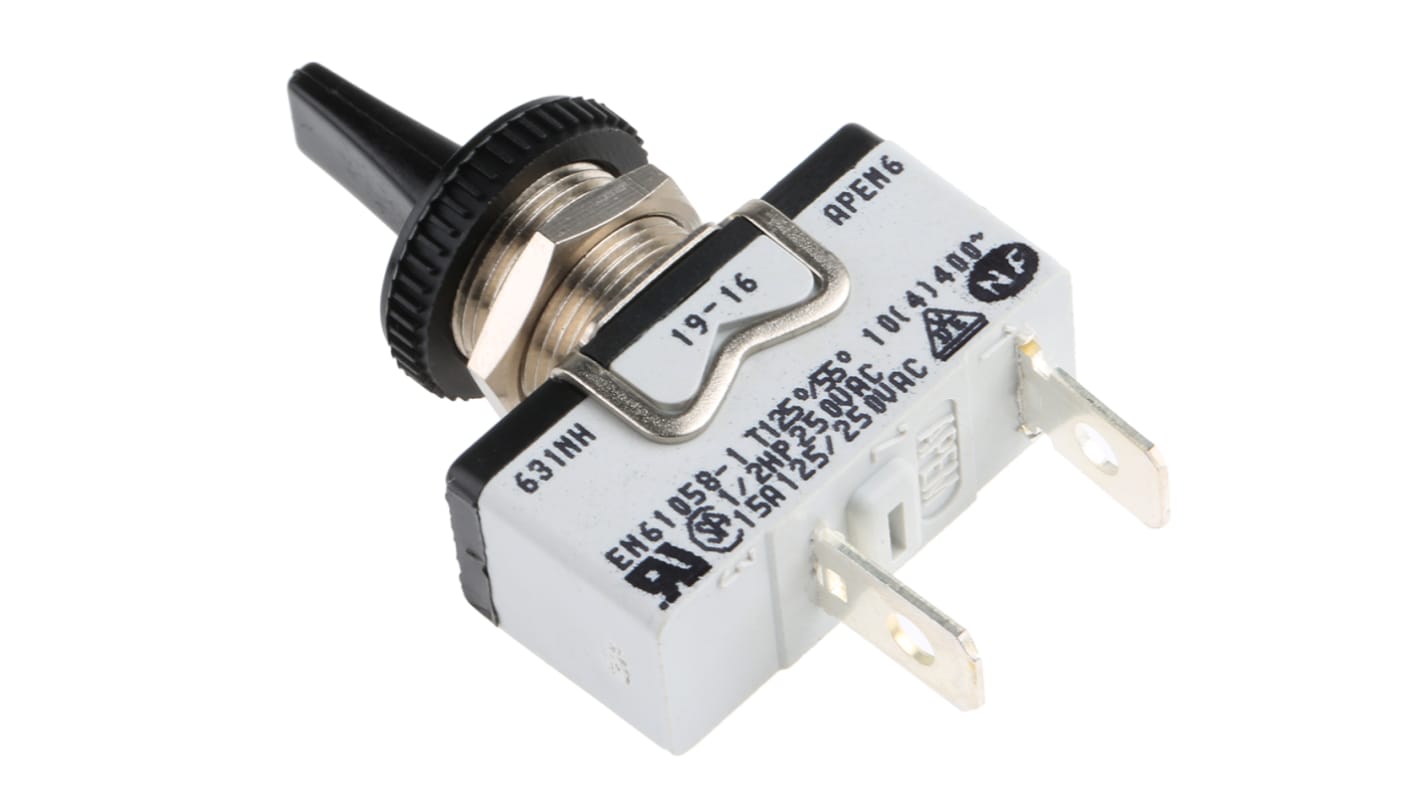

Toggle Switches, Std, 15A Flat Insulated Lever
Single and double pole switches with a choice of flat insulated or traditional metal levers.
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts
Note
All have a contact resistance of 10mΩ or less
For biased switches '(on)' refers to momentary 'on' position
For biased switches '(on)' refers to momentary 'on' position
Approvals
UL; CSA
Specifications
Attribute | Value |
---|---|
Contact Configuration | SP |
Switch Operation | On-Off |
Contact Current Rating | 10 A @ 24 V dc |
Mounting Type | Panel Mount |
Terminal Type | Tab |
Actuator Length | 13.5mm |
Actuator Material | Polyamide |
Contact Material | Silver Nickel Alloy |
Contact Resistance | 0.01Ω |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | -20 → +55°C |
Maximum Operating Temperature | +55°C |
