C & K Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal

RS Stock No.:: 516-176
Mfr. Part No.:: E101MD9V3GE
Brand:: C & K

C & K Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal

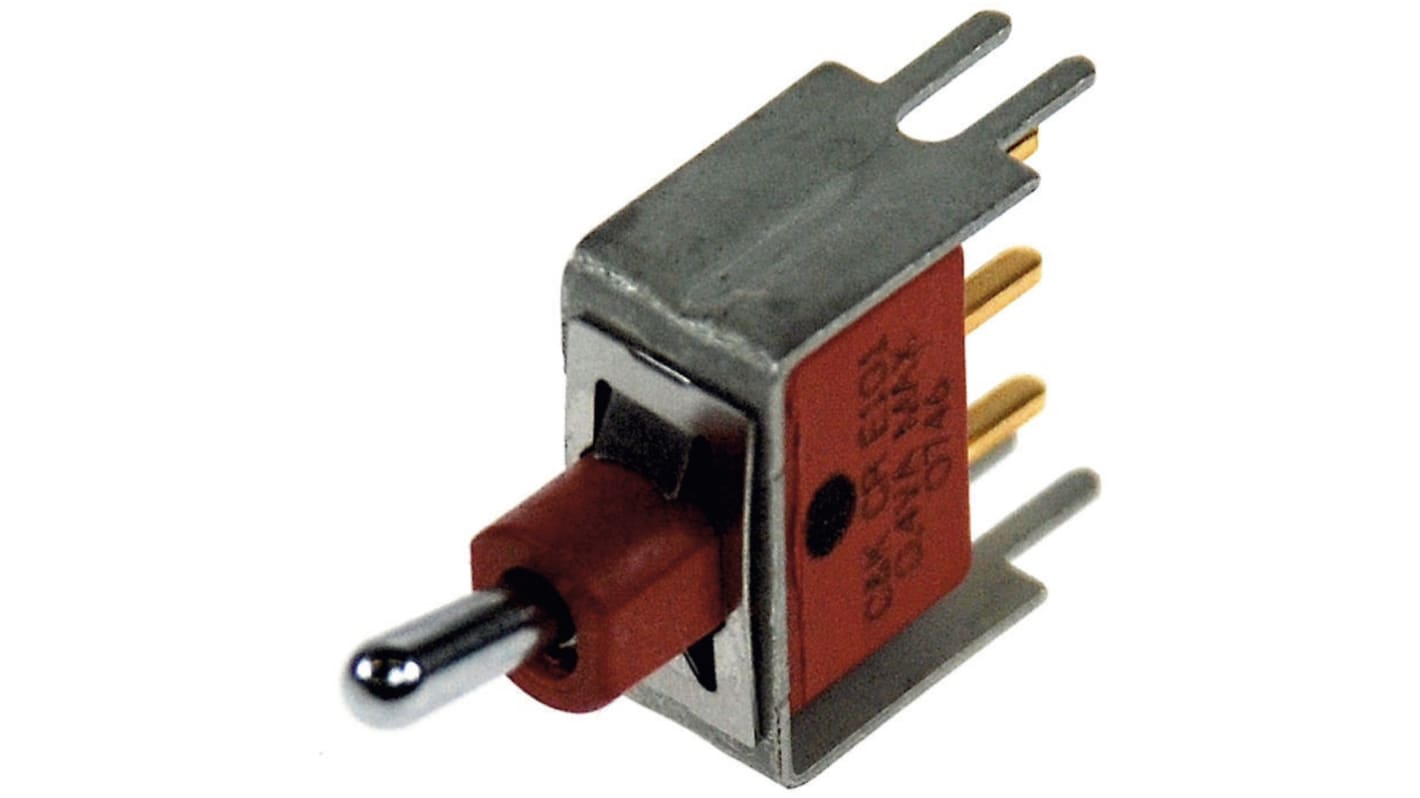

This image is representative of the product range

233 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$18.10

(exc. GST)

$19.91

(inc. GST)

Units	Per unit
1 - 49	$18.10
50 - 99	$17.64
100 - 249	$17.23
250 - 499	$16.73
500 +	$16.30

RS Stock No.:: 516-176
Mfr. Part No.:: E101MD9V3GE
Brand:: C & K

Technical data sheets

E Series Sealed Miniature Toggle Switches Data Sheet

Legislation and Compliance

Product Details

E Series - IP57 Sealed (PCB mount)

Waterproof switches with a threaded bush for panel mounting
PCB mount
Gold over Silver contacts
Brass actuator and Glass Filled Nylon 6//6 case
Dimensions: Height: 12.7mm, Depth 34.29mm, Depth behind panel: 15.24mm, Actuator length 7.62 mm

Approvals

UL; CSA

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Contact Configuration	Single Pole Double Throw (SPDT)
Switch Operation	On-On
Contact Current Rating	7.5 A @ 28 V dc
Mounting Type	PCB
Terminal Type	Through Hole
IP Rating	IP57
Actuator Length	6.86mm
Actuator Material	Brass
Contact Resistance	0.01Ω
Contact Material	Gold Over Nickel Plated Coin Silver
Minimum Operating Temperature	-30°C
Maximum Operating Temperature	+85°C
Standards Met	RoHS
Operating Temperature Range	-30 → +85°C
