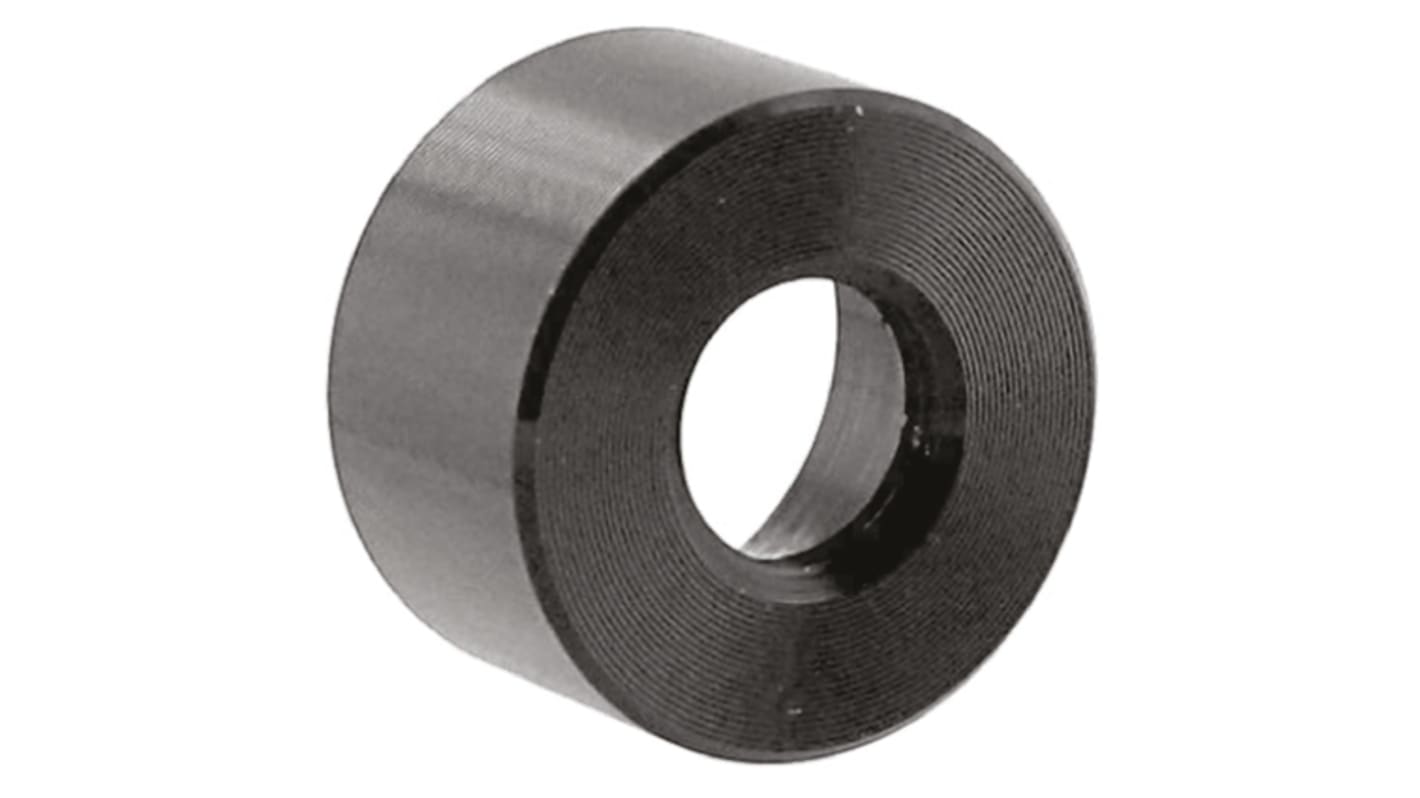

Toggle Switch Guard for use with C12 Cap, C22 Cap

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

TE Connectivity Panel Mounting Miniature Pushbutton - MPS Series

MPS Series panel mounting miniature pushbuttons with a snap-action mechanism and brass gold plated SPDT (MPS1) or DPDT (MPS2) break-before-make contacts with a rating of 60 mA at 30 Vdc . These MPS series miniature pushbuttons have brass nickel plated 8mm extended actuators with On-On or On-(On) switching functions, a 1/4-40 threaded bushing and are available with PCB mounting pins or wire lugs.
Black, Green or Red Cap Supplied separately - see essential accessories

Specifications
Attribute Value
Accessory Type Guard
For Use With C12 Cap, C22 Cap
37 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 3.50
(exc. GST)
$ 3.85
(inc. GST)
units
Per unit
1 - 9
$3.50
10 - 24
$3.45
25 - 49
$3.39
50 - 149
$3.35
150 +
$3.25
