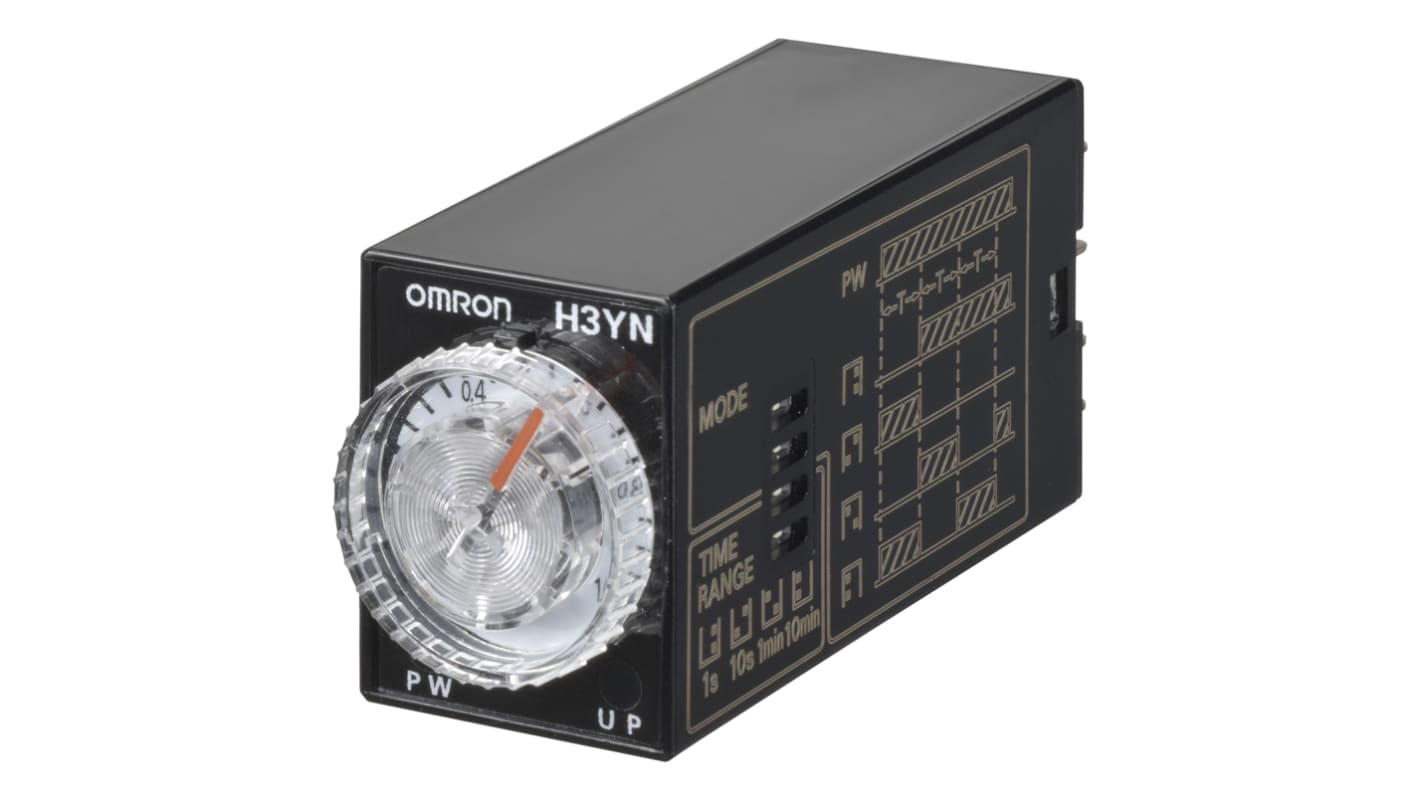

Omron H3YN Series Panel Mount Timer Relay, 100 → 120V ac, 4-Contact, 0.1 s → 10min, DPDT

RS Stock No.:: 106-6248
Mfr. Part No.:: H3YN-2-B AC100-120
Brand:: Omron

Omron H3YN Series Panel Mount Timer Relay, 100 → 120V ac, 4-Contact, 0.1 s → 10min, DPDT

On back order for despatch 03/07/2024, delivery within 10 working days from despatch date.

Added

Price (ex. GST) Each

$94.49

(exc. GST)

$103.94

(inc. GST)

Units	Per unit
1 +	$94.49

RS Stock No.:: 106-6248
Mfr. Part No.:: H3YN-2-B AC100-120
Brand:: Omron

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Miniature Multi function Solid State Timer- H3YN Series

Miniature timers with multiple time ranges and operating modes.

• 8 or 14-pin models available
• Multiple operating modes
• Black design
• Power supply terminals on top and contact output terminals on bottom
• Pin configuration compatible with MY power relay
• Wide supply voltage range
• Plug-in terminal

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Supply Voltage	100 → 120V ac
Mounting Type	Panel Mount
Mode of Operation	Delay ON, Flicker OFF Start, Flicker ON Start
Time Range	0.1 s → 10min
Number of Contacts	4
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Minutes, Seconds
Maximum Current	5A
Maximum Voltage	250V ac
Switch Configuration	DPDT
Terminal Type	Push In
Power Supply	External
Width	56.6mm
Maximum Operating Temperature	+55°C
Length	21.5mm
Depth	28mm
Series	H3YN
Contact Material	Silver
Minimum Operating Temperature	-10°C
