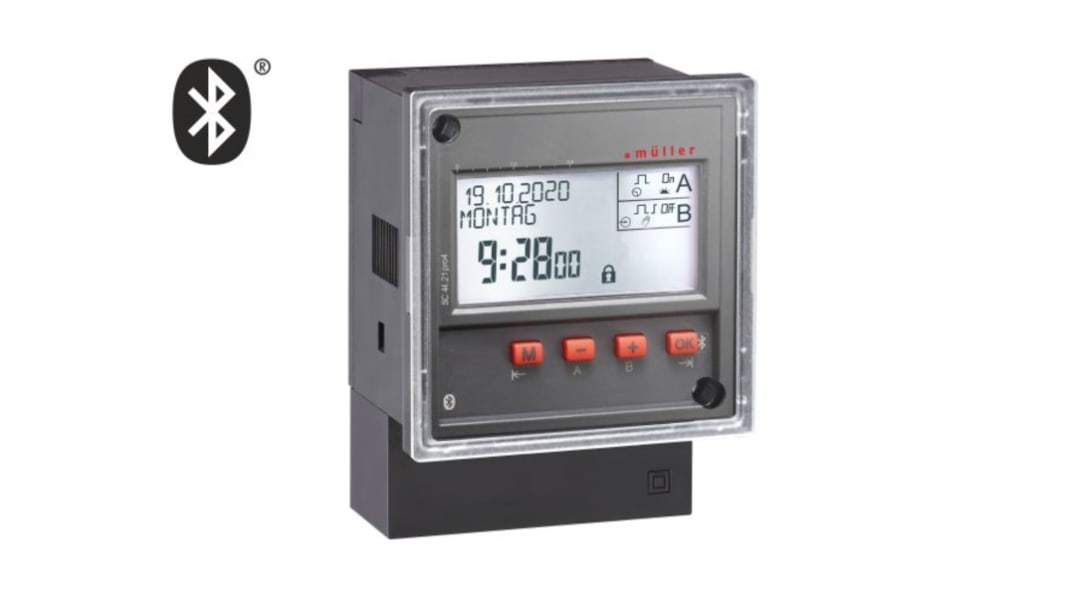

Muller Digital Time Switch 230 V ac, 1-Channel

  • RS Stock No. 674-1814
  • Mfr. Part No. SC 44.11 pro 230V
  • Manufacturer Muller
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

7 Day 1 and 2 Channel Digital - SC44 pro

Text based menu and programming
LCD-Backlight
Elapsed time and pulse counter
Plug for DataKey DKpro (programmable via PC interface)
Security by PIN-Code
Permanent by date / holiday function
Unrestricted block programming
Manual permanent mode
Manual override
Automatic sorting of switching times on readout
Automatic daylight saving time
Can be programmed with supply disconnected (6 years battery reserve)

Digital

Specifications
Attribute Value
Supply Voltage 230 V ac
Type Digital
Number of Channels 1
Units Measured Minutes
Segment Length 1 min
Terminal Type Screw
Contact Configuration SPDT
Height 94.5mm
Depth 72mm
Memory Spaces 30
Battery Life 10yr
On back order for despatch 30/01/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each
$ 136.03
(exc. GST)
$ 149.63
(inc. GST)
units
Per unit
1 - 4
$136.03
5 - 9
$132.63
10 +
$129.14
