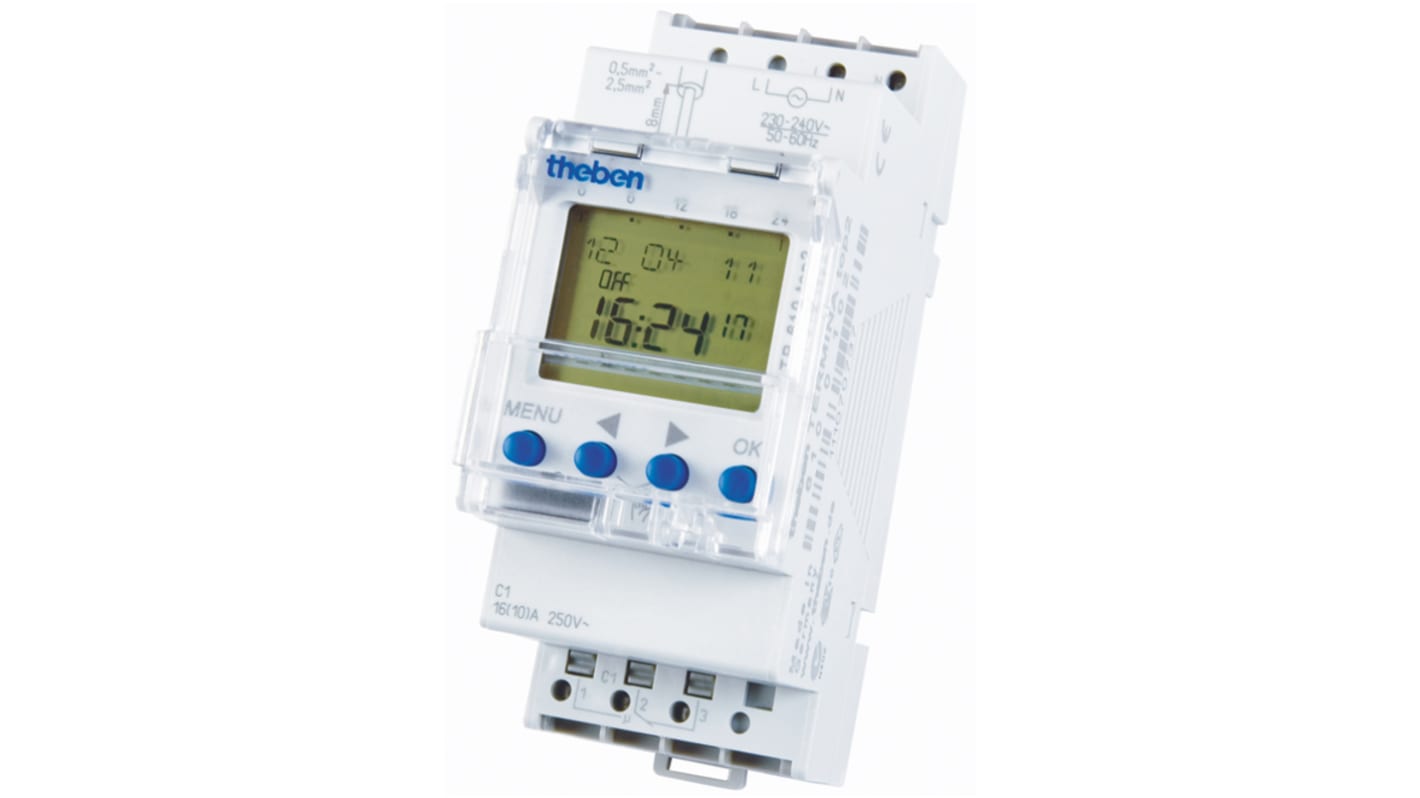

Theben Digital DIN Rail Time Switch 120 V ac, 1-Channel
- RS Stock No.:
- 138-5669
- Mfr. Part No.:
- TR610 top 2 120V UL
- Brand:
- Theben
6 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$237.41
(exc. GST)
$261.15
(inc. GST)
| Units | Per unit |
| 1 + | $237.41 |
- RS Stock No.:
- 138-5669
- Mfr. Part No.:
- TR610 top 2 120V UL
- Brand:
- Theben
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Weekly Timeswitch- TR610 Top 2
TR 610 top 2 digital time switches with weekly programming.
Features and Benefits
1 Channel
DuoFix spring terminals for 2 conductors each
Text-orientated user guidance in display
- Preset date and time
- Fully operable without mains connection
56 Memory locations
Interface for OBELISK top2 memory card (PC programming)
- 2 insertable switching programs
- Copying programs
- Storing programs
10-Year power reserve (lithium battery)
Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
On-Off switching times
Switching preselection
Permanent switching ON/OFF
Integrated operating hour counter with reset option and service function for monitoring maintenance intervals
Holiday program
Display back light (can be turned off)
PIN coding
Automatic summer/winter time changeover
- Can be deactivated
- Date rule options are already stored for Europe, USA and other countries
- Own data rule options or changeover around set dates are available
DuoFix spring terminals for 2 conductors each
Text-orientated user guidance in display
- Preset date and time
- Fully operable without mains connection
56 Memory locations
Interface for OBELISK top2 memory card (PC programming)
- 2 insertable switching programs
- Copying programs
- Storing programs
10-Year power reserve (lithium battery)
Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
On-Off switching times
Switching preselection
Permanent switching ON/OFF
Integrated operating hour counter with reset option and service function for monitoring maintenance intervals
Holiday program
Display back light (can be turned off)
PIN coding
Automatic summer/winter time changeover
- Can be deactivated
- Date rule options are already stored for Europe, USA and other countries
- Own data rule options or changeover around set dates are available
Remotely Programmable
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 120 V ac |
| Type | Digital |
| Number of Channels | 1 |
| Units Measured | Days, Hours, Minutes, Seconds |
| Segment Length | 1 min |
| Contact Configuration | SPDT |
| Height | 90.1mm |
| Depth | 69.2mm |
| Memory Spaces | 56 |
| Battery Life | 10yr |
