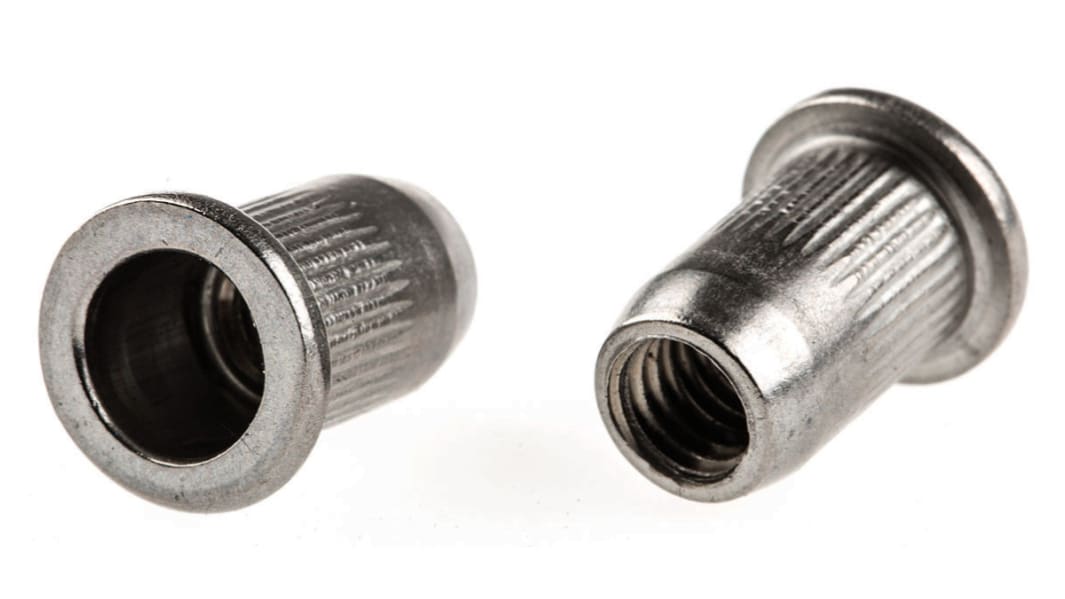

Böllhoff Plain, M6 Stainless Steel Threaded Insert, 12mm diameter 9mm Depth 13.3mm

  • RS Stock No. 212-682
  • Mfr. Part No. 23306060015/01
  • Manufacturer Böllhoff
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Rivkle Rivet Tool and Rivets

Our range of Rivet Nuts from Bollhoff are a multipurpose solution for adding a load carrying internal or external thread to a thin work piece, and can be installed into plastic and all metals.

Examples of application:

To build desk frames
Allows for full automation products in the automatic industry, in the production of car doors

Specifications
Attribute Value
Thread Size M6
Flange Diameter 12mm
Fixing Hole Diameter 9mm
Body Depth 13.3mm
Material Stainless Steel
Finish Plain
Thickness of Material Maximum 1.5mm
Thickness of Material Minimum 0.8mm
2 : Next working day (AU stock)
43 : 5 working days (Global stock)
Price (ex. GST) 1 Bag of 100
$ 145.89
(exc. GST)
$ 160.48
(inc. GST)
Bag(s)
Per Bag
Per unit*
1 +
$145.89
$1.459
*price indicative
