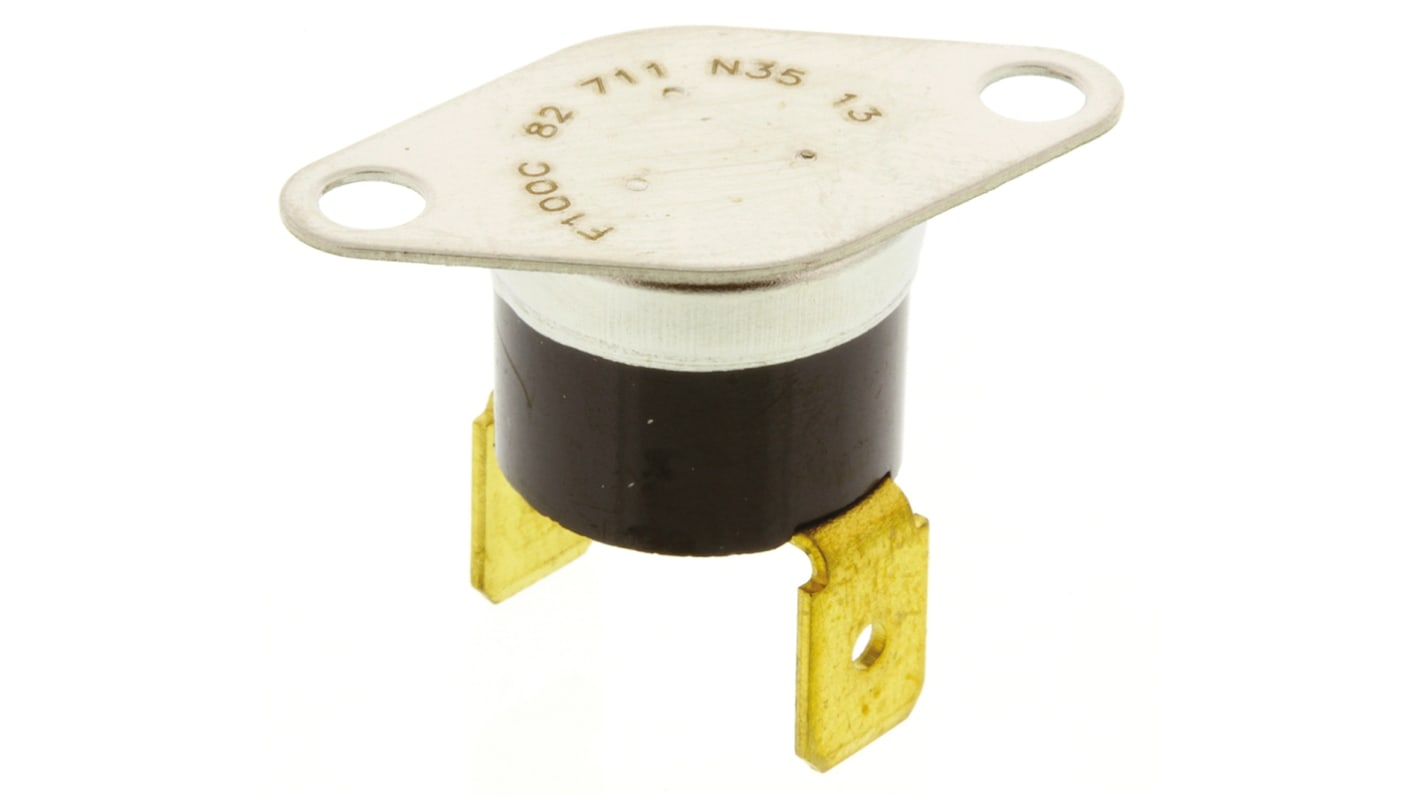

Honeywell Bi-Metallic Thermostat, Opens at +85°C, Closes at +100°C, +150°C Max, NO, Automatic Reset

RS Stock No.:: 331-578
Mfr. Part No.:: 2455R 82-711 F100C
Brand:: Honeywell

Honeywell Bi-Metallic Thermostat, Opens at +85°C, Closes at +100°C, +150°C Max, NO, Automatic Reset

6 In AU stock for next working day delivery

6 In Global stock for delivery within 5 working day(s)

Added

Price (ex. GST) Each

$86.03

(exc. GST)

$94.63

(inc. GST)

Units	Per unit
1 - 14	$86.03
15 - 74	$84.32
75 +	$69.39

RS Stock No.:: 331-578
Mfr. Part No.:: 2455R 82-711 F100C
Brand:: Honeywell

Technical data sheets

Legislation and Compliance

Product Details

Bi-Metallic Thermostat

Snap action bi-metallic disc operates an SPST contact which is electrically isolated from the mounting bracket.
All types reset when the temperature falls to nominally 15° below operating temperature.
• Phenolic body with stainless steel end cap.
• 1/4in tab termination.
• Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
• Dielectric strength of 2000 Vac.
• N/C types open on temperature rise.
• N/O types close on temperature rise.

Approvals

UL recognised component, CSA Certified

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Thermal Switches

Specifications

Attribute	Value
Minimum Temperature	0°C
Maximum Temperature	+150°C
Opening Temperature	+85°C
Closing Temperature	+100°C
Thermostat Type	Bi-Metallic
Switch Configuration	NO
Contact Rating	15A
Contact Voltage Rating	240V ac
Terminal Type	Quick Connect
Reset Type	Automatic
