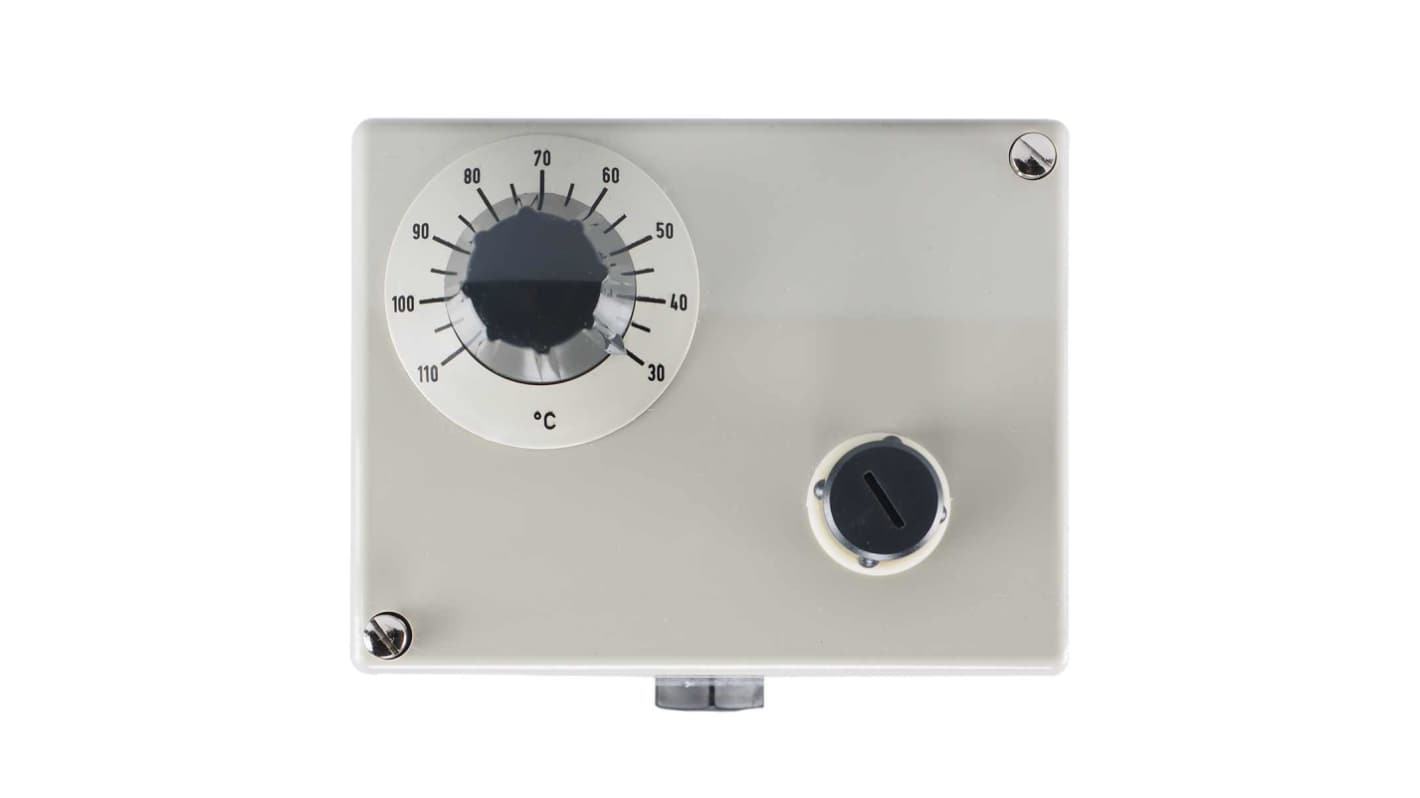

Jumo Capillary Thermostat, 110°C Max, NC, Automatic Reset, Surface Mount

The Jumo Mechanical Surface Mounting Double Thermostat is very robust and can also be used in rough conditions. The temperature controllers are characterized by a high switching point accuracy of +0/-1.5 % in the upper third of the scale and have a switching difference of approx. 3 to 4 % of the scale range and switches off after reaching the switch off point and automatically switches back to the original state after falling below the switch off temperature by the value of the switching differential. If the pending temperature at the temperature probe of the safety temperature limiter exceeds the set limit value, the circuit is opened and the microswitch is mechanically locked. The thermostat is used in heating, air conditioning and ventilation technology as well as in the plastics industry, apparatus and mechanical engineering as well as in furnace construction, in district heating transfer stations and for temperature monitoring in laboratories and climatic chambers.

Approved according to DIN EN 14597 and an EAC approval
Device includes a temperature controller and safety temperature limiter
Temperature of the controller is set with a set point adjuster
Safety temperature limiter’s switch off temperature is set with a screwdriver after removing the case cover
Controllers have a switching point accuracy of +0/-1.5 % in the upper third of the scale
They feature a switching differential (hysteresis) of approx. 3 to 4 %
Micro switch can be manually unlocked once the temperature drops below 10% of the scale range
No auxiliary power is needed for temperature measurement
Electrical connection uses screw terminals and supports a switching capacity of AC 230 V / 10 A
Fluid expansion measuring system works up to 135°C
Smooth copper sensor has a 6 mm diameter and probe lengths of 125 mm for the controller and 108 mm
