RS PRO Type K Thermocouple Connector 150mm Length, 1mm Diameter, -40°C → +1100°C
- RS Stock No.:
- 804-7931
- Brand:
- RS PRO
80 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$60.01
(exc. GST)
$66.01
(inc. GST)
| Units | Per unit |
| 1 - 9 | $60.01 |
| 10 - 19 | $57.91 |
| 20 + | $55.21 |
- RS Stock No.:
- 804-7931
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

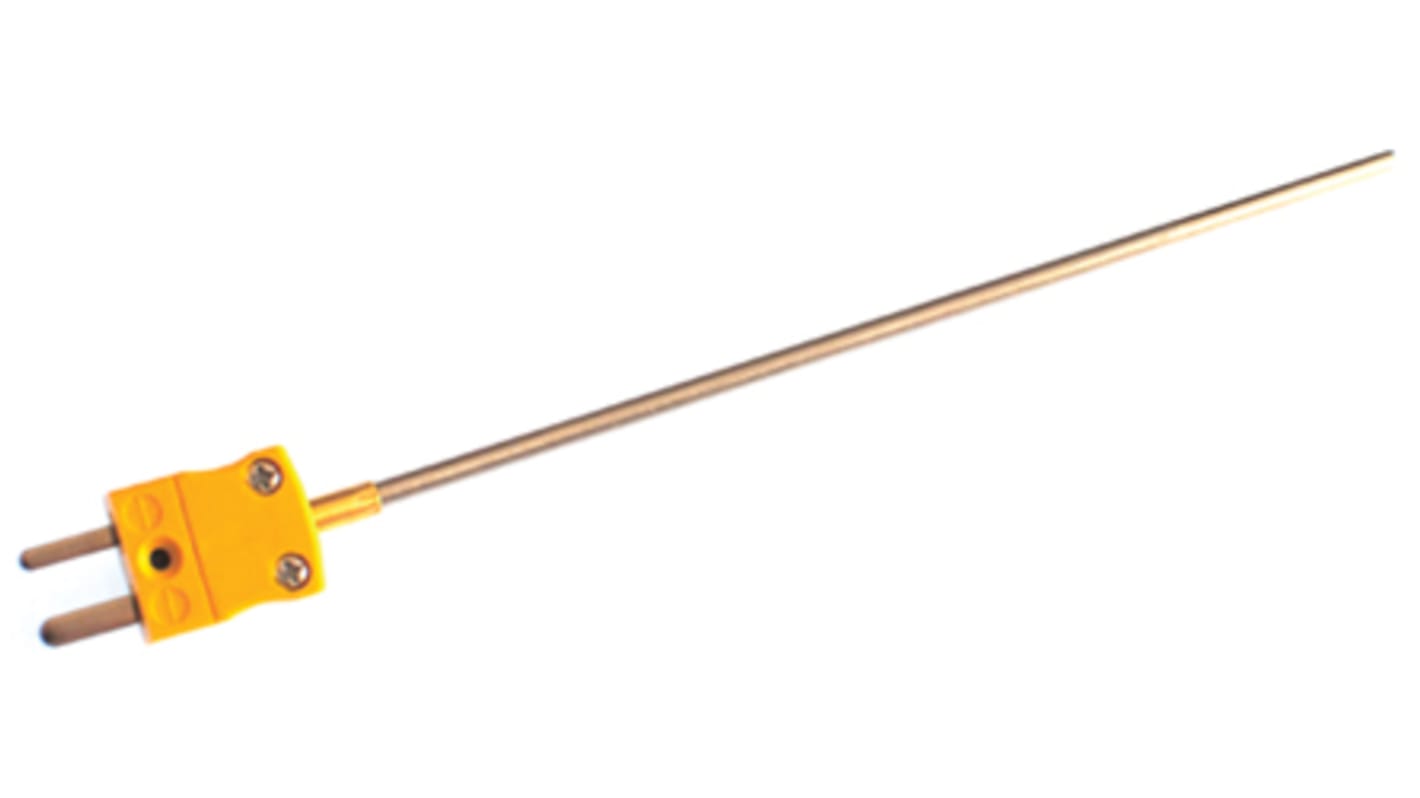

Type K Mineral Insulated Thermocouple with Miniature ANSI Plug
0.5, 1.0, 1.5 or 3.0mm diameter versions with insulated hot junction, which can be used in many applications and processes due to its high flexibility.
Mineral insulated type "K" thermocouple
310 stainless steel sheath
Probe temperature range: -40 ºC to +1100
Miniature plug termination (200 ºC)
Conforms to ANSI specification
310 stainless steel sheath
Probe temperature range: -40 ºC to +1100
Miniature plug termination (200 ºC)
Conforms to ANSI specification
Specifications
Attribute | Value |
|---|---|
| Thermocouple Type | K |
| Probe Diameter | 1mm |
| Probe Length | 150mm |
| Maximum Temperature Sensed | +1100°C |
| Termination Type | Miniature Plug |
| Standards Met | ANSI |
| Minimum Temperature Sensed | -40°C |
