Thermocouple & Extension Wire Type K, -75 → +260 °C 2 Core PTFE Sheath 50m

  • RS Stock No. 827-6047
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

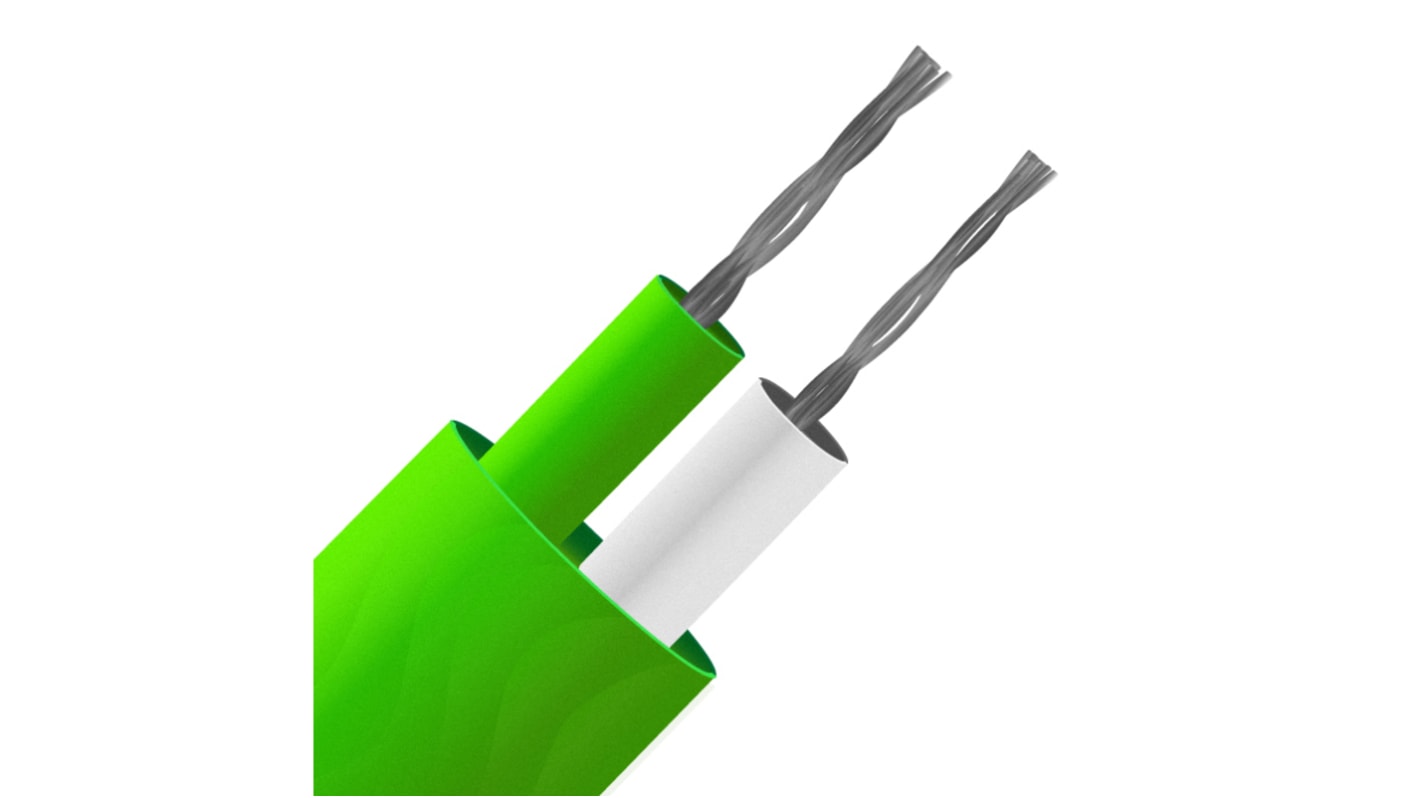

PTFE Insulated Flat Pair Thermocouple Cables

PTFE insulated flat pair cables
Single pair of PTFE insulated conductors, laid flat with PTFE jacket
Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids
Suitable for steam & pressure applications, autoclaves, sterilisers etc.
Thermocouple types K, J, & T with 7/0.2mm stranded conductors
1/0.3mm solid conductor option available for type T
10, 25 & 50 metre reel lengths

Specifications
Attribute Value
Thermocouple Type K
Number of Cores 2
Length 50m
Minimum Operating Temperature -75°C
Maximum Operating Temperature +260°C
Core Strands 1/0.315 mm
Insulation Material PTFE
Cable Shape Flat Pair
Number of Strands 1
Size of Strands 0.315 mm
Standards Met IEC 584-3, RoHS Compliant
13 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 103.37
(exc. GST)
$ 113.71
(inc. GST)
units
Per unit
1 - 9
$103.37
10 - 19
$100.80
20 +
$98.27
