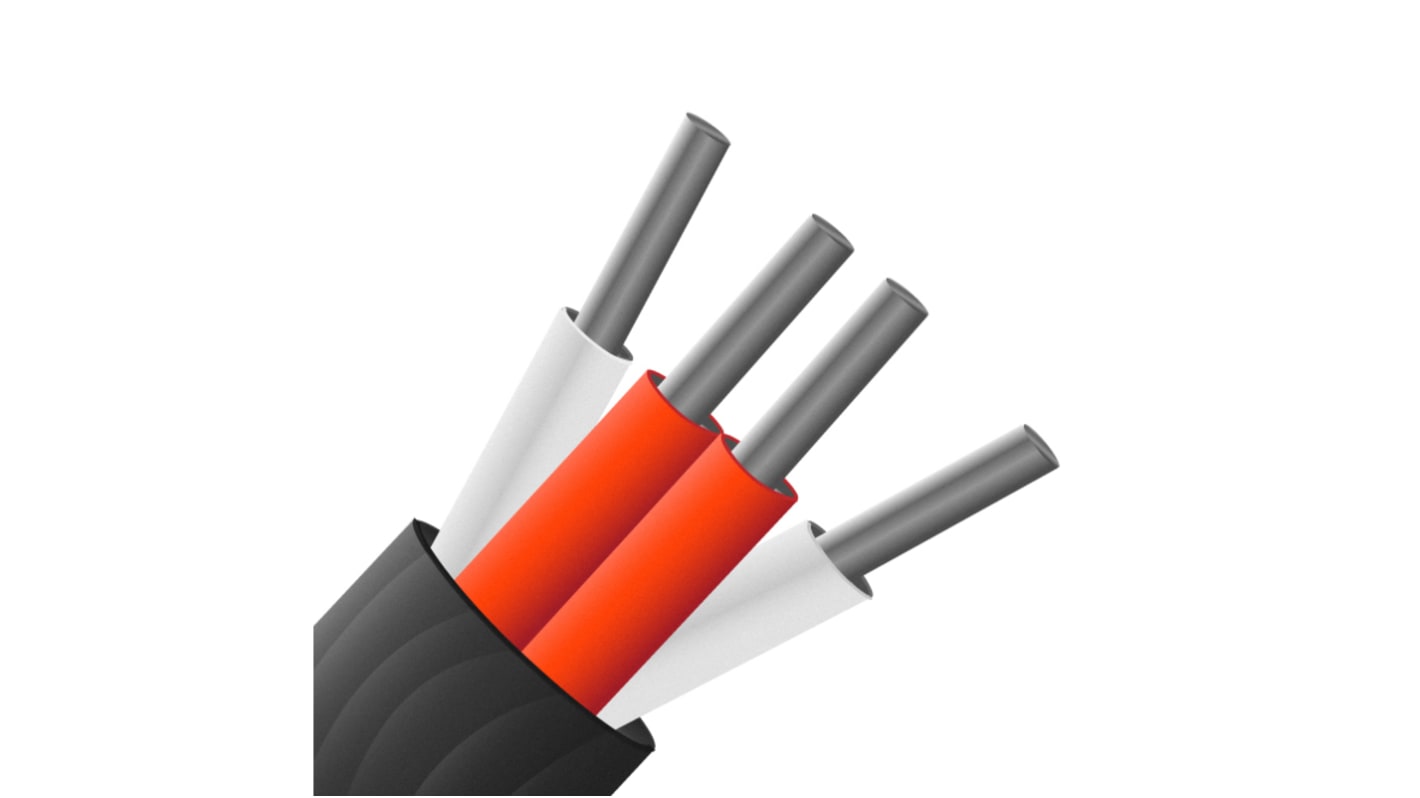

Extension Cable, -75 → +260 °C 4 Core Screened PTFE Sheath 10m

  • RS Stock No. 492-9775
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

PRT Extension Cable

PRT Extension Cable are flexible screened copper cables with a black sheath suitable for use with 2, 3 and 4 wire PT100 sensors / platinium resistance thermometers etc

Features and Benefits

Flexible screened copper cables with a black sheath suitable for use with 2, 3 and 4 wire PT100 sensors / platinium resistance thermometers etc
PVC insulated cable for extending Platinum Resistance Thermometers
Can be used to extend 2, 3 or 4 wire RTD configurations
Commonly used for Pt100Ω thermometers but also suitable with other types such as Pt130, Pt500 &
Pt1000Ω
4 core PVC insulated 7/0.2mm tin plated copper conductors, twisted cores, polyester tape & nylon
cord, tin plated copper braided screen with PVC insulated outer jacket
Cores colour coded 2 x Red / 2 x White to IEC-751 with black outer jacket
Heat resistant PVC to 105°C
Good for general purpose cable, highly flexible & waterproof
Insulation rating -10°C to 105°C
Supplied in 10, 25 & 50 metre reel lengths

Standards

BS4937 Part 30 1993 which conforms to IEC 584-3

RTD Extension Cable – 4 core PTFE (10 reel length)
Platinum Resistance Thermometer Extension Cable, PTFE insulated & screened

• PTFE insulated cable for extending Platinum Resistance Thermometers
• High temperature to 260°C, wrapped PTFE tape construction
• Can be used to extend 2, 3 or 4 wire RTD configurations
• Commonly used for Pt100Ω thermometers, also suitable with other types such as Pt130, Pt500 & Pt1000Ω
• 4 core PTFE insulated 7/0.2mm silver plated copper conductors, twisted cores, Mylar tape, silver plated
copper braided screen with PTFE insulated outer jacket
• Cores colour coded 2 x Red / 2 x White to IEC-751 + black outer jacket
• Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, steam, gasses etc.
• Insulation rating -75°C to 260°C
• Supplied in 10, & 25 metre reel lengths

Standards

IEC751

Specifications
Attribute Value
Number of Cores 4
Length 10m
Minimum Operating Temperature -75°C
Maximum Operating Temperature +260°C
Screened/Unscreened Screened
Core Strands 7/0.2 mm
Insulation Material PTFE
Cable Shape Multicore
Number of Strands 7
Size of Strands 0.2 mm
Standards Met IEC 751, RoHS Compliant
3 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 160.43
(exc. GST)
$ 176.47
(inc. GST)
units
Per unit
1 - 5
$160.43
6 +
$155.23
