Extension Cable Type J, -10 → +105 °C 2 Core Screened PVC Sheath 25m
- RS Stock No. 236-3921
- Manufacturer RS PRO
PVC Insulated Extension Cable
Features and Benefits
PVC insulated & colour coded to BS4937 Pt30
Screened or unscreened options
Very flexible
Twisted cores & screened construction for reduced electrical noise

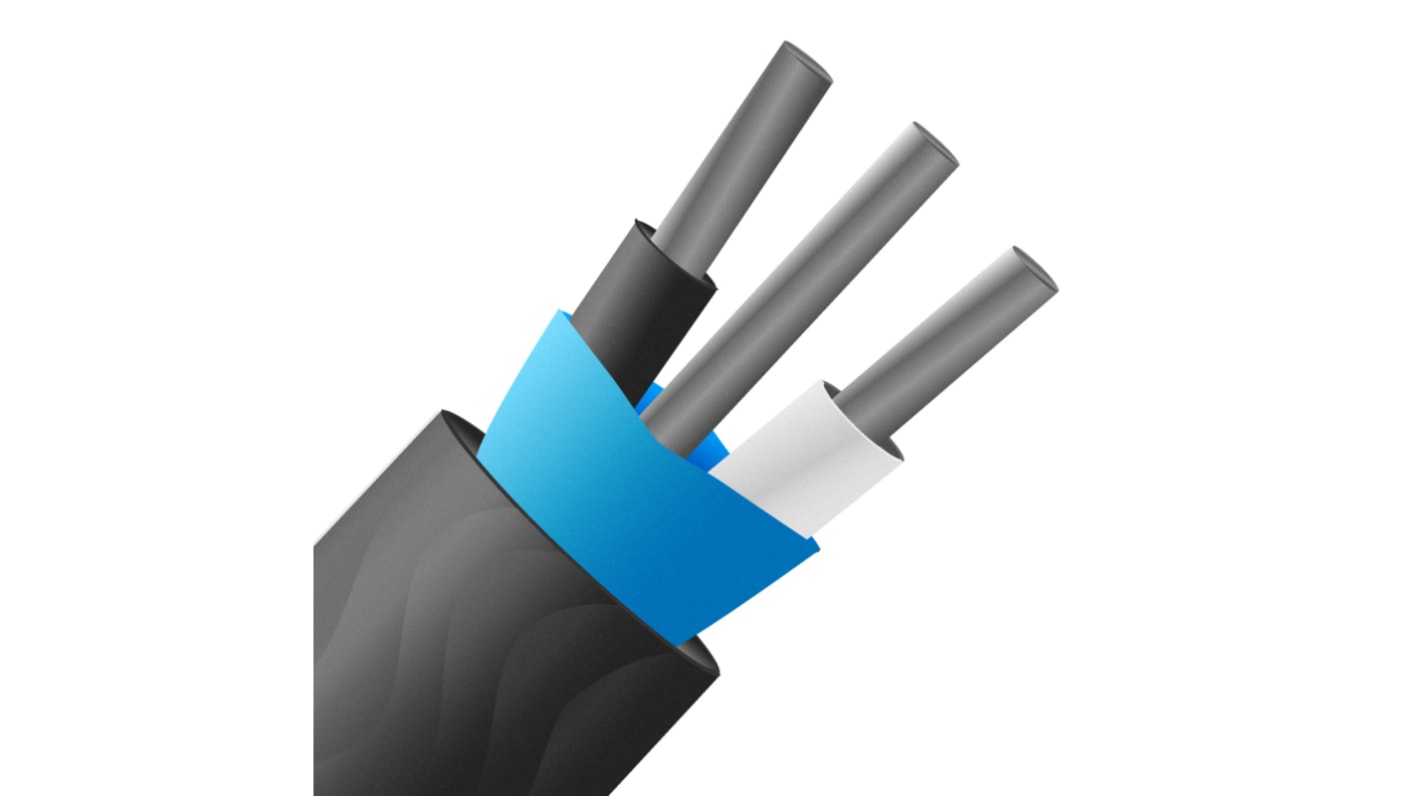

Conductors PVC insulated and twisted together, aluminium Mylar® tape screen & drain wire, overall
PVC sheath
General purpose cable both waterproof and flexible
Thermocouple extension types for K, J, T & compensating type VX (KCB) for type K thermocouple
Stranded 7/0.2mm conductors
Available in 25 & 100 metre lengths
Tolerance Class 2
Insulation rating -10°C to 105°C
Colour code (cores & jacket) to IEC-584-3
Standards
BS4937 Part 30 1993 which conforms to IEC 584-3
Standards
BS 4937 Part 30 1993
| Attribute | Value |
|---|---|
| Thermocouple Type | J |
| Number of Cores | 2 |
| Length | 25m |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +105°C |
| Screened/Unscreened | Screened |
| Core Strands | 7/0.2 mm |
| Insulation Material | PVC |
| Cable Shape | Multicore |
| Number of Strands | 7 |
| Size of Strands | 0.2 mm |
| Standards Met | BS 4937 Part 30 1993 IEC 584-3, RoHS Compliant |
