- RS Stock No.:
- 178-0950
- Brand:
- RS PRO
41 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$22.79
(exc. GST)
$25.07
(inc. GST)
Units | Per unit |
1 - 4 | $22.79 |
5 - 24 | $22.48 |
25 + | $18.52 |
- RS Stock No.:
- 178-0950
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

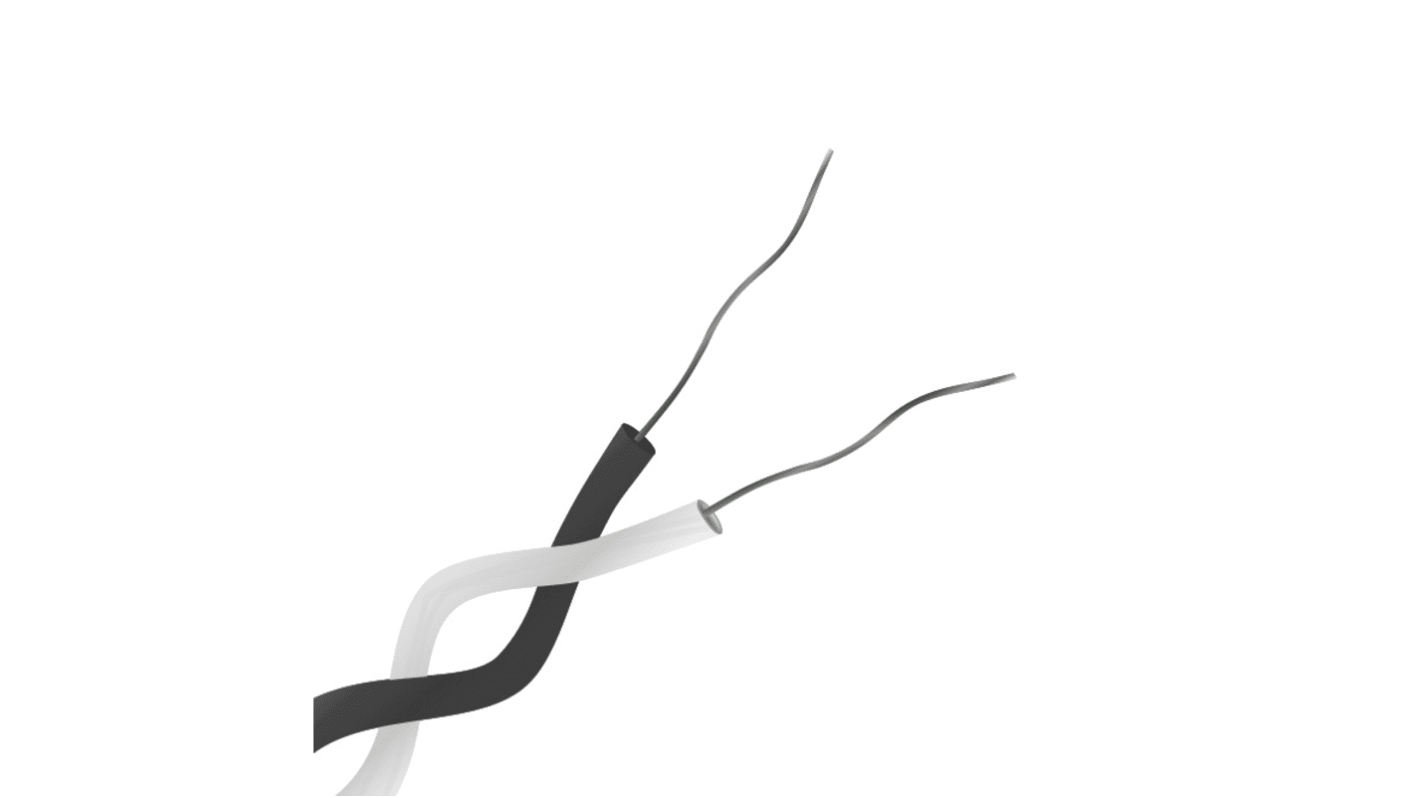

PFA Teflon® twin twisted pair for extending or making simple thermocouples
Single pair of PFA insulated conductors twisted together
Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam & pressure
Thermocouple types K, T & N with 1/0.2mm conductors, Type J 1/0.3mm
7/0.2mm stranded option available for type K
Tolerance Class 1 for optimum accuracy
Insulation rating -75°C to 260°C
Colour coded
Single pair of PFA insulated conductors twisted together
Good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam & pressure
Thermocouple types K, T & N with 1/0.2mm conductors, Type J 1/0.3mm
7/0.2mm stranded option available for type K
Tolerance Class 1 for optimum accuracy
Insulation rating -75°C to 260°C
Colour coded
Specifications
Attribute | Value |
---|---|
Length | 10m |
Insulation Material | PFA |
Thermocouple Type | J |
Maximum Operating Temperature | +260°C |
Screened/Unscreened | Screened |
Core Strands | 1/0.3mm |
Cable Shape | Twin Twisted |
Number of Strands | 2 |
Standards Met | IEC |
