- RS Stock No.:
- 179-3880
- Mfr. Part No.:
- NTHS1206N02N1002KE
- Brand:
- Vishay
On back order for despatch 02/07/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 250)
$3.514
(exc. GST)
$3.865
(inc. GST)
Units | Per unit | Per Reel* |
250 - 250 | $3.514 | $878.50 |
500 - 750 | $3.453 | $863.25 |
1000 + | $3.39 | $847.50 |
*price indicative |
- RS Stock No.:
- 179-3880
- Mfr. Part No.:
- NTHS1206N02N1002KE
- Brand:
- Vishay
Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
- COO (Country of Origin):
- MX
Product Details

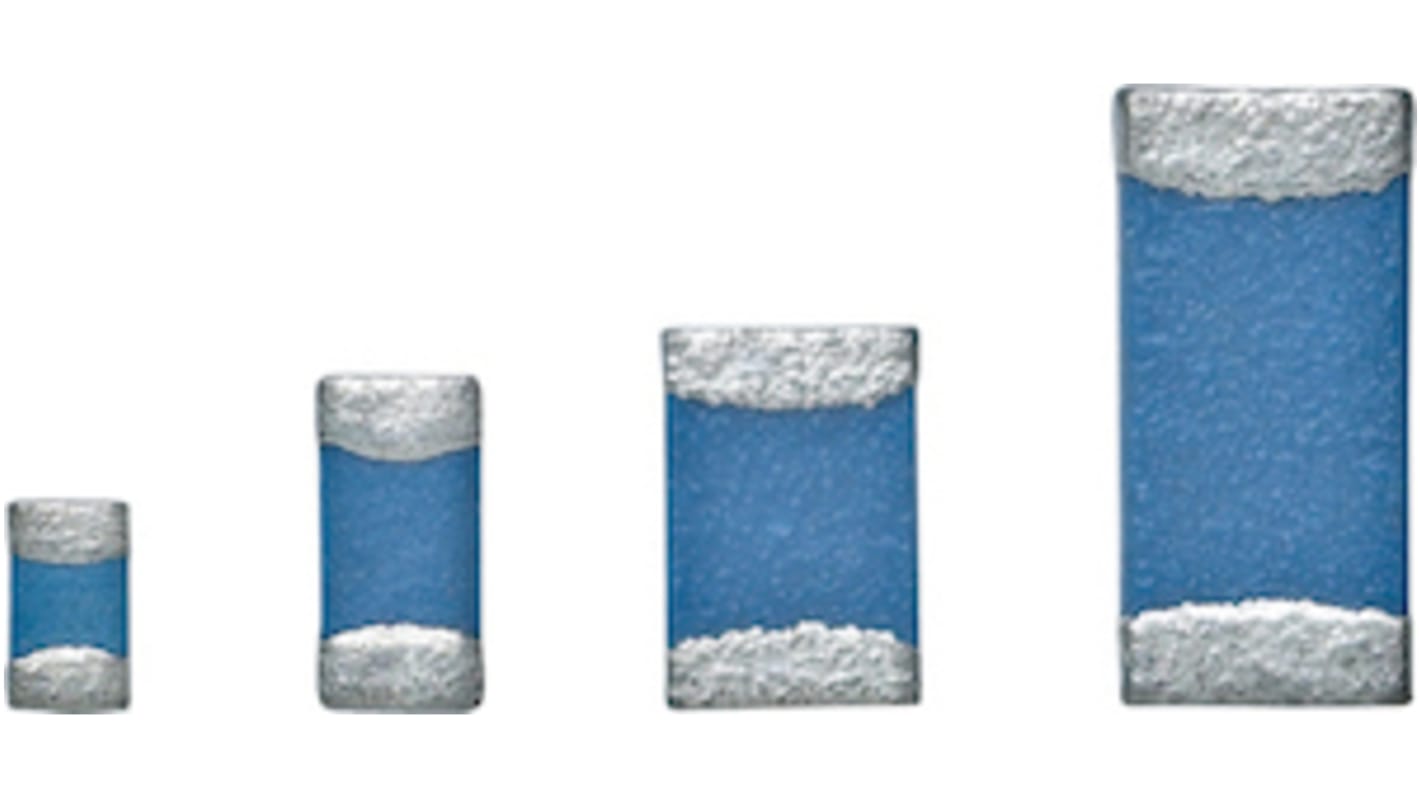

NTC Thermistors, SMD 0402, 0603, 0805, 1206 Chip
FEATURES
Extended resistance values available in standard sizes
Wraparound Ni barrier terminations with 100 % Sn
Allows design flexibility for use with hybrid circuitry
APPLICATIONS
Battery chargers
Power suppliers
Office equipment
Extended resistance values available in standard sizes
Wraparound Ni barrier terminations with 100 % Sn
Allows design flexibility for use with hybrid circuitry
APPLICATIONS
Battery chargers
Power suppliers
Office equipment
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Series | NTHS |
Temperature Coefficient Type | NTC |
Thermal Coefficient | -3.84%/K |
Thermal Time Constant | 13s |
Resistance @ 25 °C | 10kΩ |
Tolerance | ±10% |
Package/Case | 1206 (3216M) |
Maximum Power Rating | 280mW |
Length | 3.2mm |
Depth | 1.6mm |
Height | 1.8mm |
Maximum Operating Temperature | +125°C |
Dimensions | 3.2 x 1.6 x 1.8mm |
Minimum Operating Temperature | -40°C |
