Thermal Interface Sheet, Fibreglass, 0.9W/m·K, 12 x 12in 0.178mm, Self-Adhesive

  • RS Stock No. 169-2458
  • Mfr. Part No. SP400-0.007-AC-1212
  • Manufacturer Bergquist
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

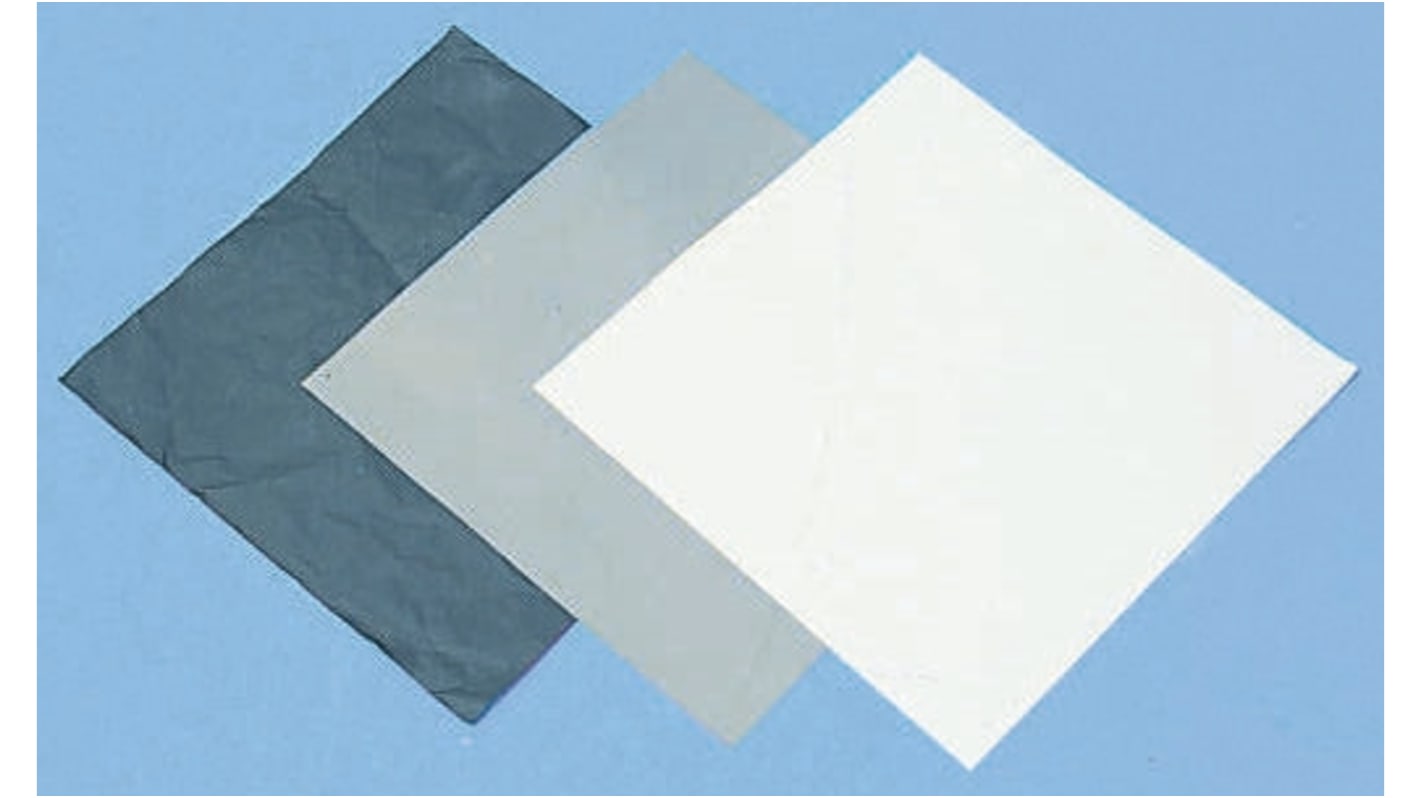

Insulator sheets

Sheets on which heat-emitting power semi-conductors can be mounted directly with complete safety.
Conduct heat.
Insulate electrically.
Available in dry or self-adhesive SILPAD400, QPAD, and 2000 models.

Specifications
Attribute Value
Dimensions 12 x 12in
Thickness 0.178mm
Length 12in
Width 12in
Thermal Conductivity 0.9W/m·K
Material Fibreglass
Self-Adhesive Yes
Minimum Operating Temperature -60°C
Maximum Operating Temperature +180°C
Hardness Shore A 85
Material Trade Name Sil-Pad 400
Operating Temperature Range -60 → +180 °C
On back order for despatch 29/09/2020, delivery within 7 working days from despatch date.
Price (ex. GST) Each
$ 98.04
(exc. GST)
$ 107.84
(inc. GST)
units
Per unit
1 - 9
$98.04
10 - 24
$96.67
25 - 49
$95.31
50 - 99
$93.32
100 +
$91.35
