Bergquist Thermal Interface Pad, 0.015in Thick, 3.5W/m·K, Fibreglass, 41.91 x 28.96mm

RS Stock No.:: 169-2357
Mfr. Part No.:: SP2000-0.015-00-05
Brand:: Bergquist

Bergquist Thermal Interface Pad, 0.015in Thick, 3.5W/m·K, Fibreglass, 41.91 x 28.96mm

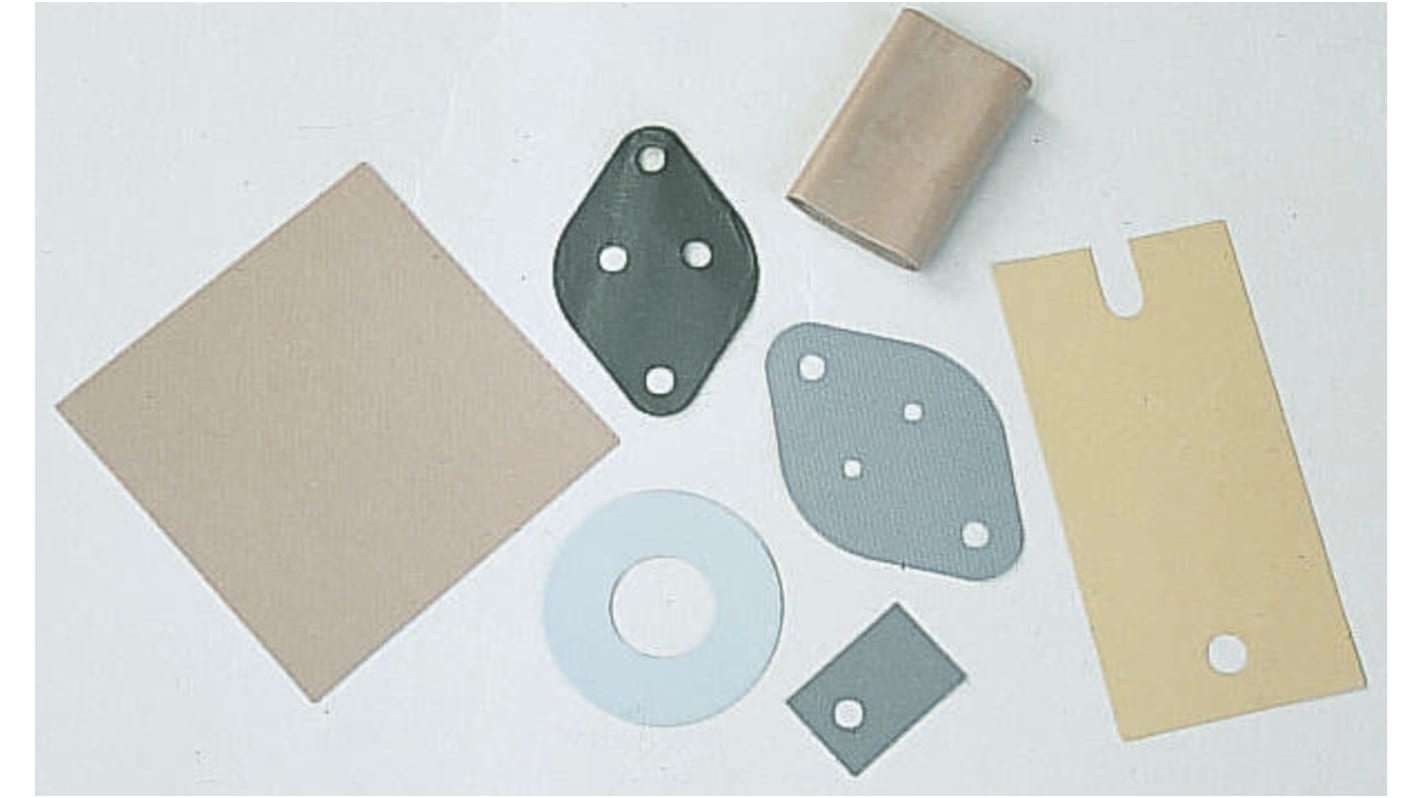

This image is representative of the product range

350 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each (In a Pack of 10)

$12.857

(exc. GST)

$14.143

(inc. GST)

Units	Per unit	Per Pack*
10 - 240	$12.857	$128.57
250 - 490	$12.794	$127.94
500 +	$12.708	$127.08
*price indicative

RS Stock No.:: 169-2357
Mfr. Part No.:: SP2000-0.015-00-05
Brand:: Bergquist

Technical data sheets

SIL-PAD High Performance Insulators

Legislation and Compliance

COO (Country of Origin):: US

Product Details

Bergquist Sil-Pad 2000

Bergquist Sil-Pad 2000 is a high performance, thermally conductive insulator designed for demanding military/aerospace and other commercial applications. Sil-Pad 2000 is a grease-free, conformable material capable of meetingor exceeding both the thermal and electrical requirements of high-reliability electronic packaging applications.

High-performance insulators, thermo-conductive and ultra reliable
Intended for highly demanding military and aerospace applications
Comply with military standards in their applications
Boron nitride reinforced silicon elastomer
The Sil-Pad 2000 is an insulator designed to maximise thermal and dielectric performance

Specifications

Attribute	Value
Dimensions	41.91 x 28.96mm
Thickness	0.015in
Length	41.91mm
Width	28.96mm
Thermal Conductivity	3.5W/m·K
Material	Fibreglass
Minimum Operating Temperature	-60°C
Maximum Operating Temperature	+200°C
Hardness	Shore A 90
Material Trade Name	Sil-Pad 2000
Operating Temperature Range	-60 → +200 °C
