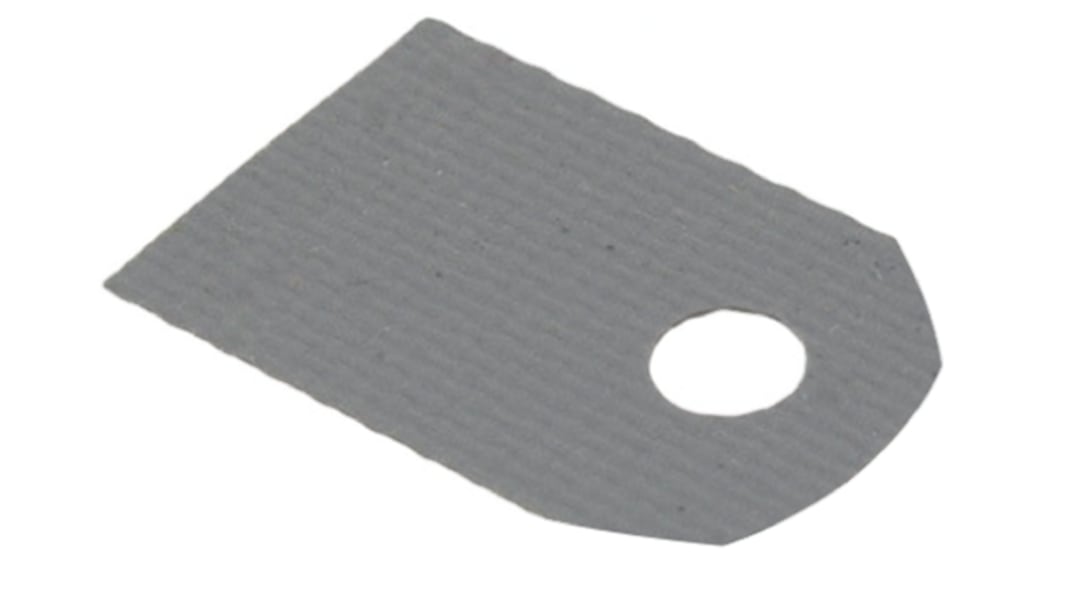

Thermal Interface Pad, Fibreglass, 0.9W/m·K, 21.97 x 16.51mm 0.178mm, Self-Adhesive

  • RS Stock No. 169-2313
  • Mfr. Part No. SP400-0.007-AC-53
  • Manufacturer Bergquist
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Sil-Pad 400 Insulators

The Sil-Pad 400s are silicon rubber and fibreglass-based insulators
This flame retardant material is designed to act as a thermo-conductive insulator
They have excellent mechanical and physical characteristics
They are resistant to cleaning products
The fibreglass reinforcement provides excellent resistance to perforation
The pliable surfaces provide a perfect surface contact as well as excellent thermal dissipation
The Sil-Pad 400s are non-toxic
Applications: used as an insulator between power devices and heatsinks

Specifications
Attribute Value
Dimensions 21.97 x 16.51mm
Thickness 0.178mm
Length 21.97mm
Width 16.51mm
Thermal Conductivity 0.9W/m·K
Material Fibreglass
Self-Adhesive Yes
Minimum Operating Temperature -60°C
Maximum Operating Temperature +180°C
Hardness Shore A 85
Material Trade Name Sil-Pad 400
Operating Temperature Range -60 → +180 °C
Stock check temporarily unavailable - call for stock availability
Price (ex. GST) Each (In a Pack of 50)
$ 1.063
(exc. GST)
$ 1.169
(inc. GST)
units
Per unit
Per Pack*
50 - 200
$1.063
$53.15
250 - 1200
$1.044
$52.20
1250 - 2450
$1.025
$51.25
2500 - 4950
$1.005
$50.25
5000 +
$0.987
$49.35
*price indicative
