- RS Stock No.:
- 169-2262
- Mfr. Part No.:
- SP400-0.007-AC-54
- Brand:
- Bergquist
1900 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 50)
$0.606
(exc. GST)
$0.667
(inc. GST)
Units | Per unit | Per Pack* |
50 - 1200 | $0.606 | $30.30 |
1250 - 2450 | $0.596 | $29.80 |
2500 - 4950 | $0.582 | $29.10 |
5000 + | $0.568 | $28.40 |
*price indicative |
- RS Stock No.:
- 169-2262
- Mfr. Part No.:
- SP400-0.007-AC-54
- Brand:
- Bergquist
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

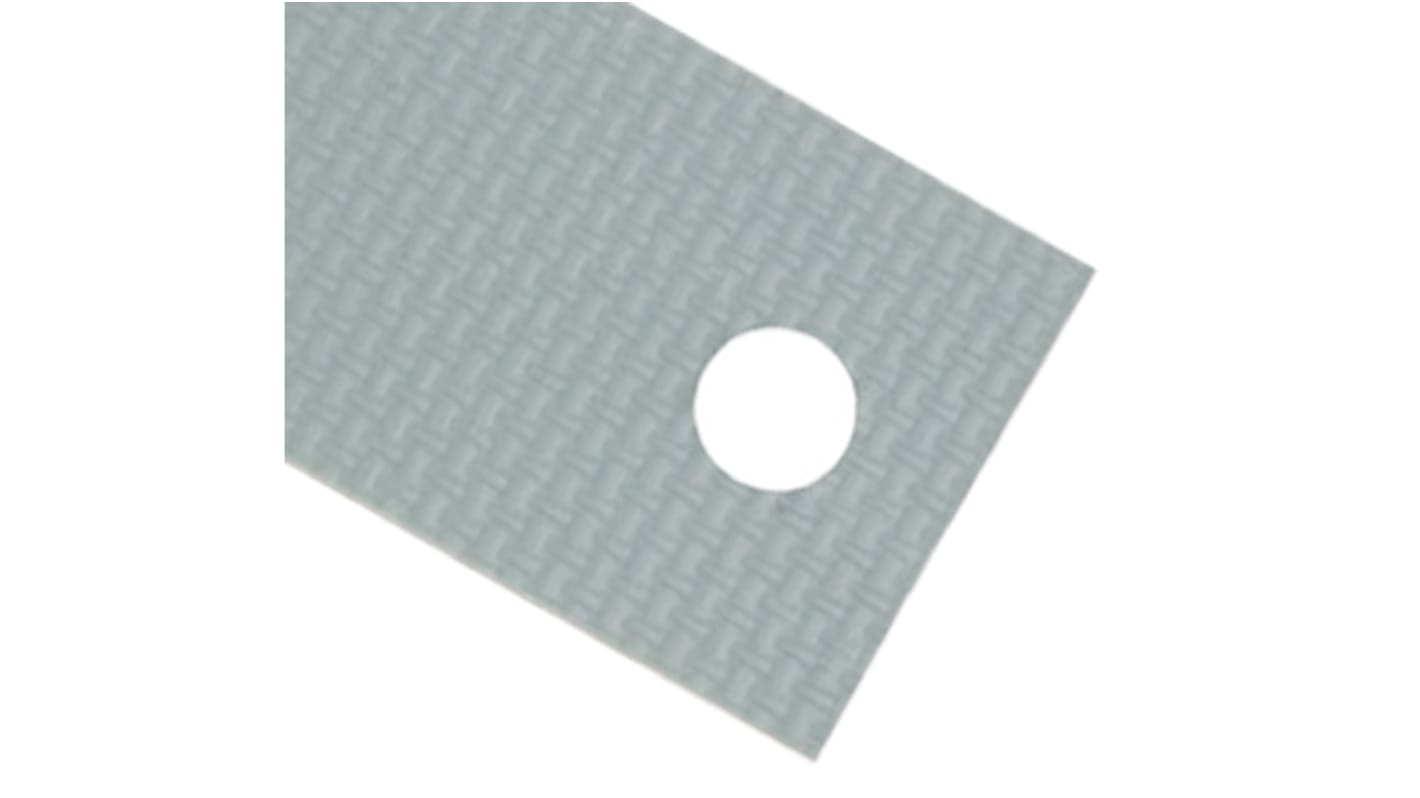

Sil-Pad 400 Insulators
The Sil-Pad 400s are silicon rubber and fibreglass-based insulators
This flame retardant material is designed to act as a thermo-conductive insulator
They have excellent mechanical and physical characteristics
They are resistant to cleaning products
The fibreglass reinforcement provides excellent resistance to perforation
The pliable surfaces provide a perfect surface contact as well as excellent thermal dissipation
The Sil-Pad 400s are non-toxic
Applications: used as an insulator between power devices and heatsinks
This flame retardant material is designed to act as a thermo-conductive insulator
They have excellent mechanical and physical characteristics
They are resistant to cleaning products
The fibreglass reinforcement provides excellent resistance to perforation
The pliable surfaces provide a perfect surface contact as well as excellent thermal dissipation
The Sil-Pad 400s are non-toxic
Applications: used as an insulator between power devices and heatsinks
Specifications
Attribute | Value |
---|---|
Dimensions | 19.05 x 12.7mm |
Thickness | 0.178mm |
Length | 19.05mm |
Width | 12.7mm |
Thermal Conductivity | 0.9W/m·K |
Material | Fibreglass |
Self-Adhesive | Yes |
Minimum Operating Temperature | -60°C |
Maximum Operating Temperature | +180°C |
Hardness | Shore A 85 |
Material Trade Name | Sil-Pad 400 |
Operating Temperature Range | -60 → +180 °C |
