RS PRO Tachometer, Best Accuracy ±0.05 % Optical LCD 99999rpm

  • RS Stock No. 244-0719
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): TW
Product Details

Optical, Single Memory

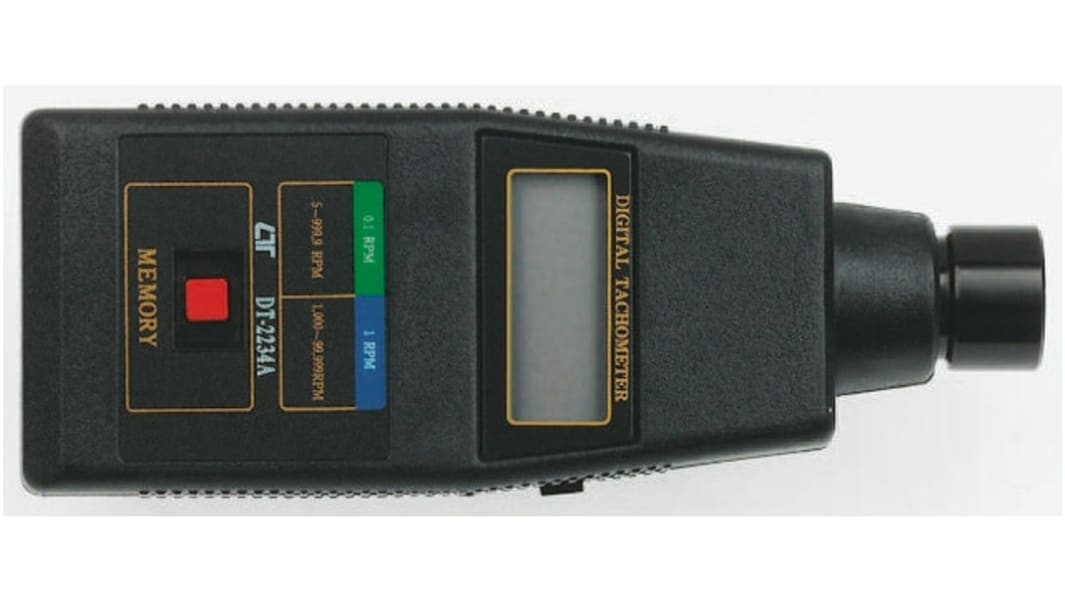

An electronic 5 digit LCD tachometer which uses an ultra-bright LED.

Features and Benefits:

Direct reading RPM
Memory - recall of last reading, max., min
Adhesive reflective strips supplied
Battery: 4 x AA Cells (not supplied)
Overall dimensions (H x W x D) 190 x 72 x 37mm

Typical applications:

This tool is just as important in the implementation and day to day operations of machinery and systems as it is for maintenance and would also benefit research and development laboratories. Tachometers are typically used for measuring e.g:

• The speed of rotating equipment such as motors, turbines, fans, wheel, shafts, rollers
• Travelling speed of belts and conveyors
• Length of long products such as wire, fibre, steel, wood, etc.
• The speed of travel and length of sheet products such a films and foils

FAQs:

Is this tachometer supplied with a battery?

No, the tachometer is not supplied with batteries. It requires 4 x AA batteries e.g. 7442199

How does an optical sensor work?

The tachometer's optical sensor uses a beam of laser light to measure the speed of rotation of the wheel or shaft. It measures differences in frequency of the reflected light.

What do I get in a set?

The Tachometer is supplied with:
• Carrying Case
• Reflective Tape Marks
• Manual

Specifications
Attribute Value
Best Accuracy ±0.05 %
Category Optical
Battery Type AA
Display Type LCD
Dimensions 72 x 37 x 208mm
Weight 280g
Height 208mm
Length 72mm
Maximum Operating Temperature +50°C
Maximum Speed 99999rpm
Minimum Operating Temperature 0°C
Minimum Speed 5rpm
Width 37mm
Model Number p DT-2234B
88 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 362.06
(exc. GST)
$ 398.27
(inc. GST)
units
Per unit
1 +
$362.06
