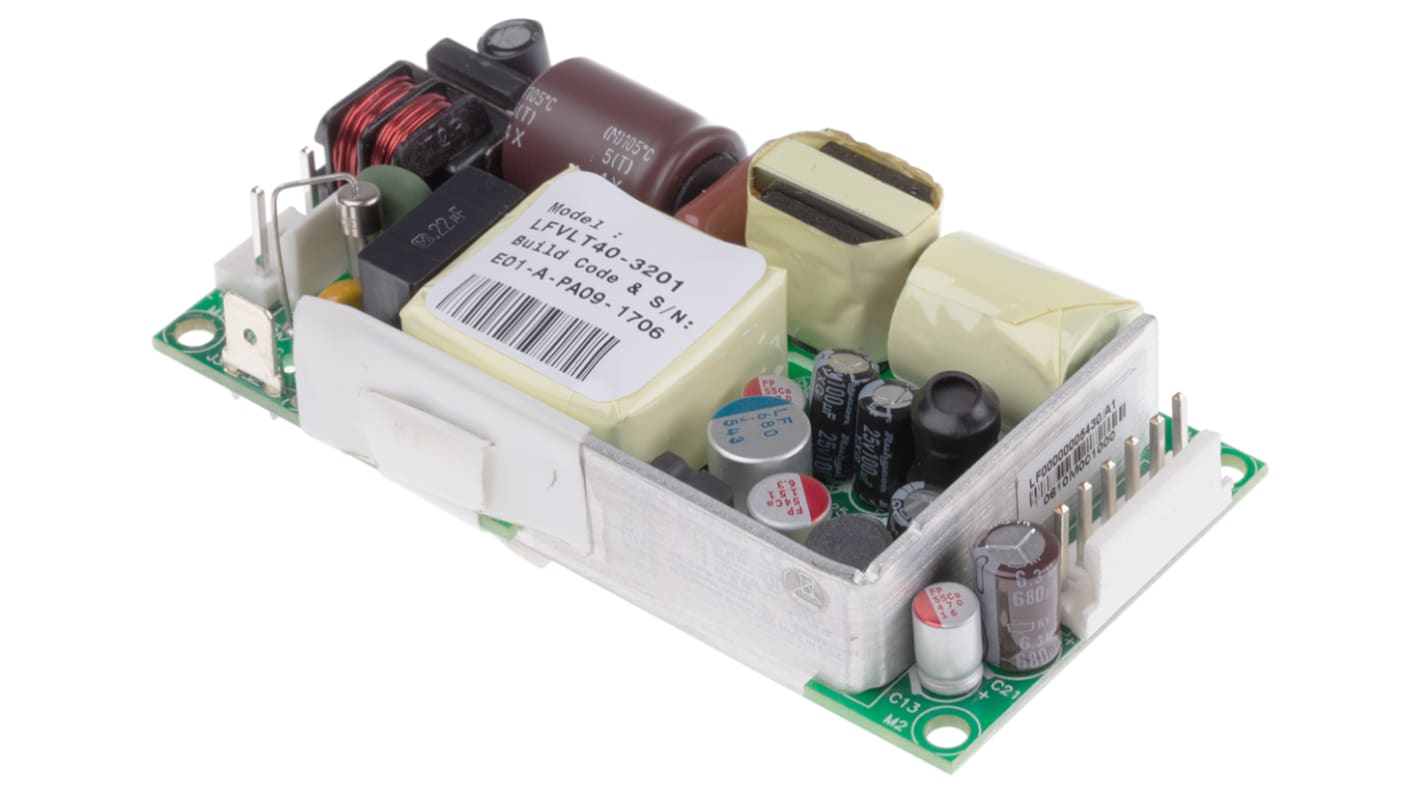

EOS Switching Power Supply, LFVLT40-3201, 5.2 V dc, 23.8 V dc, 1 A, 6 A, 500 mA, 40W, Triple Output, 180 → 264 V
- RS Stock No.:
- 377-6851
- Mfr. Part No.:
- LFVLT40-3201
- Brand:
- EOS
On back order for despatch 26/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$190.17
(exc. GST)
$209.19
(inc. GST)
Units | Per unit |
1 - 9 | $190.17 |
10 - 49 | $186.81 |
50 + | $181.99 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 377-6851
- Mfr. Part No.:
- LFVLT40-3201
- Brand:
- EOS
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
40W to 130W Universal Input, Single/Multi Output VLT Series
Note
Connectors are not supplied.
VLT130 current rating with Fan (180LFM). Power rating with forced airflow, requires user supplied 15CFM fan.
VLT130 current rating with Fan (180LFM). Power rating with forced airflow, requires user supplied 15CFM fan.
Standards
IEC950, EN60950, UL1950
Approvals
VDE; UL Recognised Component
Specifications
Attribute | Value |
---|---|
Output Voltage | 5.2 V dc, 23.8 V dc |
Output Current | 1 A, 6 A, 500 mA |
Power Rating | 40W |
Number of Outputs | 3 |
Input Voltage | 180 → 264 V ac, 90 → 132 V ac |
Mounting Type | Chassis Mount |
Package Type | Open Frame |
Length | 101.6mm |
Width | 50.8mm |
Depth | 27.18mm |
Efficiency | 82% |
Weight | 150g |
Maximum Temperature | +50°C |
Minimum Temperature | 0°C |
