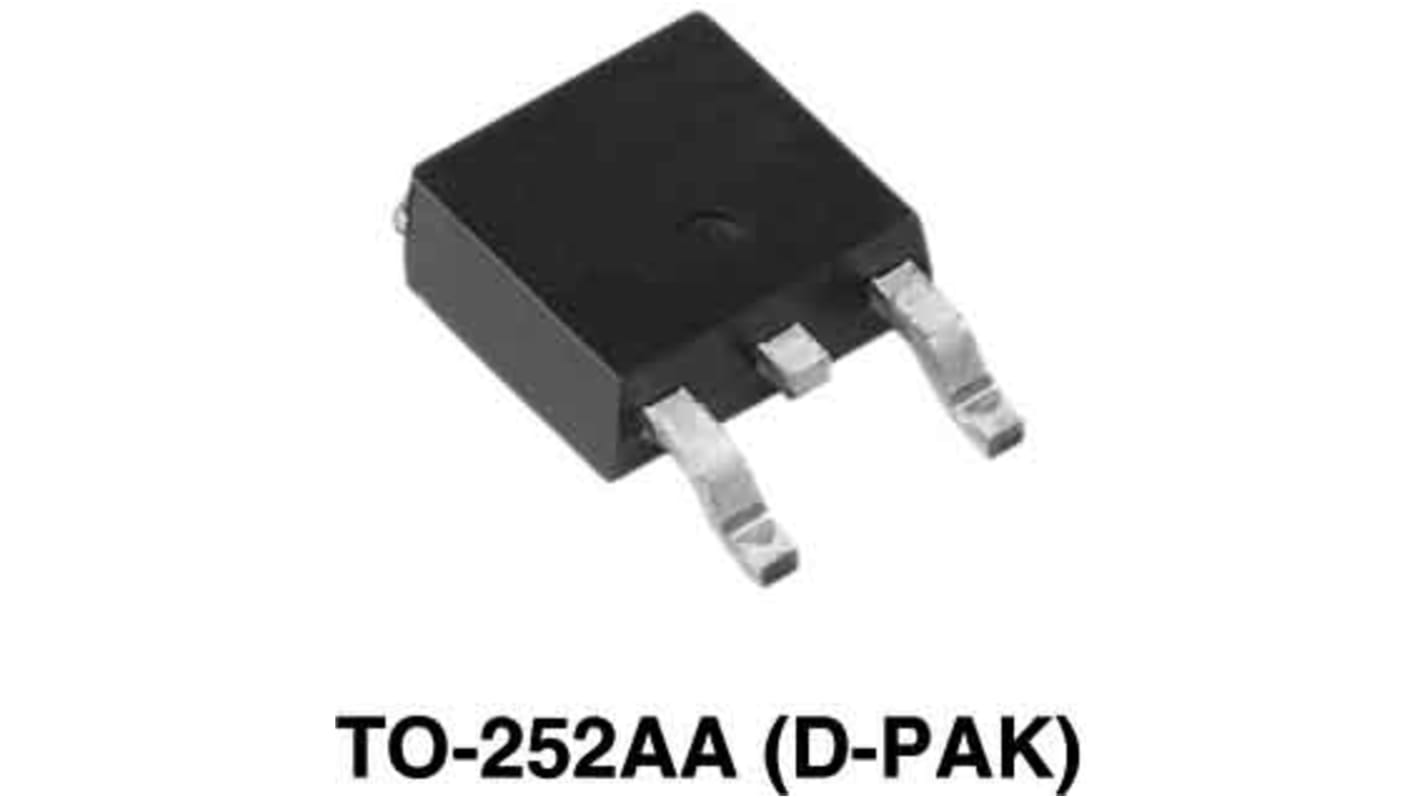

Vishay Switching Diode, 15A 600V, 3 + Tab-Pin TO-252AA VS-15EWL06FN-M3
- RS Stock No.:
- 180-7313
- Mfr. Part No.:
- VS-15EWL06FN-M3
- Brand:
- Vishay
On back order for despatch 22/08/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Pack of 10)
$1.368
(exc. GST)
$1.505
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 - 10 | $1.368 | $13.68 |
| 20 - 30 | $1.333 | $13.33 |
| 40 + | $1.315 | $13.15 |
| *price indicative | ||
- RS Stock No.:
- 180-7313
- Mfr. Part No.:
- VS-15EWL06FN-M3
- Brand:
- Vishay
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
State of the art, ultralow VF, soft-switching hyperfast rectifiers optimized for Discontinuous (Critical) Mode (DCM) Power Factor Correction (PFC).The minimized conduction loss, optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.The device is also intended for use as a freewheeling diode in power supplies and other power switching applications.
Ultrafast recovery time, extremely low VF and soft recovery
175 °C maximum operating junction temperature
For PFC DCM operation
APPLICATIONS:
State of the art, ultralow VF, soft-switching hyperfast rectifiers optimized for Discontinuous (Critical) Mode (DCM) Power Factor Correction (PFC). The minimized conduction loss, optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers. The device is also intended for use as a freewheeling diode in power supplies and other power switching applications.
undefined
175 °C maximum operating junction temperature
For PFC DCM operation
APPLICATIONS:
State of the art, ultralow VF, soft-switching hyperfast rectifiers optimized for Discontinuous (Critical) Mode (DCM) Power Factor Correction (PFC). The minimized conduction loss, optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers. The device is also intended for use as a freewheeling diode in power supplies and other power switching applications.
undefined
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Maximum Forward Current | 15A |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Reverse Voltage | 600V |
| Package Type | TO-252AA |
| Pin Count | 3 + Tab |
| Maximum Diode Capacitance | 11pF |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 6.73mm |
| Width | 6.22mm |
| Height | 2.26mm |
| Dimensions | 6.73 x 6.22 x 2.26mm |
