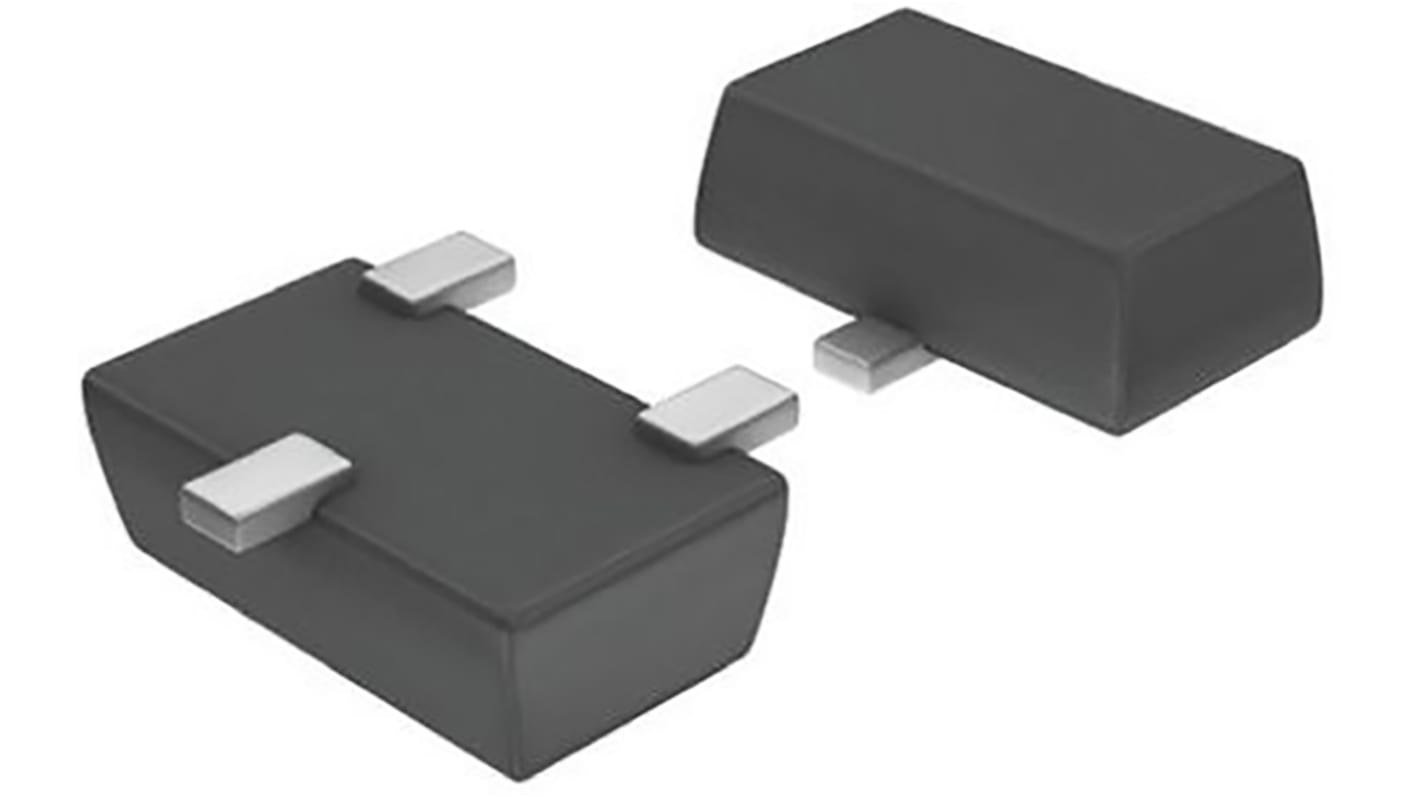

ROHM Dual Switching Diode, Common Cathode, 300mA 80V, 3-Pin SOT-323FL DAN202UMTL
- RS Stock No.:
- 131-2783
- Mfr. Part No.:
- DAN202UMTL
- Brand:
- ROHM
200 In Global stock for delivery within 5 working day(s)
800 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 200)
$0.126
(exc. GST)
$0.139
(inc. GST)
| Units | Per unit | Per Pack* |
| 200 - 800 | $0.126 | $25.20 |
| 1000 - 1800 | $0.122 | $24.40 |
| 2000 - 9800 | $0.119 | $23.80 |
| 10000 - 19800 | $0.115 | $23.00 |
| 20000 + | $0.112 | $22.40 |
| *price indicative | ||
- RS Stock No.:
- 131-2783
- Mfr. Part No.:
- DAN202UMTL
- Brand:
- ROHM
Technical data sheets
Legislation and Compliance
Product Details
Switching Diodes, ROHM
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Diodes and Rectifiers, ROHM Semiconductor
Specifications
Attribute | Value |
|---|---|
| Maximum Forward Current | 300mA |
| Diode Configuration | Common Cathode |
| Number of Elements per Chip | 2 |
| Mounting Type | Surface Mount |
| Maximum Reverse Voltage | 80V |
| Package Type | SOT-323FL |
| Maximum Forward Voltage Drop | 1.2V |
| Pin Count | 3 |
| Maximum Diode Capacitance | 3.5pF |
| Maximum Operating Temperature | +150 °C |
| Length | 2.1mm |
| Width | 1.35mm |
| Height | 1mm |
| Dimensions | 2.1 x 1.35 x 1mm |
| Power Dissipation | 200mW |
