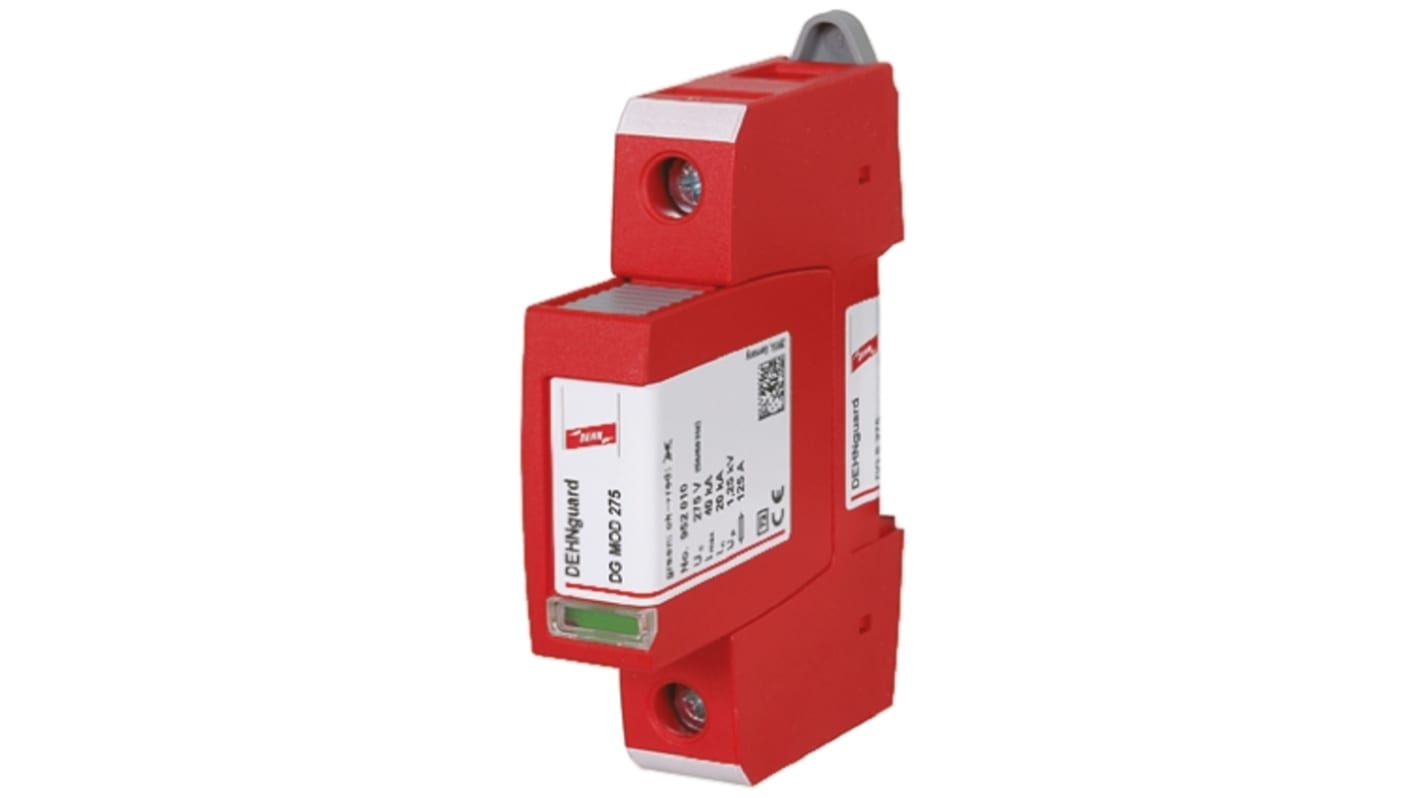

Dehn 275 V ac, 350 V dc 40kA DG Type 2 Arrester, Plug In Mounting

  • RS Stock No. 768-1779
  • Mfr. Part No. DG S 275
  • Manufacturer Dehn
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

DEHNguard Modular Surge Arresters Type 2

DEHNguard Modular Type 2 surge arrestors, supplied as a prewired base with plug in modules

Energy coordinated with other Dehn Redline products in accordance with BS7671 amendment 1
High discharge capacity using heavy duty metal oxide varistors and spark gaps
Status indication using Thermo Dynamic Control for monitoring of the SPD
Tool less replacement of the plugs for repair and test functions

Surge Protection Devices, SPDs (DIN-rail)

Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage surges are usually caused by lightning and can reach up to 6000V, with current surges of over 3000A. The maximum size of the voltage and current surges depends on the location within the building's wiring system. BS7671: 2011 Amendment 1 Sections 443 and 534 cover risk assessment and provides guidance on protection of electronic equipment for installation engineers to follow. The fullest information on lightning and surge protection comes from the BSEN 62305 series of standards.

Specifications
Attribute Value
Suppressor Type Type 2 Arrester
Maximum Voltage Rating 275 V ac, 350 V dc
Mounting Type Plug In
Maximum Surge Current 40kA
Series DG
Length 90mm
Depth 18mm
Height 66mm
Dimensions 90 x 18 x 66mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +80°C
Stock check temporarily unavailable - call for stock availability
Price (ex. GST) Each
$ 158.56
(exc. GST)
$ 174.42
(inc. GST)
units
Per unit
1 +
$158.56
