RS PRO Steel 12 Teeth Spur Gear, 18mm Pitch Diam. , 21mm Hub Diam. , 8mm Bore Diam.

  • RS Stock No. 521-6395
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Steel Metric Spur Gears

RS Pro high quality steel spur gears in a range of gear ratios. Ideally used for speed reduction or increase, torque multiplication, resolution and accuracy in positioning systems.

Features and Benefits

• Steel EN8 (080M40/080M46) or equivalent
• Tensile strength: 569N/mm2 (min.)
• 20° pressure angle

Note

SSN10/10B and SSN10/12B are hobbed type pinions with cutter runout after the 5 mm gear face width.

Standards

DIN Standard - DIN 867, DIN 3962, DIN 3963, Grade / Quality 9 or equivalent

//media.rs-online.com/t_line/L745517-24.gif

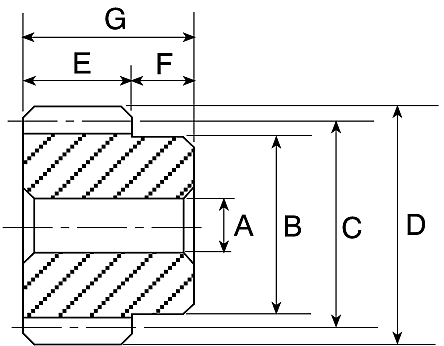

//media.rs-online.com/t_line/L745595-01.gif

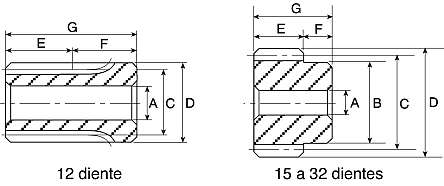

//media.rs-online.com/t_line/LE745517-24.gif
//media.rs-online.com/t_line/LI745400-01.gif
//media.rs-online.com/t_line/LI745517-01.gif
Specifications
Attribute Value
Module 1.5
Number of Teeth 12
Material Steel
Bore Diameter 8mm
Hub Diameter 21mm
Pitch Diameter 18mm
Face Width 15mm
18 : Next working day (AU stock)
31 : 5 working days (Global stock)
Price (ex. GST) Each
$ 8.84
(exc. GST)
$ 9.72
(inc. GST)
units
Per unit
1 - 5
$8.84
6 - 11
$8.71
12 +
$8.58
