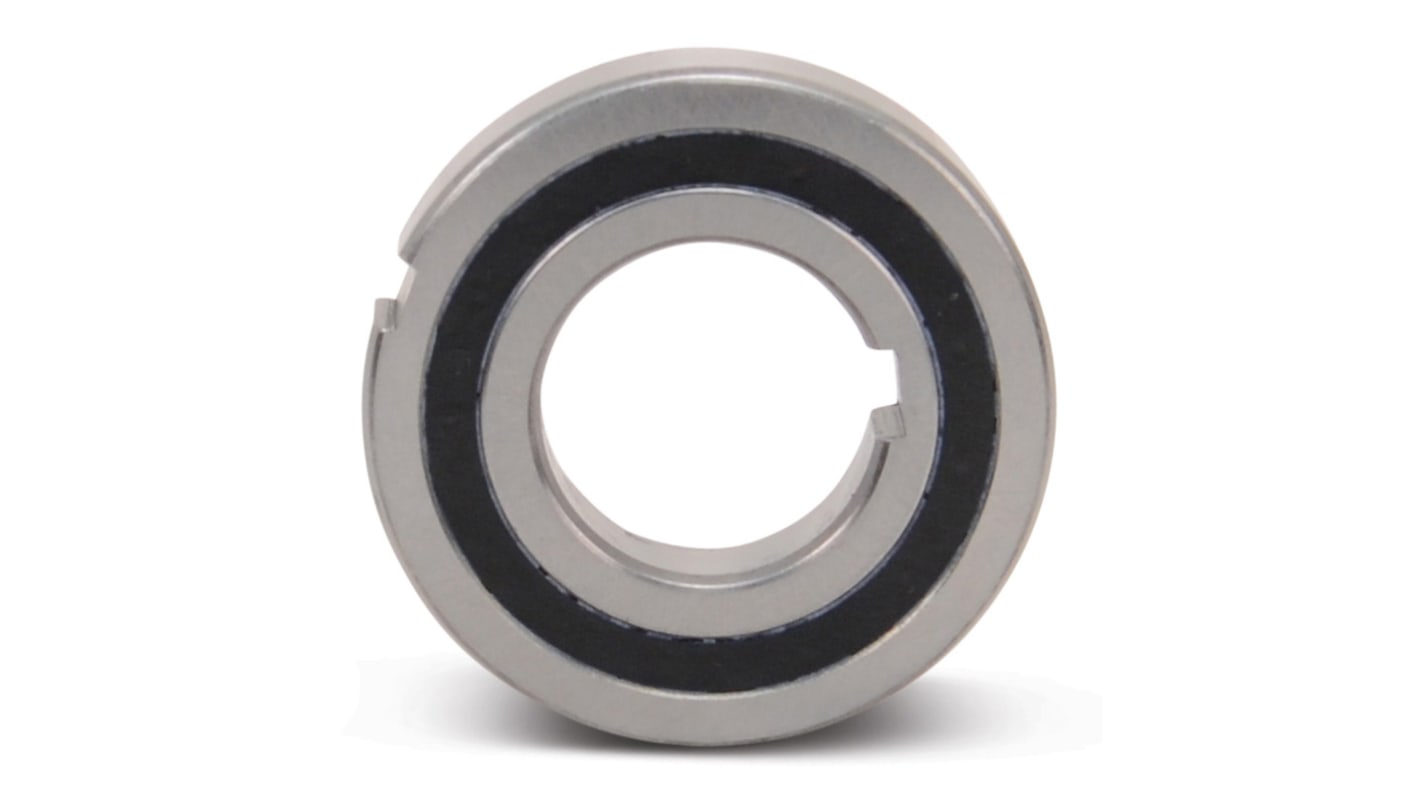

Stieber CSK 30-PP Sprag Clutch Bearing 30mm I.D., 62mm O.D., 16mm Race Width
- RS Stock No.:
- 146-5260
- Mfr. Part No.:
- CSK 30-PP
- Brand:
- Stieber
3 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$313.68
(exc. GST)
$345.05
(inc. GST)
| Units | Per unit |
| 1 - 4 | $313.68 |
| 5 + | $304.89 |
- RS Stock No.:
- 146-5260
- Mfr. Part No.:
- CSK 30-PP
- Brand:
- Stieber
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Types CSK..P and CSK..PP are sprag type freewheels integrated into 62.. series ball bearings (except size 40). They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional “nylos” type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 30mm |
| Outside Diameter | 62mm |
| Torque | 138Nm |
| Race Width | 16mm |
| Series | 6206 |
| Over-running Speed | 4200rpm |
| Dynamic Load Rating | 11.7kN |
| Static Load Rating | 6.45kN |
| Keyway | Inner and Outer Race |
| Drag Torque | 4.4Ncm |
