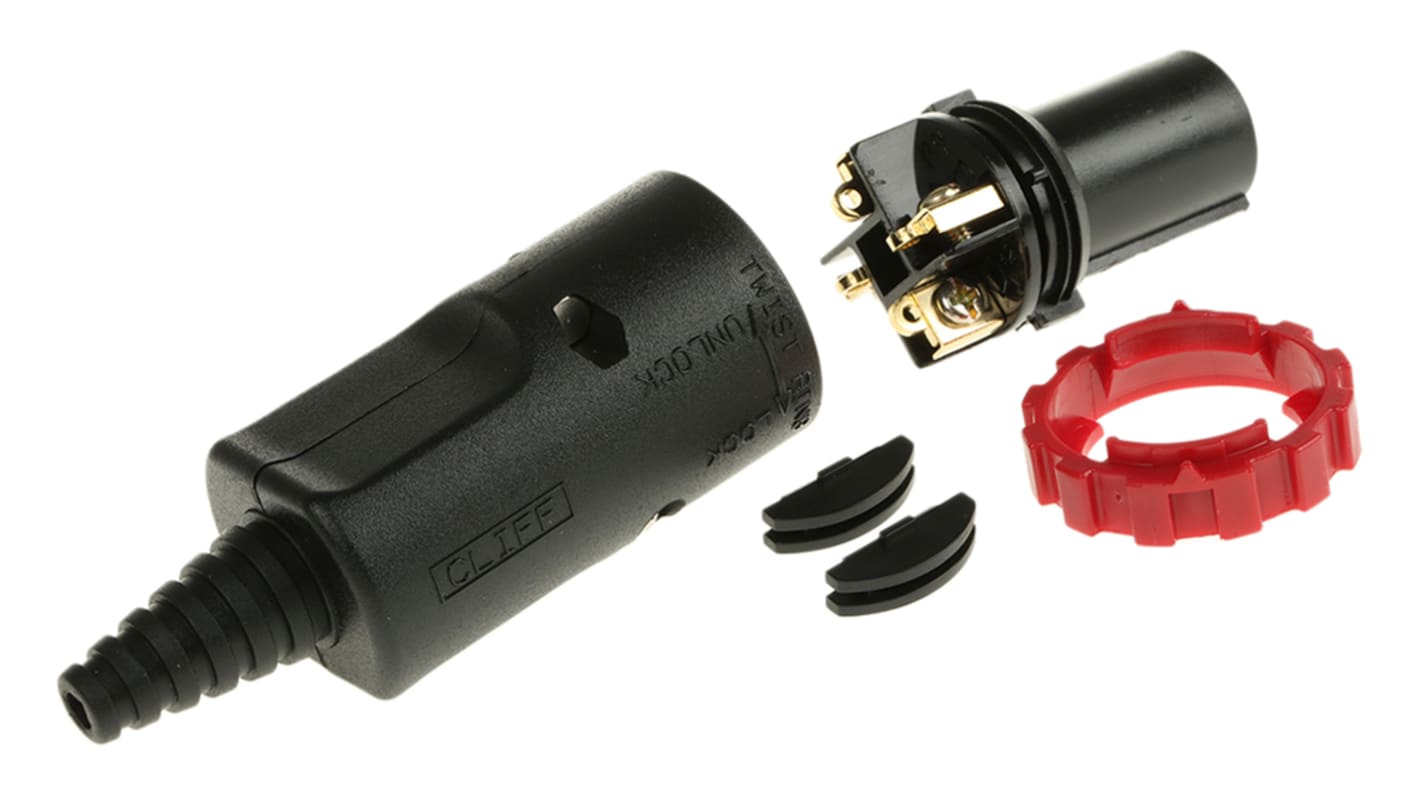

RS PRO Cable Mount Loudspeaker Connector Plug, 4 Way, 20A, Screw Down, Solder Termination

  • RS Stock No. 171-102
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Touchsafe Plugs and Sockets, 4 Pole

Brought to you under the trusted RS Brand, this connector is intended for high power applications that require a reliable locking touch-proof connector system. The 4-pole plug and socket arrangement is ideal for connecting loudspeakers to amplifiers, delivering power to consoles and general interconnection of control and monitoring equipment for security systems. This Touchsafe connector is highly versatile, and often used in battery chargers, motors, sound systems and motor control.

Features and Benefits:
• Touchproof contacts to IEC65/IEC348
• Polarised
• Easy locking/unlocking
• Push-on (panel socket) and screw/solder (plug) terminations
• Built-in cable clamp
• 6mm to 15mm diameter cable accepted
• 4-pole chassis socket fits standard AXR/XLR cut-out
• 20 A rms (cont. per contact)
• Gold plated contacts

//media.rs-online.com/t_line/L215641-01.gif
Specifications
Attribute Value
Gender Male
Number of Contacts 4
Body Orientation Straight
Mounting Type Cable Mount
Contact Plating Gold
Termination Method Screw Down, Solder
Colour Black
Current Rating 20A
Voltage Rating 240 V ac
Maximum Operating Temperature +80°C
Minimum Operating Temperature -20°C
3 : Next working day (AU stock)
100 : 5 working days (Global stock)
Price (ex. GST) Each
$ 14.30
(exc. GST)
$ 15.73
(inc. GST)
units
Per unit
1 - 14
$14.30
15 - 49
$14.16
50 - 99
$13.95
100 +
$13.66
