RS PRO Digital Sound Level Meter 8kHz

  • RS Stock No. 146-4650
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

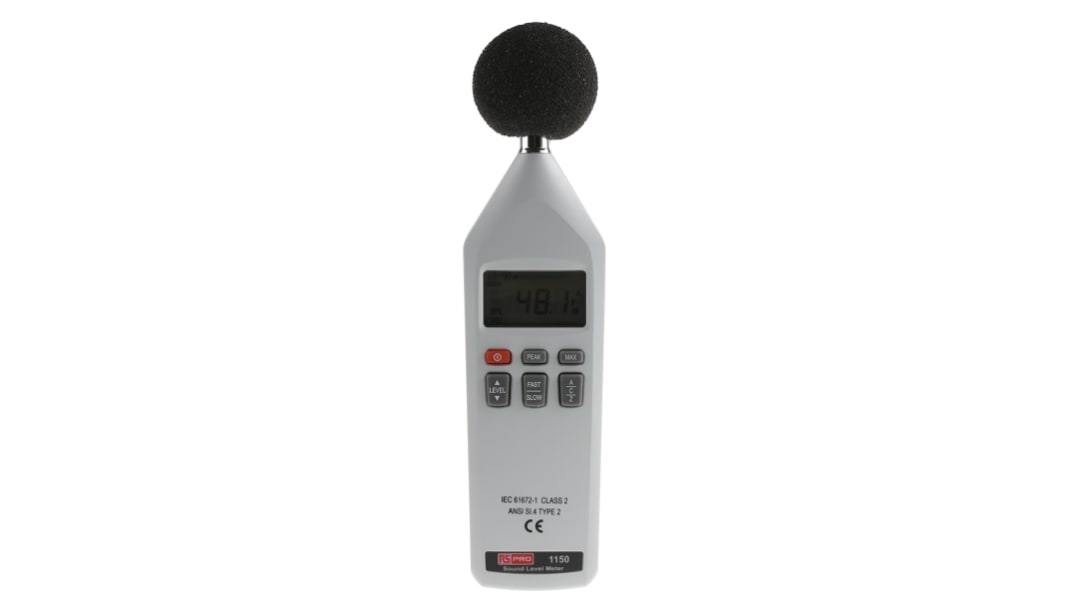

RS PRO RS-1150 Integrating Sound Level Meter

From the trusted RS PRO brand, this RS-1150 sound level meter is a great value, easy-to-use solution to measuring sound levels and ambient noise. Both AC and DC signal outputs are available from a single standard 3.5 mm coaxial socket suitable for use with a frequency analyser, level recorder, FFT analyser or graphic recorder.

The microphone is supplied with a wind muff to help ensure a cleaner recording in challenging environments.

Measured parameters Leq, SEL, SPL MAX, SPL MIN, PH (Peak Hold), L05, L10, L50, L90 and L95 are monitored during measurement and can be viewed selectively by pressing the Leq SEL SPL button.

Features and Benefits

• Dynamic range of 60 dB
• Five ranges from 30 to 130 dB
• A&C frequency weightings
• Impuse/Fast/Slow dynamic characteristic
• 32 000 records data logging function
• Sound level alarm output
• Real time clock with calendar
• Dimensions 265 x 72 x 21 mm
• Weight 310 g approximately

Applications

This RS PRO digital sound meter, or noise level meter, takes accurate readings of ambient noise levels in an environment. There are several reasons you might want to monitor an environmental noise level- from performance analysis to health and safety concerns. In a factory environment that uses heavy machinery, for example, you might want to know if the environment requires employees to use hearing protection. Alternatively, an entertainment venue might want to measure the noise of its sound system to see if it adheres to local noise level compliance. Digital sound level meters are often used in;

• Car industry
• Mechanical industry
• Leisure and music

What is the difference between Class 1 and Class 2 sound level meters?

Generally, Class 1 noise meter devices are able to measure a wider frequency range than Class 2, and so are more suitable for precision applications. However, for most purposes, a Class 2 device offers a potentially more cost-effective noise measurement solution.

RS PRO

RS PRO aims to be your go-to brand when it comes to reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.

When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.

Note

Please note that this model is not supplied with an SD card, USB interface, micro-USB Cable or AC adaptor.

Specifications
Attribute Value
Maximum Sound Level 130dB
Minimum Sound Level 30dB
Resolution 0.1 dB
Weighting A, C, Z
Display Type LCD
Battery Type NEDA 1604
Fast/Slow Time Averaging Both
Data Logging No
Maximum Frequency 8kHz
Maximum Operating Temperature +50°C
Minimum Frequency 31.5 Hz
Minimum Operating Temperature -10°C
Stock check temporarily unavailable - call for stock availability
Price (ex. GST) Each
$ 394.47
(exc. GST)
$ 433.92
(inc. GST)
units
Per unit
1 +
$394.47
