Omron 25 A Solid State Relay, Zero Crossing, DIN Rail, Phototriac, 240 V ac Maximum Load

  • RS Stock No. 794-8726
  • Mfr. Part No. G3PE-225B DC12-24
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

G3PE SSR

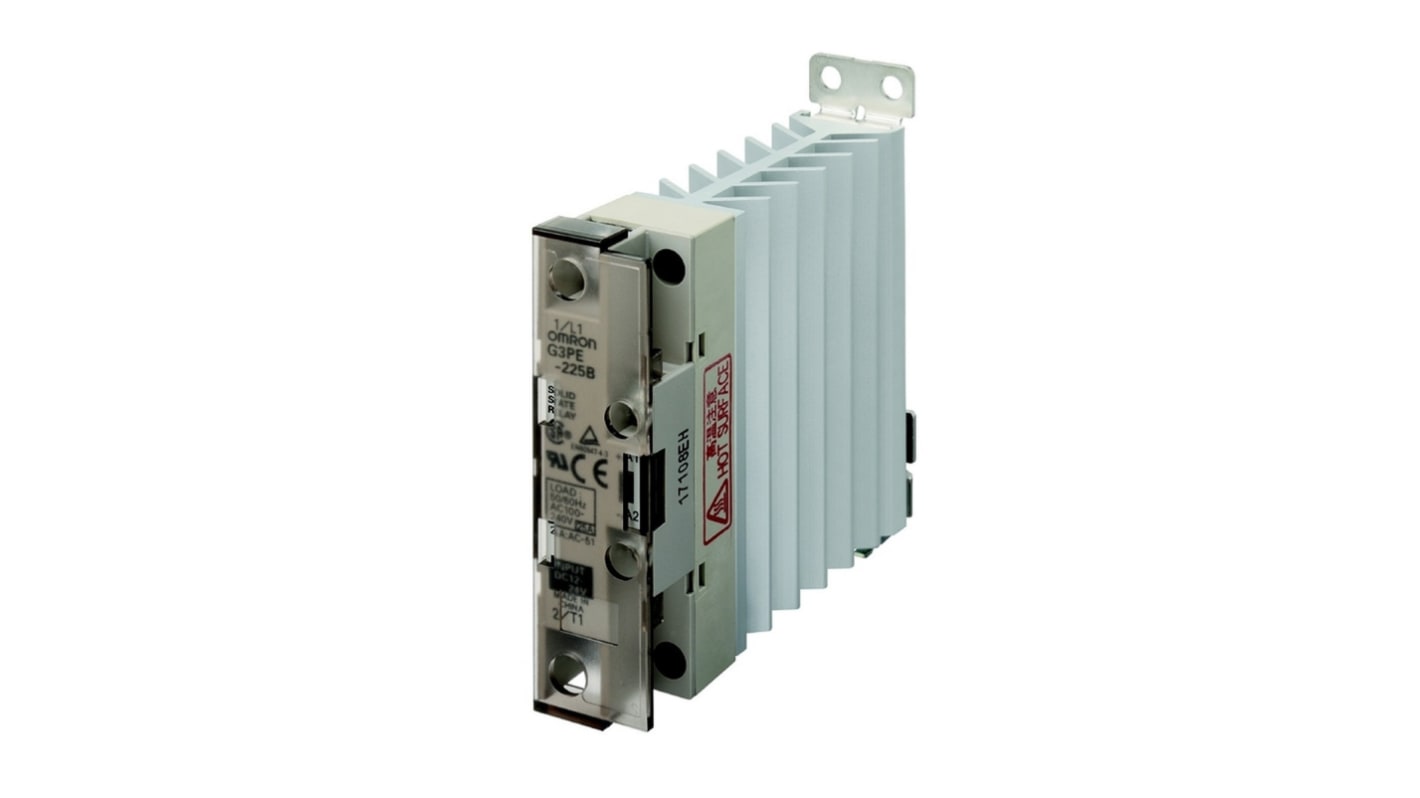

G3PE-225B DC12-24 SSR – Compact Single Phase Solid State Relay.

The G3PE series have a slim compact design complete with heat sinks. Solid state contactors for single phase heaters, reduced installation and available to DIN rail mount or screw mount. RoHS compliant with surge protection.

Features and Benefits of G3PE-225B DC12-24 Compact SSR – Solid State Relay.

• Single phase.
• Phototriac coupler.
• Yellow indicator.
• Rated input voltage 12 to 24 V dc.
• Zero cross function.
• Applicable load 25 A, 100 to 240 V ac. (dependent upon the ambient temperature).
• For heaters.

SSR – Solid State Relay Input Rating at 25°C.

• Operating voltage range 9.6 to 30 V dc.
• Rated input current 7 mA max.
• Must operate voltage 9.6 V dc.
• Must release voltage 1 V dc max.

SSR – Solid State Relay Output.

• Rated load voltage 100 to 240 V ac, 50 / 60 Hz.
• Load voltage range 75 to 264 V ac, 50 / 60 Hz.
• Applicable load current 0.1 to 25 A at 40°C. (dependent upon the ambient temperature).
• Inrush current 220 A, 60 Hz, 1 cycle.
• Resistive load 5 kW at 200 V ac.

Additional Features G3PE-225B DC12-24 Compact SSR Single Phase SSR – Solid State Relay.

• Operate and release time load power source cycle + 1 ms max.
• Output ON voltage drop 1.6 V (RMS) max.
• Leakage current 10 mA max at 200 v ac.
• Vibration resistance 10 to 55 to 10 Hz, 0.375 single amplitude, 0.75 mm double amplitude – DIN rail mounted.
• Shock resistance destruction 294 m/s² DIN rail mounted.
• Operating temperature – ambient -30°C to 80°C, no icing or condensation.
• Relay weight 240 g.

What does Zero Cross Function mean in SSR in Solid State Relays?

Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.

Standards

UL508, CSA22.2, EN 60947-4-3.

Specifications
Attribute Value
Minimum Load Current 0.1 A
Maximum Load Current 25 A
Mounting Type DIN Rail
Series G3PE Three Phase
Minimum Load Voltage 100 V ac
Maximum Load Voltage 240 V ac
Minimum Control Voltage 12 V dc
Maximum Control Voltage 24 V dc
Switching Type Zero Crossing
Terminal Type Screw
Output Device Phototriac
Maximum Turn On Time 1 ms
Dimensions 100 x 22.5 x 100mm
Control Voltage Range 12 → 24 V dc
Operating Temperature Range -30 → +80°C
Load Voltage Range 100 → 240V ac
Off State Leakage Current 10 mA
Length 100
Height 100
Maximum Operating Temperature +80°C
Depth 22.5mm
3 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 128.52
(exc. GST)
$ 141.37
(inc. GST)
units
Per unit
1 - 2
$128.52
3 - 4
$96.39
5 +
$77.11
