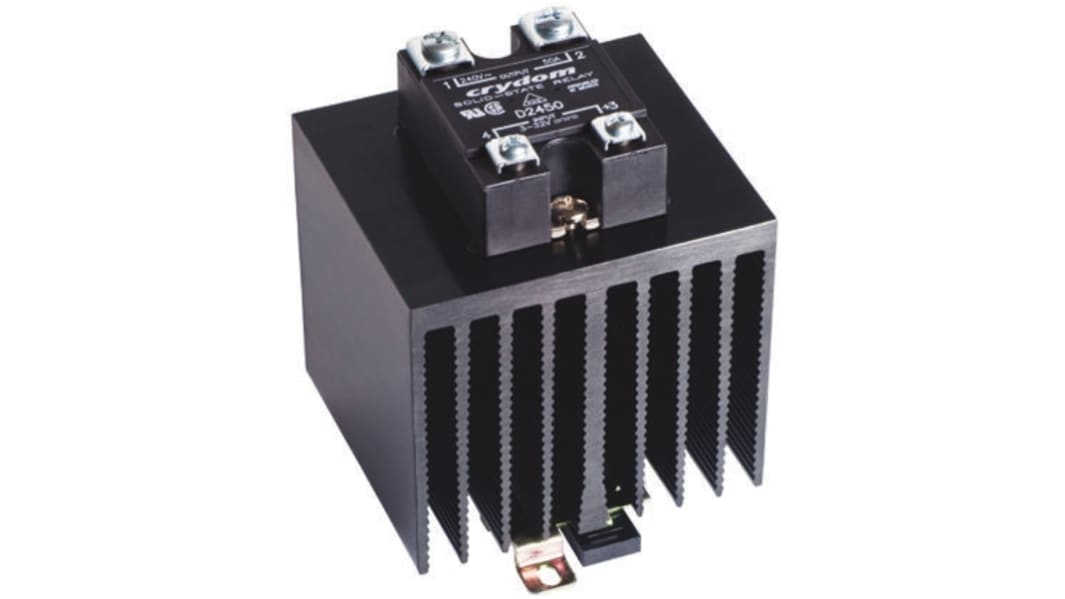

Sensata / Crydom HS122DR Series Solid State Relay, 45 A Load, DIN Rail Mount, 280 V ac Load, 32 V Control
- RS Stock No.:
- 703-4631
- Mfr. Part No.:
- HS122DR-D2450
- Brand:
- Sensata / Crydom
On back order for despatch 21/10/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$145.69
(exc. GST)
$160.26
(inc. GST)
Units | Per unit |
1 + | $145.69 |
- RS Stock No.:
- 703-4631
- Mfr. Part No.:
- HS122DR-D2450
- Brand:
- Sensata / Crydom
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
DIN Rail Mounting with Heatsink - HS122DR Series
45 amp AC output @ 40°C
Single or dual channel
3 to 32Vdc input control voltage
DIN Rail mounted
uL, CSA, VDE, CE approved SSRs
Thermal pad installed
Single or dual channel
3 to 32Vdc input control voltage
DIN Rail mounted
uL, CSA, VDE, CE approved SSRs
Thermal pad installed
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
---|---|
Maximum Load Current | 45 A |
Mounting Type | DIN Rail |
Maximum Load Voltage | 280 V ac |
Minimum Load Voltage | 24 V ac |
Maximum Control Voltage | 32 V |
Minimum Control Voltage | 3 V dc |
Switching Type | Zero Cross |
Control Voltage Range | 3 → 32 V dc |
Minimum Load Current | 0.04 A |
Load Voltage Range | 24 → 280V ac |
Series | HS122DR |
Maximum Turn On Time | 1/2 cycle |
Dimensions | 97 x 90 x 113.4mm |
Height | 113.4mm |
Depth | 90mm |
Off State Leakage Current | 10 mA |
Length | 97mm |
