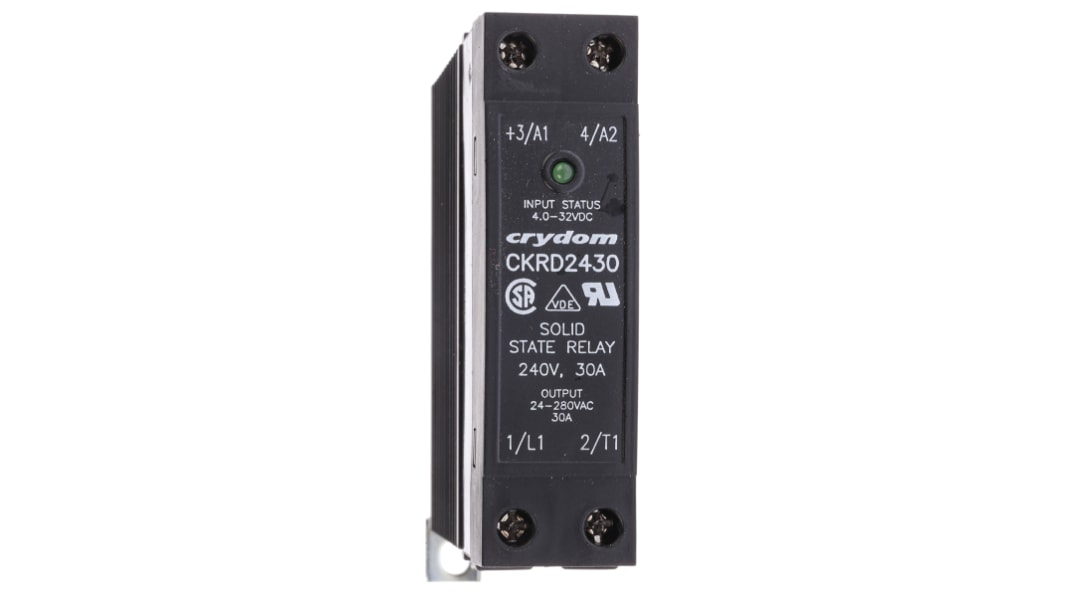

Sensata / Crydom Solid State Relay, 30 A rms Load, DIN Rail Mount, 280 V rms Load, 32 V Control
- RS Stock No.:
- 361-7796
- Mfr. Part No.:
- CKRD2430
- Brand:
- Sensata / Crydom
8 In AU stock for next working day delivery
572 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$170.93
(exc. GST)
$188.02
(inc. GST)
| Units | Per unit |
| 1 - 11 | $170.93 |
| 12 - 24 | $167.91 |
| 25 + | $165.88 |
- RS Stock No.:
- 361-7796
- Mfr. Part No.:
- CKRD2430
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
DIN Rail, SSR, Series CKRA/CKRD, 10 to 30A, a.c. Output
24 to 530Vac switching
Box clamp terminals
Ready to mount and use
Industry standard 22.5mm narrow profile
Operating Temperature Range -30 to +80°C
Box clamp terminals
Ready to mount and use
Industry standard 22.5mm narrow profile
Operating Temperature Range -30 to +80°C
Approvals
UL; CSA; VDE
Sensata | Crydom Solid-State Relay, 280g Weight, 30A Rated Load Current - CKR24 Series - CKRD2430
Use this solid-state relay from Sensata | Crydom to safely switch between loads in your electric circuits. It has a thermally conductive epoxy casing that provides resistance to impact and heat, making it a reliable choice for use in harsh environments. This device has no moving contacts, so there's minimal risk of wear, giving you long-lasting performance. A green LED indicator displays the operational status of your machinery for easy troubleshooting. You'll find this unit used in medical equipment.
Features & Benefits
• Wide operating voltage range between 24 and 280V AC for use in light to medium-duty applications
• Aluminium baseplate is resistant to impact and corrosion
• Zero-cross switching function to generate minimal electrical noise
• Aluminium baseplate is resistant to impact and corrosion
• Zero-cross switching function to generate minimal electrical noise
What's the operating temperature range of this device?
This device has a broad operating temperature range between -40°C and +80°C, so it's suitable for use in demanding environments.
What's the rated load current of this relay?
This component has a maximum load current of 30A, making it a good choice for use in high-powered systems.
Approvals
UL E116950; CSA LR81689; VDE 129156UG; CE; ISO
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 30 A rms |
| Mounting Type | DIN Rail |
| Maximum Load Voltage | 280 V rms |
| Maximum Control Voltage | 32 V |
| Switching Type | Zero Cross |
| Control Voltage Range | 4 → 32 V dc |
| Minimum Load Current | 0.15 A |
| Output Device | SCR |
| Load Voltage Range | 24 → 280V ac |
| Dimensions | 81.9 x 22.5 x 99mm |
| Operating Temperature Range | -40 → +80°C |
| Maximum Operating Temperature | +80°C |
| Length | 81.9mm |
| Depth | 22.5mm |
| Height | 99mm |
| Minimum Operating Temperature | -40°C |
