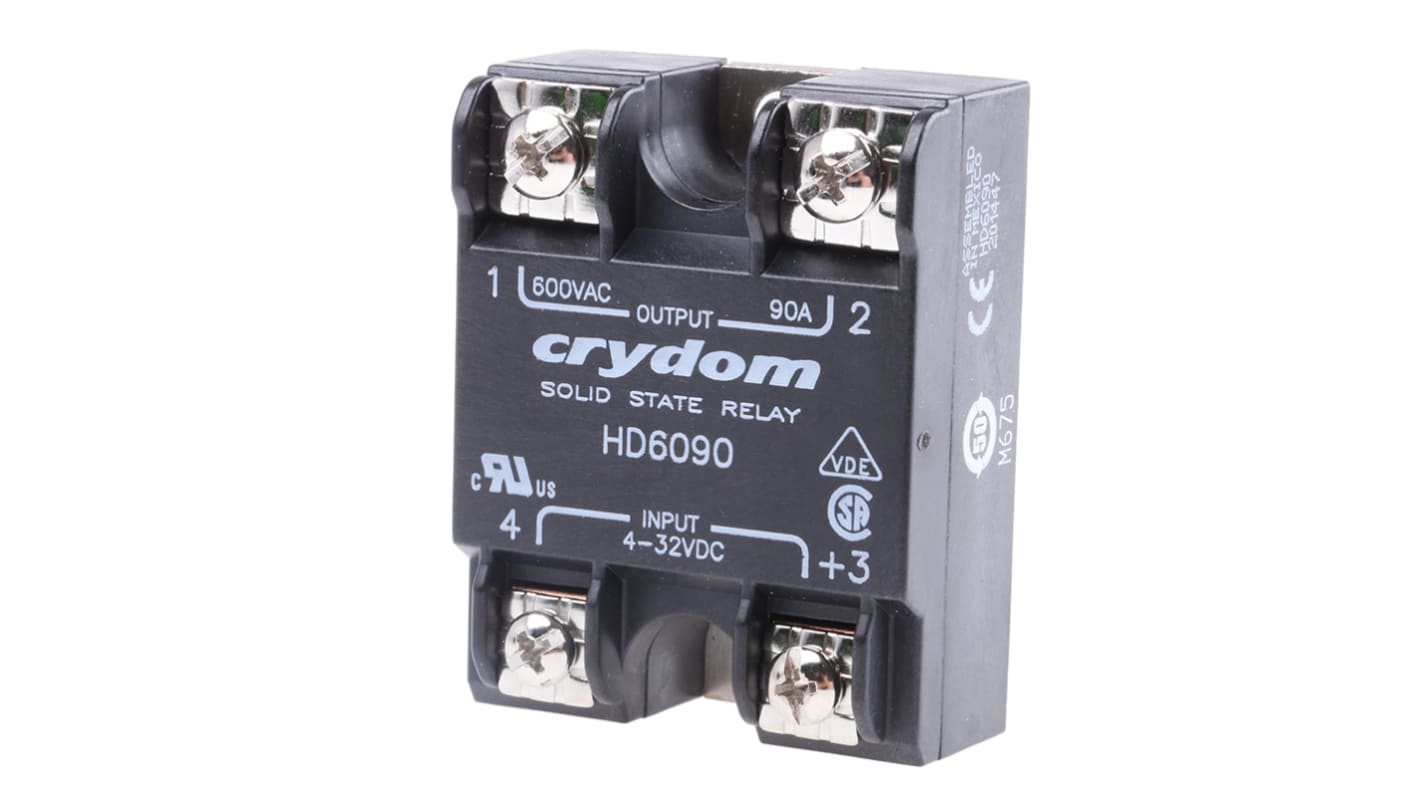

Sensata / Crydom Solid State Relay, 90 A Load, Panel Mount, 660 V ac Load, 32 V Control
- RS Stock No.:
- 291-2270
- Mfr. Part No.:
- HD6090
- Brand:
- Sensata / Crydom
24 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$236.11
(exc. GST)
$259.72
(inc. GST)
| Units | Per unit |
| 1 - 5 | $236.11 |
| 6 - 11 | $229.45 |
| 12 + | $227.70 |
- RS Stock No.:
- 291-2270
- Mfr. Part No.:
- HD6090
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Crydom HA/HD Series Solid State Relays
Crydom HA/HD series robust and versatile panel mount solid state relays. These powerful SSRs have superior thermal performance thanks to the use of DBC technology. The HA/HD series solid state relays feature anti-rotation barriers, flexible control voltage options and a wide range of power ratings.
Features and Benefits
SCR output for heavy industrial loads
Zero Voltage or instantaneous turn-on outputs
UL/CSA/VDE Approved, CE Compliant to EN60950-1
Improved SEMS screw and washer
Anti-rotation barriers
AC or DC control
Direct Bond Copper (DBC) substrate
EMC compliant to Level 3
Direct power lead frame
Epoxy free design
Note
Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet
Caution
Derating will limit the maximum load current at temperatures above 25 °C
Approvals
UL recognised component for Canada and US, VDE
Approvals
UL; C-UL recognised; VDE
Crydom Solid State Relay and Accessories
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 90 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 660 V |
| Minimum Load Voltage | 48 V ac |
| Maximum Control Voltage | 32 V |
| Switching Type | Zero Cross |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 40 mA |
| Output Device | SCR |
| Load Voltage Range | 48 → 660V ac |
| Dimensions | 58.4 x 45.7 x 23mm |
| Length | 58.4mm |
| Maximum Operating Temperature | +80°C |
| Depth | 45.7mm |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +80°C |
| Height | 23mm |
