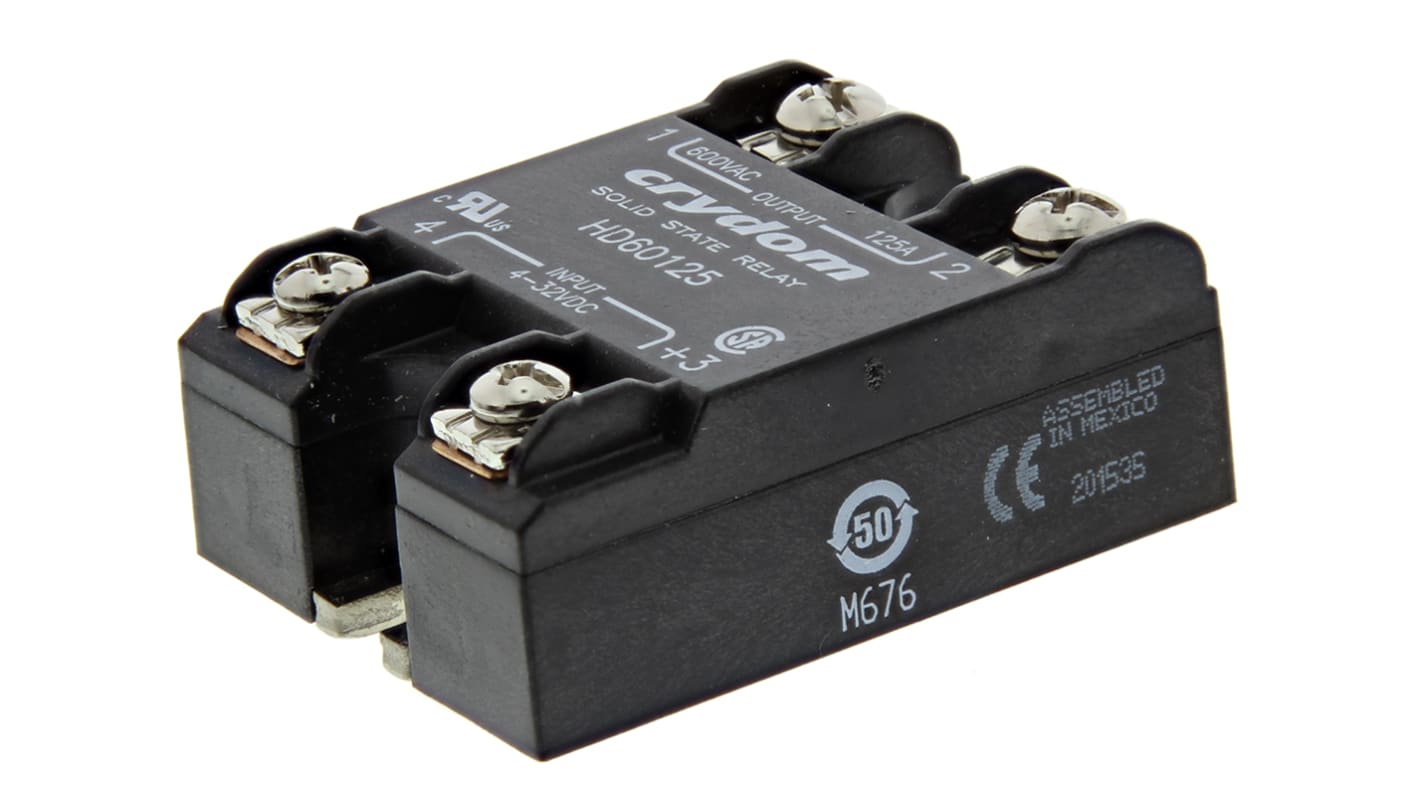

Sensata / Crydom 125 A Solid State Relay, Zero Cross, Panel Mount, SCR, 660 V Maximum Load

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Crydom HA/HD Series Solid State Relays

Crydom HA/HD series robust and versatile panel mount solid state relays. These powerful SSRs have superior thermal performance thanks to the use of DBC technology. The HA/HD series solid state relays feature anti-rotation barriers, flexible control voltage options and a wide range of power ratings.

Features and Benefits

SCR output for heavy industrial loads Zero Voltage or instantaneous turn-on outputs
UL/CSA/VDE Approved, CE Compliant to EN60950-1
Improved SEMS screw and washer
Anti-rotation barriers
AC or DC control
Direct Bond Copper (DBC) substrate
EMC compliant to Level 3
Direct power lead frame
Epoxy free design

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL recognised component for Canada and US, VDE

//media.rs-online.com/t_line/L291184-01.gif
//media.rs-online.com/t_line/LD291184-02.gif

Approvals

UL; C-UL recognised; VDE

Crydom Solid State Relay and Accessories

Specifications
Attribute Value
Minimum Load Current 150 mA
Maximum Load Current 125 A
Mounting Type Panel Mount
Maximum Load Voltage 660 V
Maximum Control Voltage 32 V
Switching Type Zero Cross
Output Device SCR
Dimensions 58.4 x 45.7 x 23mm
Maximum Operating Temperature +80°C
Length 58.4mm
Depth 45.7mm
Control Voltage Range 3 → 32 V dc
Height 23mm
Load Voltage Range 48 → 660V ac
Operating Temperature Range -40 → +80°C
Minimum Operating Temperature -40°C
17 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 184.65
(exc. GST)
$ 203.11
(inc. GST)
units
Per unit
1 - 5
$184.65
6 - 11
$177.35
12 +
$175.41
