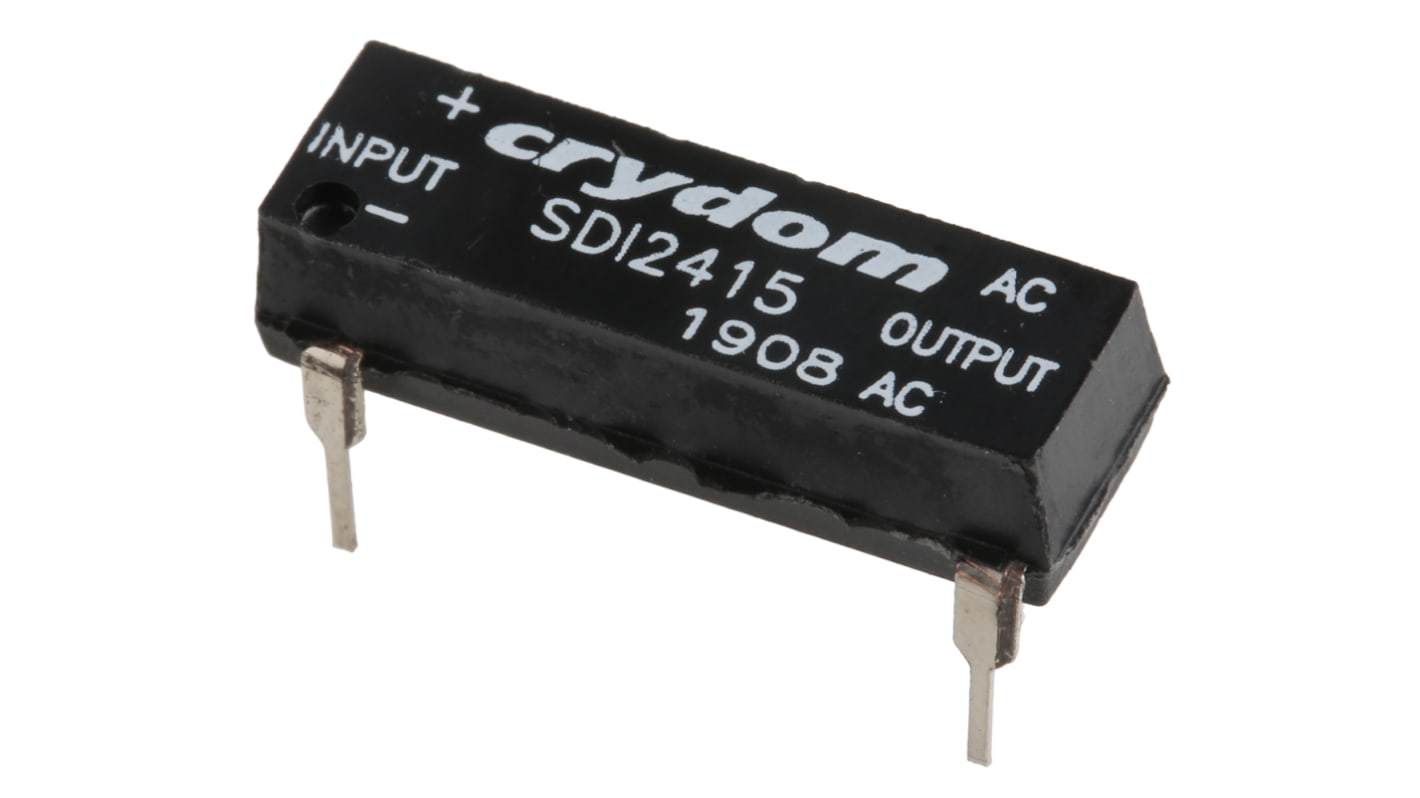

Sensata / Crydom 1.5 A rms Solid State Relay, Zero Cross, PCB Mount, SCR, 280 V rms Maximum Load

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

SDV & SDI Series

DIL package for high density PCB mounting
Zero-Cross switching where stated otherwise Random-fire
SCR output
Input-Output Capacitance 2pF max
Isolation voltage 3.75kV
Dimensions (WxHxD) 6.7x8.6x21.6mm
Operating temperature range -30 to +80°C
Choice of voltage or current control

Approvals

UL, TUV

//media.rs-online.com/t_line/L244901-01.gif

Approvals

UL, TUV

Specifications
Attribute Value
Minimum Load Current 0.025 A
Maximum Load Current 1.5 A rms
Mounting Type PCB Mount
Maximum Load Voltage 280 V rms
Switching Type Zero Cross
Output Device SCR
Dimensions 21.59 x 6.73 x 4.8mm
Depth 6.73mm
Maximum Operating Temperature +80°C
Operating Temperature Range -30 → +80°C
Load Voltage Range 12 → 280V ac
Length 21.59mm
Minimum Operating Temperature -30°C
Height 4.8mm
87 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 38.14
(exc. GST)
$ 41.95
(inc. GST)
units
Per unit
1 - 9
$38.14
10 - 99
$37.20
100 - 249
$36.21
250 - 499
$35.21
500 +
$34.34
