Sensata / Crydom 53TP Series Solid State Relay, 50 A rms Load, Panel Mount, 530 V rms Load, 280 V rms Control
- RS Stock No.:
- 218-1921
- Mfr. Part No.:
- A53TP50D
- Brand:
- Sensata / Crydom
- RS Stock No.:
- 218-1921
- Mfr. Part No.:
- A53TP50D
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

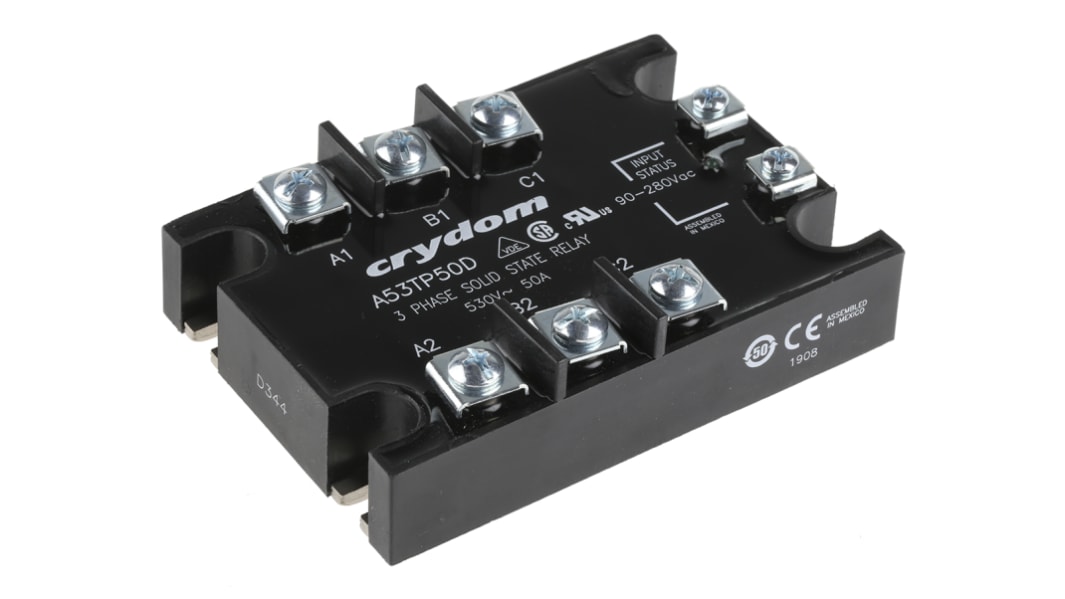

53TP 25-50A, 530Vac, 3 Phase SSRs
High reliability
SCR output
LED status indicator
Direct load switching of motors, heaters and transformers
Dimensions:H30 x W73.4 x D103.8mm
Terminal Type Screw; Saddle Clamp
8pF Input-Output Capacitance
SCR output
LED status indicator
Direct load switching of motors, heaters and transformers
Dimensions:H30 x W73.4 x D103.8mm
Terminal Type Screw; Saddle Clamp
8pF Input-Output Capacitance
Note
Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet
Caution
Derating will limit the maximum load current at temperatures above 25 °C
Approvals
UL, CSA, VDE
Sensata | Crydom Solid-State Relay, 50A Current Rating, 48 to 530V AC Operating Voltage Range - 53TP Series - A53TP50D
Looking for a device to quickly switch electrical loads? Choose this solid-state relay from Sensata | Crydom. It uses electromagnetic energy to control the flow of power into your system, meaning there are no moving parts for reduced wear and a long service life. You can use it in both low and medium-power systems thanks to its broad operating voltage range of 48 to 530V AC. It's commonly used for applications such as pumping operations, automation processes and motor control.
LED input status indicator for ease of monitoring
Compact dimensions of 103.8 (L) x 30 (W) x 73.4mm (H) make it suitable for installation in tight spaces
Light weight of 315g to minimise strain on your equipment
Maximum turn-on and turn-off time of 50ms for rapid switching
Zinc-plated steel screws and saddle clamps for resistance to impact and corrosion
Compact dimensions of 103.8 (L) x 30 (W) x 73.4mm (H) make it suitable for installation in tight spaces
Light weight of 315g to minimise strain on your equipment
Maximum turn-on and turn-off time of 50ms for rapid switching
Zinc-plated steel screws and saddle clamps for resistance to impact and corrosion
Can I use this product in harsh conditions?
Yes. This item has a broad operating temperature range between -40°C and +80°C, so it's suitable for use in demanding environments.
Approvals
UL; C-UL Recognised; VDE
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
---|---|
Maximum Load Current | 50 A rms |
Mounting Type | Panel Mount |
Maximum Load Voltage | 530 V rms |
Minimum Load Voltage | 48 V ac |
Maximum Control Voltage | 280 V rms |
Minimum Control Voltage | 90 V rms |
Switching Type | Zero Cross |
Control Voltage Range | 90 → 280 V ac |
Minimum Load Current | 0.05 A |
Terminal Type | Screw |
Output Device | SCR |
Load Voltage Range | 48 → 530V ac |
Series | 53TP |
Maximum Turn On Time | 50 ms |
Dimensions | 103.8 x 73.4 x 30mm |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +80°C |
Length | 103.8mm |
Off State Leakage Current | 10 mA |
Depth | 73.4mm |
Capacitance | 8pF |
Height | 30mm |
Standards Met | CE, CSA, RoHS Compliant |
Maximum Operating Temperature | +80°C |
