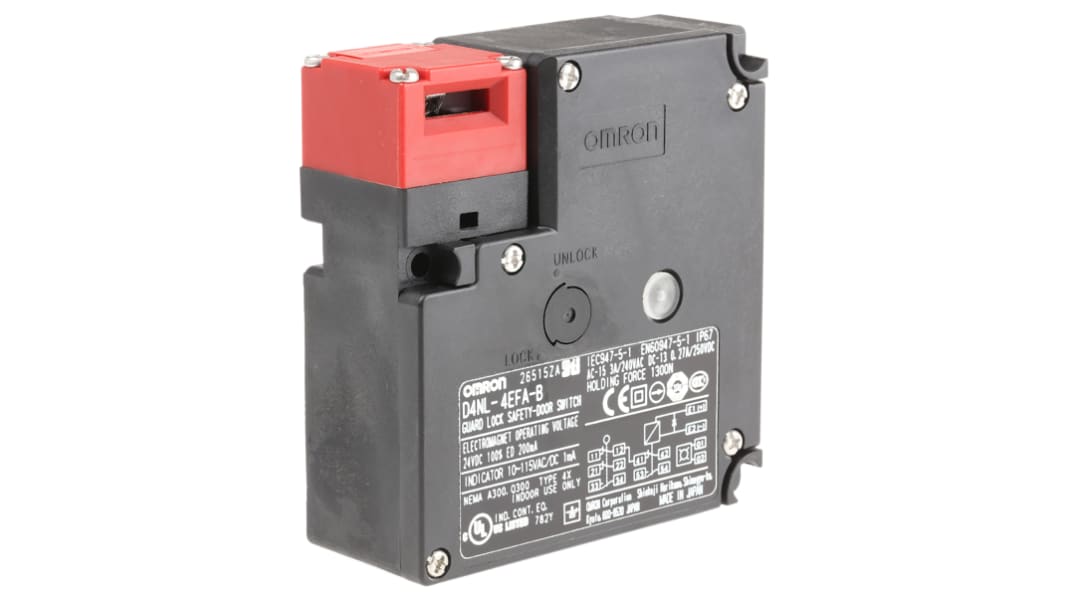

D4NL Solenoid Interlock Switch Power to Unlock 24 V dc
- RS Stock No. 746-7283
- Mfr. Part No. D4NL-4EFA-B
- Manufacturer Omron
D4NL Safety Guard-lock Door Switch
A lead free, environmentally friendly solenoid interlock switch available with either a solenoid lock/mechanical release mechanism (power to lock) or a mechanical lock/solenoid release mechanism (power to unlock). Sliding, hinged and removable guarding devices such as grids, hoods or doors can be monitored and locked in place with these safety guard lock switches.
Safety door switch with either electromagnetic lock or unlock mechanism
Four head mounting directions possible
Four built-in contacts
Strong key holding force, 1300 N
For standard loads and micro loads
IP67 rating (applies to switch only, key hole is IP00)
Contains no harmful substances, such as lead or cadmium, reducing the burden on the environment
Note
Actuators sold separately.
Stock nos. 746-7289 and 746-7132 have a special release key included.
Standards
IEC/EN60947-5-1
Approvals
cULus, TUV, CE, CCC
| Attribute | Value |
|---|---|
| Series | D4NL |
| Power to Lock / Unlock | Power to Unlock |
| Actuator Type | Various Options |
| Conduit Entry | M20 |
| Length | 88.5mm |
| Width | 95mm |
| Depth | 35.5mm |
| Supply Voltage | 24 V dc |
| Auxiliary Contacts | NC/NO |
| Safety Contacts | 2NC/1NO |
| Dimensions | 88.5 x 95 x 35.5 mm |
| IP Rating | IP67 |
| Housing Material | Plastic |
