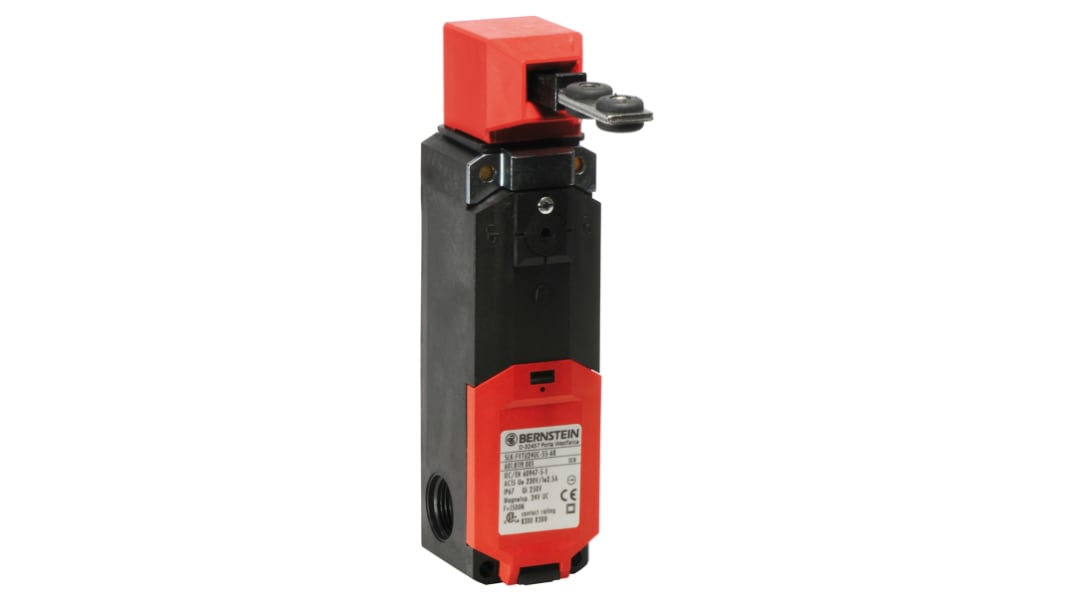

SLK Solenoid Interlock Switch Power to Unlock 110 V ac, 230 V ac

  • RS Stock No. 136-3178
  • Mfr. Part No. 6018169055
  • Manufacturer Bernstein AG
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

SLK Series Safety Limit Switches

Professional range of Bernstein safety limit switches from the SLK series. The limit switches incorporate triple coded anti-tamper mechanism and spring loaded terminals. All models are highly reliable and excellent quality.

Features & Benefits

Cable entry: 3 x M20 x 1.5
Separate Actuator (Stainless Steel)
Protection rating IP67
Spring-clamp Connection
Contact Type: 2 NC, 2NO
Actuators rotation in increments of 90°

Safety Limit Switch

Specifications
Attribute Value
Series SLK
Pole Configuration 4P
Power to Lock / Unlock Power to Unlock
Actuator Included No
Actuator Type Various Options
Conduit Entry M20
Length 42.5mm
Width 51mm
Depth 184mm
Supply Voltage 110 V ac, 230 V ac
Maximum AC Voltage 110 V, 230 V
Power Consumption 8 VA
Auxiliary Contacts 2NC
Dimensions 42.5 x 51 x 184 mm
Standards Met IEC/EN 60529, UL 94 V-0
Safety Contacts 2NC
Housing Material Plastic
IP Rating IP67
2 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 343.37
(exc. GST)
$ 377.71
(inc. GST)
units
Per unit
1 +
$343.37
