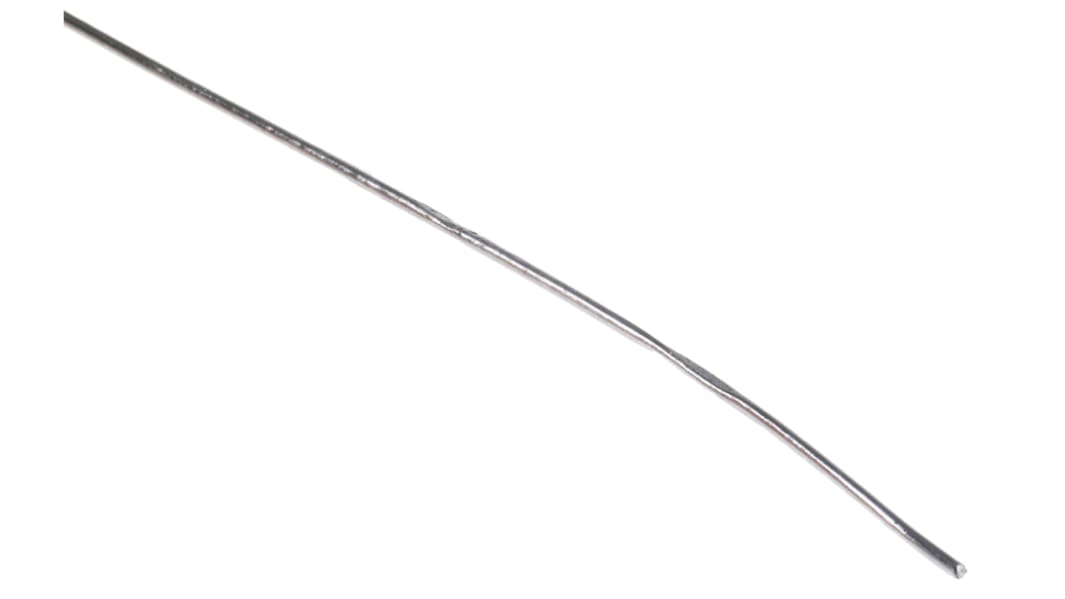

Multicore 0.5mm Wire Lead solder, +183°C Melting Point

  • RS Stock No. 436-4881
  • Mfr. Part No. 442570
  • Manufacturer Multicore
Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): MY
Product Details

60/40 Tin-Lead Solder

Tin lead solder, also known as soft solder, is an alloy suitable for high-quality work by professionals to repair or rework intermetallic bonds that require a low melting temperature. This solder wire enables you to achieve superior strength and thermal resistance. The flux properties in this product, are made from high-quality materials that are reliable and easy to use. Making it ideal for use by professionals for common electrical soldering.

Features & Benefits

5 cores of Ersin® flux Excellent Joint Strength
Easy to use

Product Application Information

Used for soldering in various areas of the electronics industry.

Standards

Conforms to BS441 Type 1, DTD599A and DIN8516.

Approvals

BS441; Type 1 DTD599A; DIN8516

Standards

Conforms to BS441 Type 1, DTD599A and DIN8516.

Specifications
Attribute Value
Wire Diameter 0.5mm
Model Number 362
Percent Lead 40%
Product Form Wire
Melting Point 183°C
Percent Tin 60%
Flux Type Rosin Based
Product Weight 250g
Flux Content Percent 3%
