Facom 1/4 in Square Handle

  • RS Stock No. 250-5844
  • Mfr. Part No. R.120A
  • Manufacturer Facom
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

1/4 in Ratchet Accessories

Introducing professional quality, series of accessories to adapt 1/4" ratchet. As all other hand tools from Facom, these accessories are individually tested and ensure the best-in-class performance and long-life operation. Manufactured from the highest grade steel guarantees the maximum performance, durability and safety of use.

Accessories are available in a number of variants:

T-Handle:

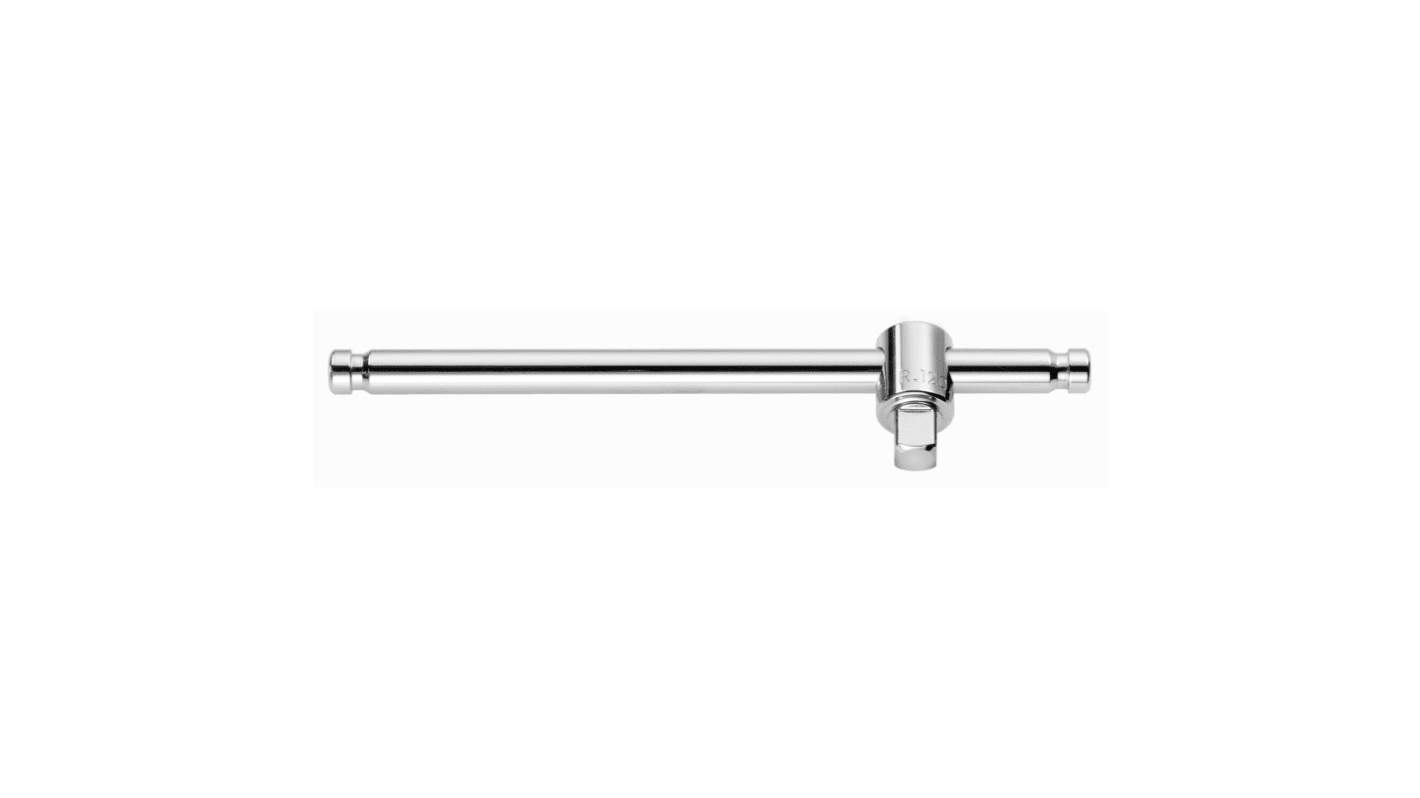

Facom R.120 - (250-5844) A brake housed in the head holds the sliding rod which can thus be transformed into a T- or an L-shaped spanner. 1/4" square drive. Length 115 mm.
(Standards: NF ISO 3315, ISO 3315, DIN 3122, ASME B107.10)

Extension pieces available in 3 lengths:

Facom R.209 - (755-4153) - Length: 55 mm
Facom R.210 - (250-7519) - Length: 100 mm
Facom R.215 - (250-5872) - Length: 155 mm
(Standards : NF ISO 3316, ISO 3316, DIN 3123, ASME B107.10)


Flexible Extension:

Facom R.216 - (755-4096) A 1/4" 150 mm piece to access nuts that are difficult to reach. Not for use with powerful tightenings: max. 2.8 N.m.
(Standards: ASME B107.10)


Universal joint:

Facom R.240 - (250-5888) A spring-stiffened joint keeps it in position to access hard-to-reach places. Overall length 33 cm
(Standards: NF ISO 3316, ISO 3316, DIN 3123, ASME B107.10

Snap Ring Bit-Holder Socket:

Facom R.235 - (250-7547) Fitted with clips to hold 1/4" hexagonal drive screwdriver bits for frequent removal.
(Standards: NF ISO 2725-1, NF ISO 1173, ISO 2725-1, ISO 1173, DIN 3124)

Features and Benefits:

• Bright Chrome finish
• Compatible with all 1/4" ratchet wrenches
• Professional quality covered by a Facom lifetime guarantee

Range of individual accessories to adapt to 1/4" ratchet:

- R.120 T-Handle (250-5844)
A brake housed in the head holds the sliding rod which can thus be transformed into a T- or an L-shaped spanner. 1/4" square drive. Length 115 mm.

- R.209, R.210 & R.215 Extension Pieces (755-4153, 250-7519 & 250-5872)
Available in 3 lengths: 55 mm for reference R.209, 100 mm for reference R.210 and 150 mm for reference R.215.

- R.240A Universal Joint (250-5888)
Offering a spring-stiffened joint that keeps it in position to access hard-to-reach places. Overall length 33 cm.

- R.216 Flexible Extension (755-4096)
A 1/4" 150 mm piece to access nuts that are difficult to reach. Not for use with powerful tightenings: max. 2.8 N.m.

- R.235 Socket Bit-Holder (250-7547)
Fitted with clips to hold 1/4" hexagonal drive screwdriver bits.

Specifications
Attribute Value
Drive Size 1/4 in
Type Handle
Drive Type Square
Overall Length 115 mm
Sub Type T-Handle
Finish Chrome
4 : Next working day (AU stock)
4 : 5 working days (Global stock)
Price (ex. GST) Each
$ 24.15
(exc. GST)
$ 26.57
(inc. GST)
units
Per unit
1 +
$24.15
