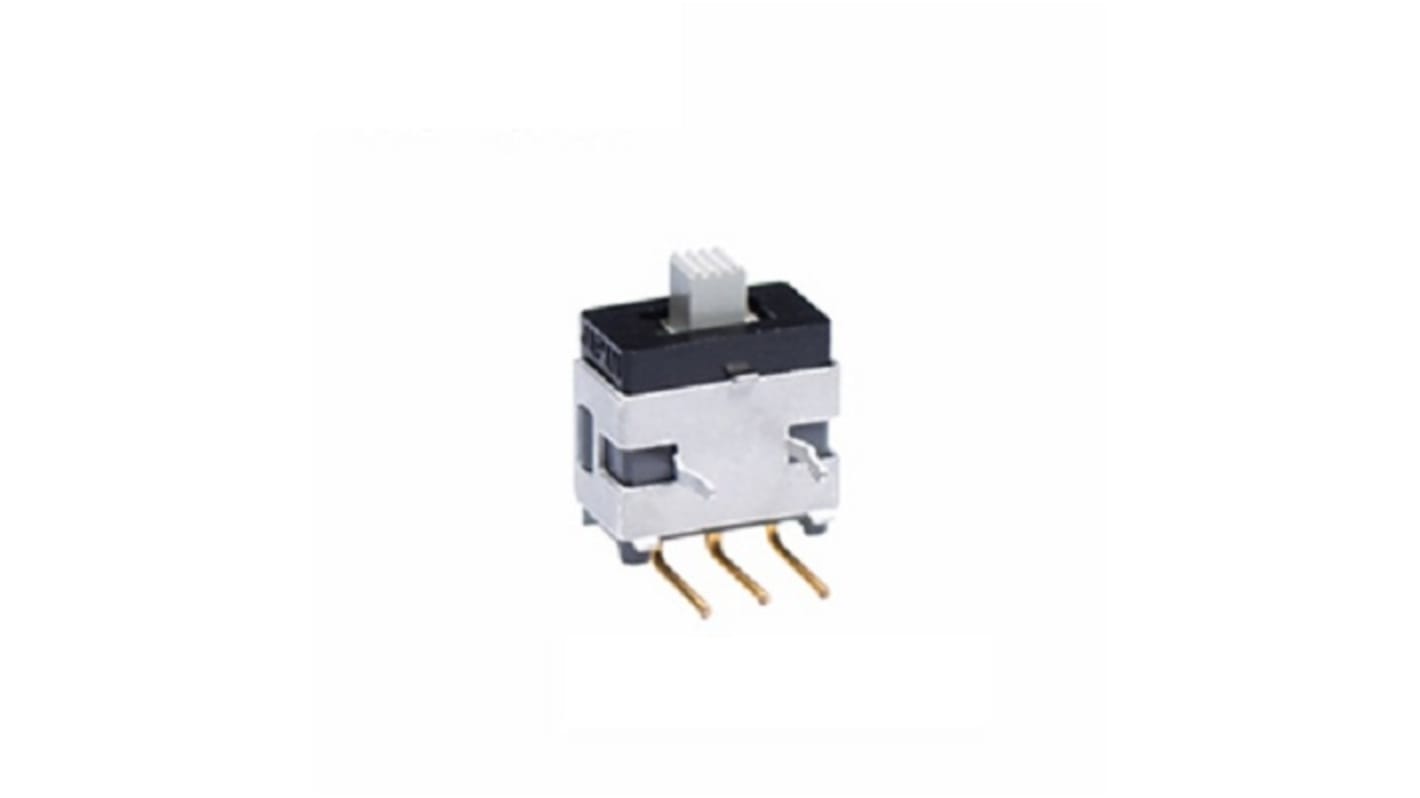

NKK Switches PCB Slide Switch SPDT On-Off-On 100 mA @ 28 V ac/dc Slide

RS Stock No.:: 428-9623
Mfr. Part No.:: AS-13AH
Brand:: NKK Switches

NKK Switches PCB Slide Switch SPDT On-Off-On 100 mA @ 28 V ac/dc Slide

53 In Global stock for delivery within 5 working day(s)

Added

Price (ex. GST) Each

$8.47

(exc. GST)

$9.32

(inc. GST)

Units	Per unit
1 - 99	$8.47
100 - 249	$8.33
250 - 499	$8.00
500 +	$7.65

RS Stock No.:: 428-9623
Mfr. Part No.:: AS-13AH
Brand:: NKK Switches

Technical data sheets

NKK Subminiature Slides Series AS Data Sheet

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

Subminiature Gold Contact AS Series

Very compact structure, less than 9.1mm in height excluding actuator
Pitch between terminals 2.54mm x n
Anti-static resin used at head of main body
High contact reliability maintained by U.S. patent contact mechanism
Certification: IECQ

Specifications

Attribute	Value
Contact Configuration	Single Pole Double Throw (SPDT)
Mounting Type	PCB
Switch Operation	On-Off-On
Contact Current Rating	100 mA @ 28 V ac/dc
Terminal Type	Through Hole
Actuator Type	Slide
Contact Resistance	50mΩ
Mechanical Life	50000Operations
Maximum Operating Temperature	+85°C
Operating Temperature Range	-30 → +85°C
Minimum Operating Temperature	-30°C
Actuator Material	Glass Fibre Reinforced PA
Contact Material	Gold Plated Phosphor Bronze
