Surface Mount Slide Switch Double Pole Double Throw (DPDT) 200mA Slide

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

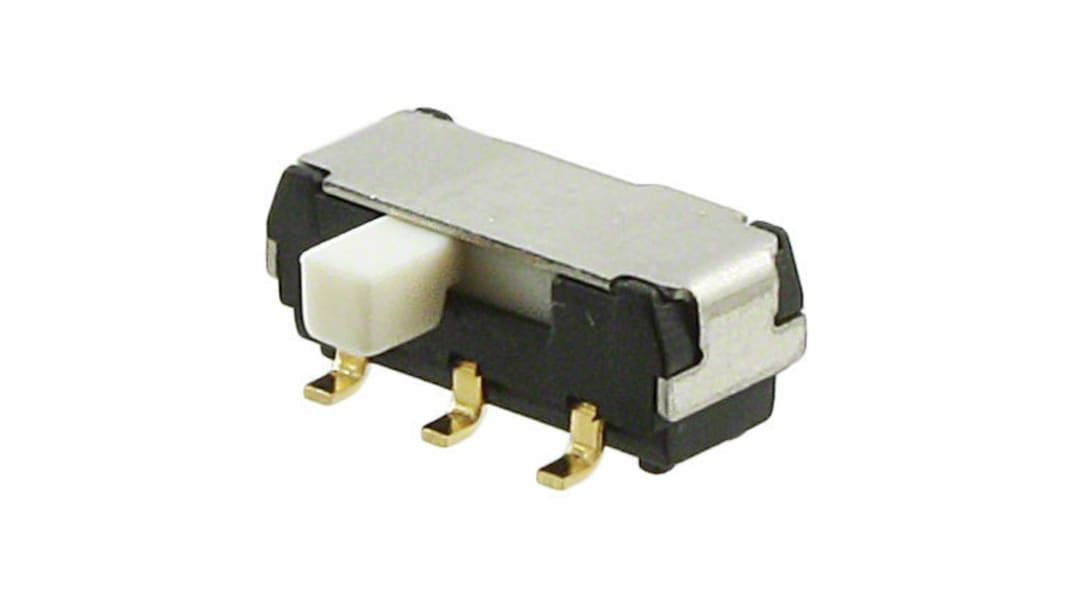

Copal Electronics CL-SB-22B-11 is a DPDT 2-position slide switch having DC current rating of 2000mA. The contact material is Copper whereas the contact finish is Silver. Its polyamide (PA),nylon actuator is 2mm in length. It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. CL-SB-22B-11 DPDT slide switch adopted twin-contact mechanism. These switches are ROHS compliant. CL-SB-22B-11 DPDT slide switches consists of 500 pieces per reel which weighs 5 grams.

On-On switch function with 10,000 electrical life cycles with an operating force of 153gf
Standardization of the silver as well as gold contacts
Uses a heat-resistant resin to support reflow soldering mounting
The minimum insulation resistance is 100MΩ and maximum contact resistance is 50mΩ
Switch Travel Time is 200mm

Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Mounting Type Surface Mount
Contact Current Rating 200mA
Terminal Type Gull Wing
Actuator Type Slide
Length 8.5mm
Width 5.5mm
Depth 3.5mm
Dimensions 8.5mm x 5.5mm x 3.5mm
Contact Resistance 50mΩ
Mechanical Life 10000Operations
Voltage Rating 12V
Maximum Operating Temperature +85°C
Actuator Material Polyamide
Minimum Operating Temperature -40°C
Contact Material Silver
Operating Temperature Range -40 → +85°C
