- RS Stock No.:
- 179-6859
- Mfr. Part No.:
- CL-SB-12B-02
- Brand:
- Nidec Components
10 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$2.61
(exc. GST)
$2.87
(inc. GST)
Units | Per unit | Per Pack* |
5 - 20 | $2.61 | $13.05 |
25 - 45 | $2.546 | $12.73 |
50 + | $2.504 | $12.52 |
*price indicative |
- RS Stock No.:
- 179-6859
- Mfr. Part No.:
- CL-SB-12B-02
- Brand:
- Nidec Components
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN

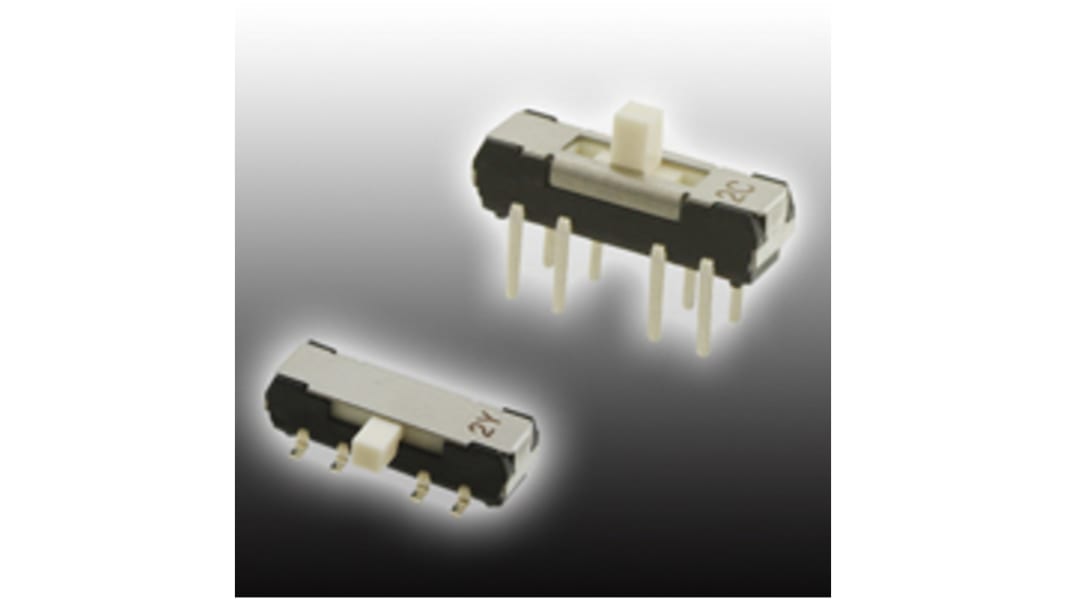

Product Details
Wide variety (circuit composition, Operation Direction, terminal shape: J-hook, Gull Wing, Through hole pins)
Standardization of the silver contacts as well as gold contacts
Stroke is 2 mm
Using heat-resistant resin to support reflow soldering mounting
Adopted Twin-contacts mechanism
Standardization of the silver contacts as well as gold contacts
Stroke is 2 mm
Using heat-resistant resin to support reflow soldering mounting
Adopted Twin-contacts mechanism
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPDT |
Mounting Type | Surface Mount |
Contact Current Rating | 200 (Non-Switching) mA, 200 (Switching) mA |
Terminal Type | Gull Wing |
Actuator Type | Slide |
Length | 8.5mm |
Width | 3.5mm |
Depth | 5.5mm |
Dimensions | 8.5 x 3.5 x 5.5mm |
Contact Resistance | 70 (Gold)mΩ |
Voltage Rating | 50V dc |
Maximum Operating Temperature | +85°C |
Actuator Material | Polyamide |
Minimum Operating Temperature | -40°C |
Contact Material | Copper Alloy |
Operating Temperature Range | -40 → +85°C |
