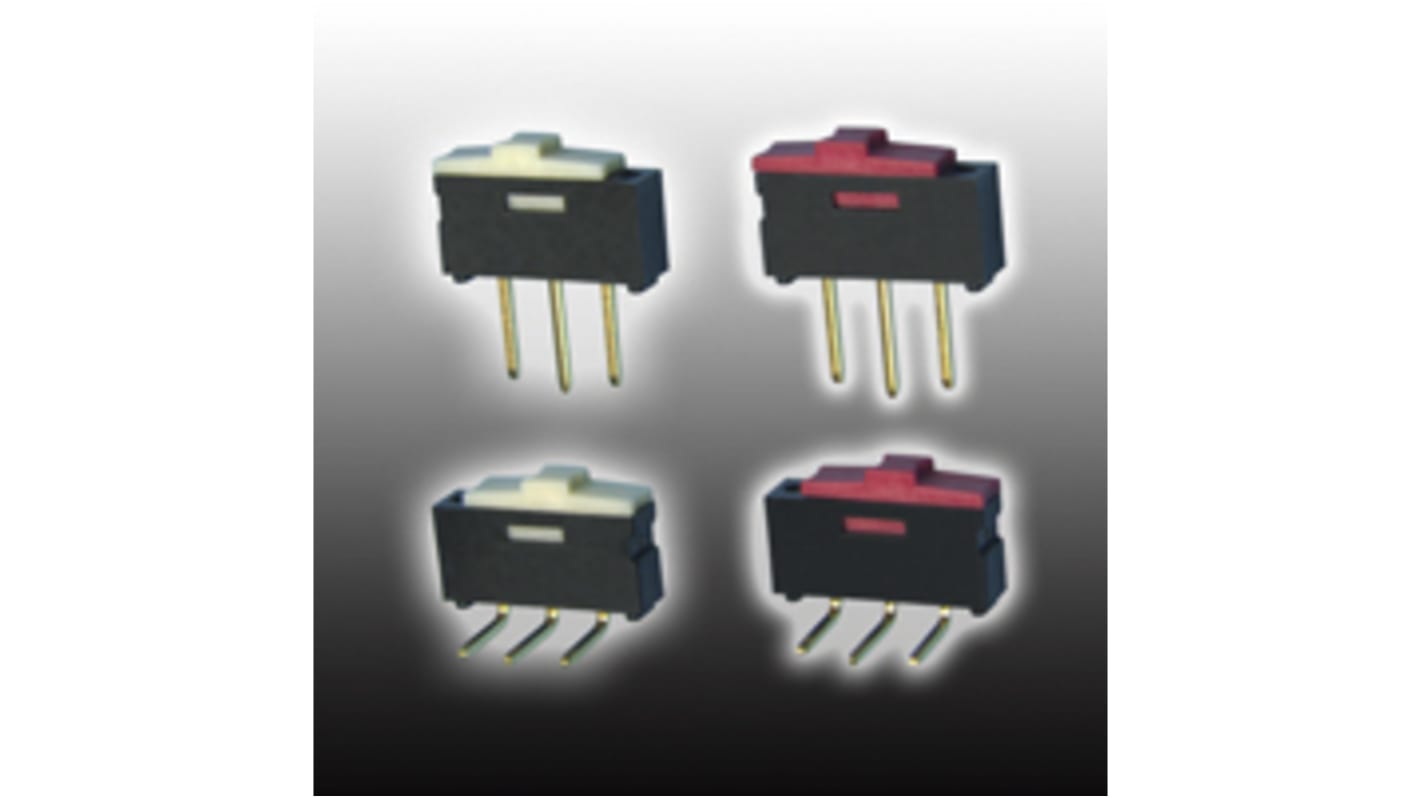

Nidec Components Through Hole Slide Switch SPDT 500 (Non-Switching) mA, 500 (Switching) mA Slide
- RS Stock No.:
- 179-6734
- Mfr. Part No.:
- CL-SA-12C-02
- Brand:
- Nidec Components
20 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$6.052
(exc. GST)
$6.657
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 - 20 | $6.052 | $30.26 |
| 25 - 45 | $5.90 | $29.50 |
| 50 + | $5.81 | $29.05 |
| *price indicative | ||
- RS Stock No.:
- 179-6734
- Mfr. Part No.:
- CL-SA-12C-02
- Brand:
- Nidec Components
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Correspond to rating current 500mA
Possible to continue mounting with 2.54 mm pitch
Possible to continue mounting with 2.54 mm pitch
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Mounting Type | Through Hole |
| Contact Current Rating | 500 (Non-Switching) mA, 500 (Switching) mA |
| Terminal Type | PC Pin |
| Actuator Type | Slide |
| Length | 10mm |
| Width | 2.54mm |
| Depth | 6.4mm |
| Dimensions | 10 x 2.54 x 6.4mm |
| Contact Resistance | 22mΩ |
| Mechanical Life | 10000 (No Load) cycles, 2000 (Load) cycles |
| Voltage Rating | 50V dc |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Copper Alloy |
| Actuator Material | Polyamide |
