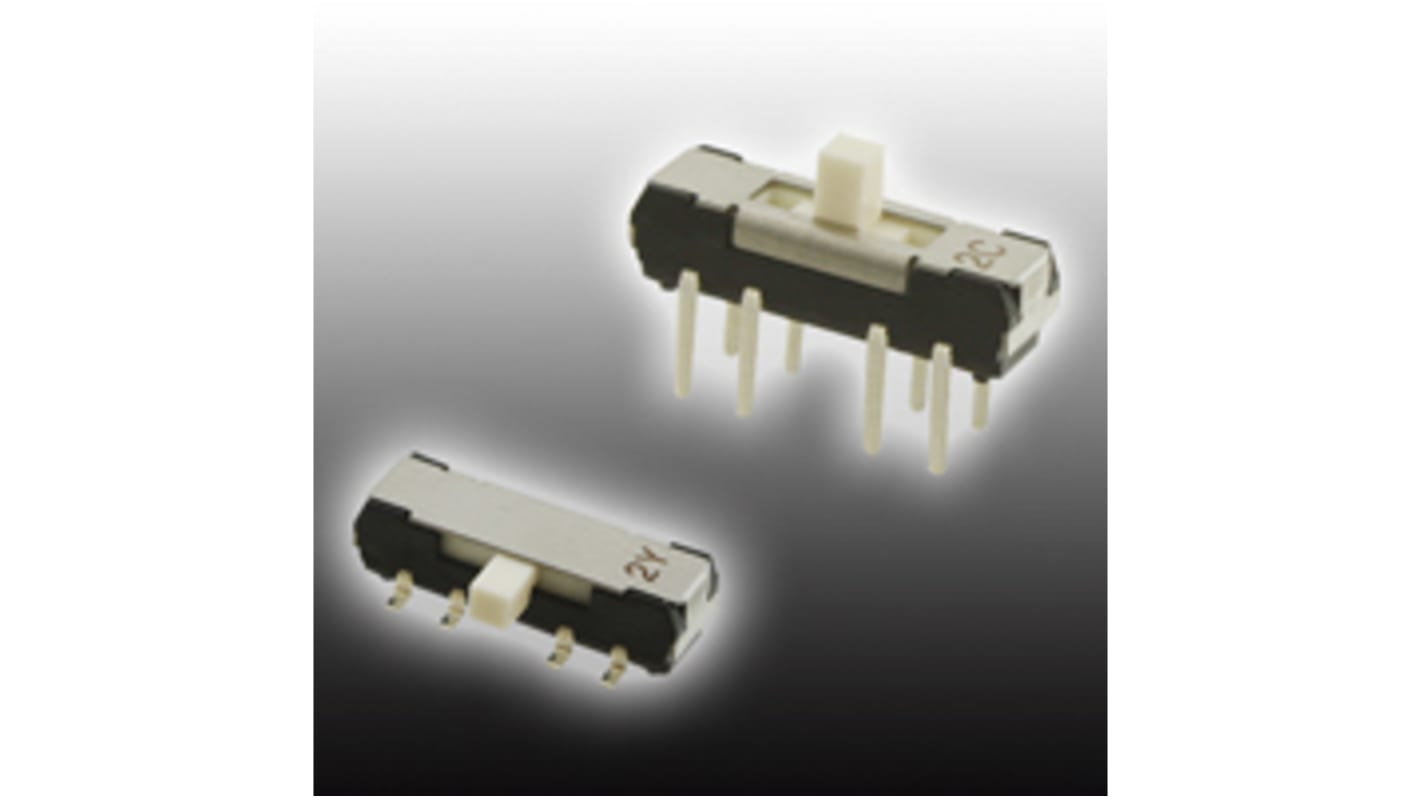

Surface Mount Slide Switch DP3T 200 (Non-Switching) mA, 200 (Switching) mA Slide

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Wide variety (circuit composition, Operation Direction, terminal shape: J-hook, Gull Wing, Through hole pins)
Standardization of the silver contacts as well as gold contacts
Stroke is 2 mm
Using heat-resistant resin to support reflow soldering mounting
Adopted Twin-contacts mechanism

Specifications
Attribute Value
Contact Configuration DP3T
Mounting Type Surface Mount
Contact Current Rating 200 (Non-Switching) mA, 200 (Switching) mA
Actuator Type Slide
Length 12mm
Width 3.5mm
Depth 5.5mm
Dimensions 12 x 3.5 x 5.5mm
Contact Resistance 52 (Silver)mΩ
Voltage Rating 50V dc
Maximum Operating Temperature +85°C
Operating Temperature Range -40 → +85°C
Contact Material Copper Alloy
Actuator Material Polyamide
Minimum Operating Temperature -40°C
On back order for despatch 21/12/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each (In a Pack of 5)
Was $10.652
$ 2.43
(exc. GST)
$ 2.67
(inc. GST)
units
Per unit
Per Pack*
5 - 245
$2.43
$12.15
250 - 495
$2.312
$11.56
500 +
$2.174
$10.87
*price indicative
