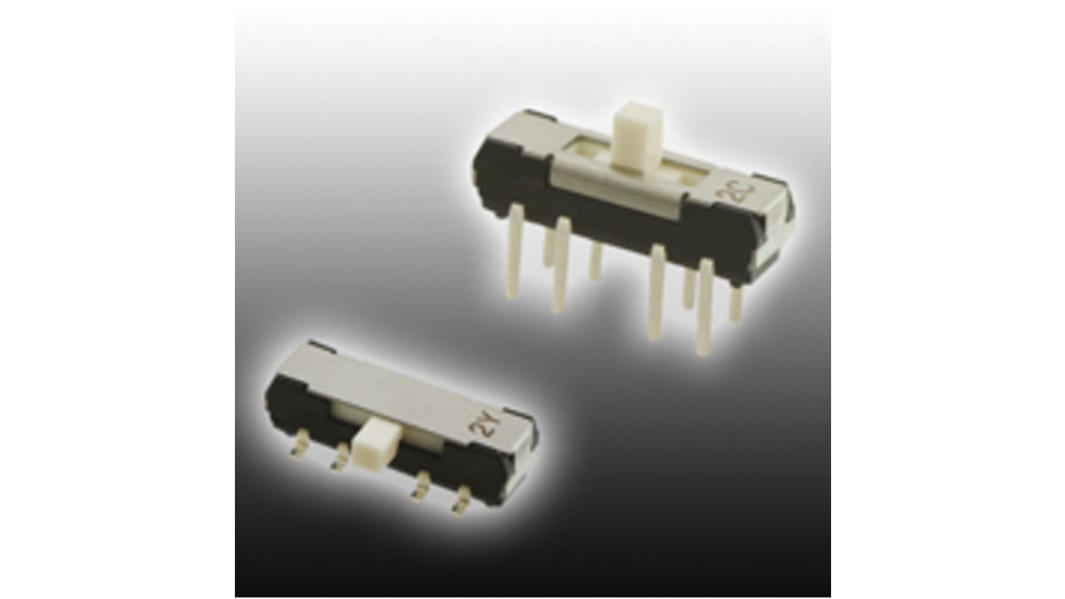

Nidec Components Surface Mount Slide Switch SPDT 200 (Non-Switching) mA, 200 (Switching) mA Slide

RS Stock No.:: 179-6695
Mfr. Part No.:: CL-SB-12A-02
Brand:: Nidec Components

Nidec Components Surface Mount Slide Switch SPDT 200 (Non-Switching) mA, 200 (Switching) mA Slide

On back order for despatch 13/09/2024, delivery within 5 working days from despatch date.

Added

Price (ex. GST) Each (In a Pack of 5)

$2.61

(exc. GST)

$2.87

(inc. GST)

Units	Per unit	Per Pack*
5 - 20	$2.61	$13.05
25 - 45	$2.546	$12.73
50 +	$2.508	$12.54
*price indicative

RS Stock No.:: 179-6695
Mfr. Part No.:: CL-SB-12A-02
Brand:: Nidec Components

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Wide variety (circuit composition, Operation Direction, terminal shape: J-hook, Gull Wing, Through hole pins)
Standardization of the silver contacts as well as gold contacts
Stroke is 2 mm
Using heat-resistant resin to support reflow soldering mounting
Adopted Twin-contacts mechanism

Specifications

Attribute	Value
Contact Configuration	SPDT
Mounting Type	Surface Mount
Contact Current Rating	200 (Non-Switching) mA, 200 (Switching) mA
Actuator Type	Slide
Length	8.5mm
Width	3.5mm
Depth	5.5mm
Dimensions	8.5 x 3.5 x 5.5mm
Contact Resistance	70 (Gold)mΩ
Voltage Rating	50V dc
Actuator Material	Polyamide
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Contact Material	Copper Alloy
Operating Temperature Range	-40 → +85°C
