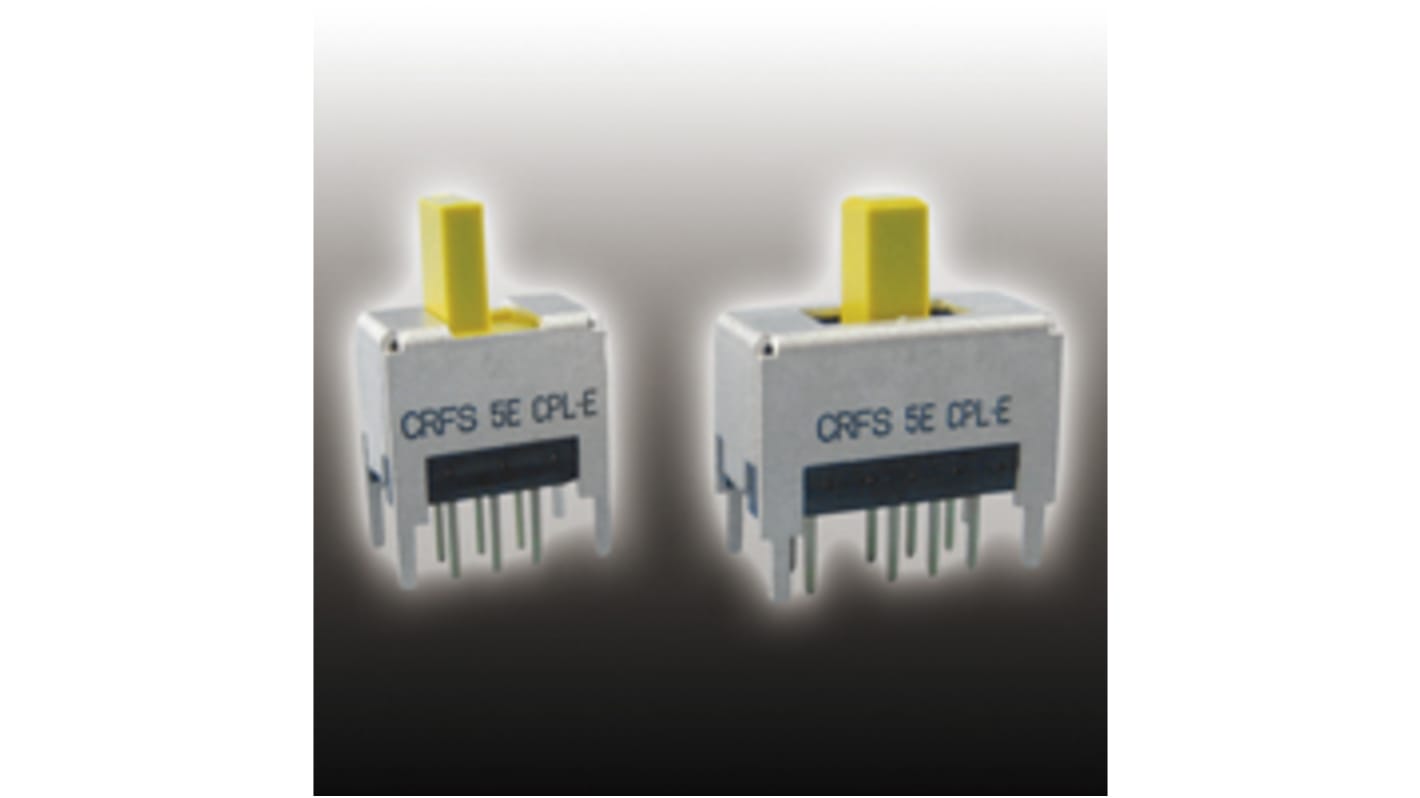

Nidec Components Through Hole Slide Switch DP3T 100 (Non-Switching) mA, 100 (Switching) mA Slide

RS Stock No.:: 179-6362
Mfr. Part No.:: CRFS-2204W
Brand:: Nidec Components

Nidec Components Through Hole Slide Switch DP3T 100 (Non-Switching) mA, 100 (Switching) mA Slide

On back order for despatch 09/08/2024, delivery within 5 working days from despatch date.

Added

Price (ex. GST) Each (In a Tray of 50)

$5.122

(exc. GST)

$5.634

(inc. GST)

Units	Per unit	Per Tray*
50 - 200	$5.122	$256.10
250 +	$4.609	$230.45
*price indicative

RS Stock No.:: 179-6362
Mfr. Part No.:: CRFS-2204W
Brand:: Nidec Components

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Covering the DC 1 Ghz frequency spectrum
Gold-plated contact provides excellent reliability
Applications
Communication devices
Broadcast equipment
FA equipment

Specifications

Attribute	Value
Contact Configuration	DP3T
Mounting Type	Through Hole
Contact Current Rating	100 (Non-Switching) mA, 100 (Switching) mA
Terminal Type	PC Pin
Actuator Type	Slide
Length	10mm
Width	6mm
Depth	18.5mm
Dimensions	10 x 6 x 18.5mm
Contact Resistance	70mΩ
Voltage Rating	50V dc
Minimum Operating Temperature	-40°C
Actuator Material	Polyamide
Operating Temperature Range	-40 → +85°C
Maximum Operating Temperature	+85°C
Contact Material	Copper Alloy
